Installation and Maintenance Manual
19
D0119, Rev. F
Wiring Control Inputs
1. Test open and close before wiring the external control inputs. This makes it easier to troubleshoot if an
unexpected functionality arises. “New Generation” Smart Touch Operator inputs (after Sept. 2006) use
an LED to indicate when it is active. DC operators operating without AC require you to push and hold an
LED button to disclose input status. This button is in bottom corner near the Fire Department Open
input. [“Classic,” pre-Sept. 2006 operators LEDs are only lit when you push the Tact button. The Tact
button is located on the top left corner, near the Stop Button input on the Classic Board.]
2. All the control device inputs listed below are shown as a single input. The 2nd wire is connected to the
Common Terminal Buss on the Power Supply board. The Emergency Close and Fire Dept. Open inputs
are an exception and require a +24 Volt input. The +24 is located on the spade terminals next to the
Common Buss. See pictures on the next page.

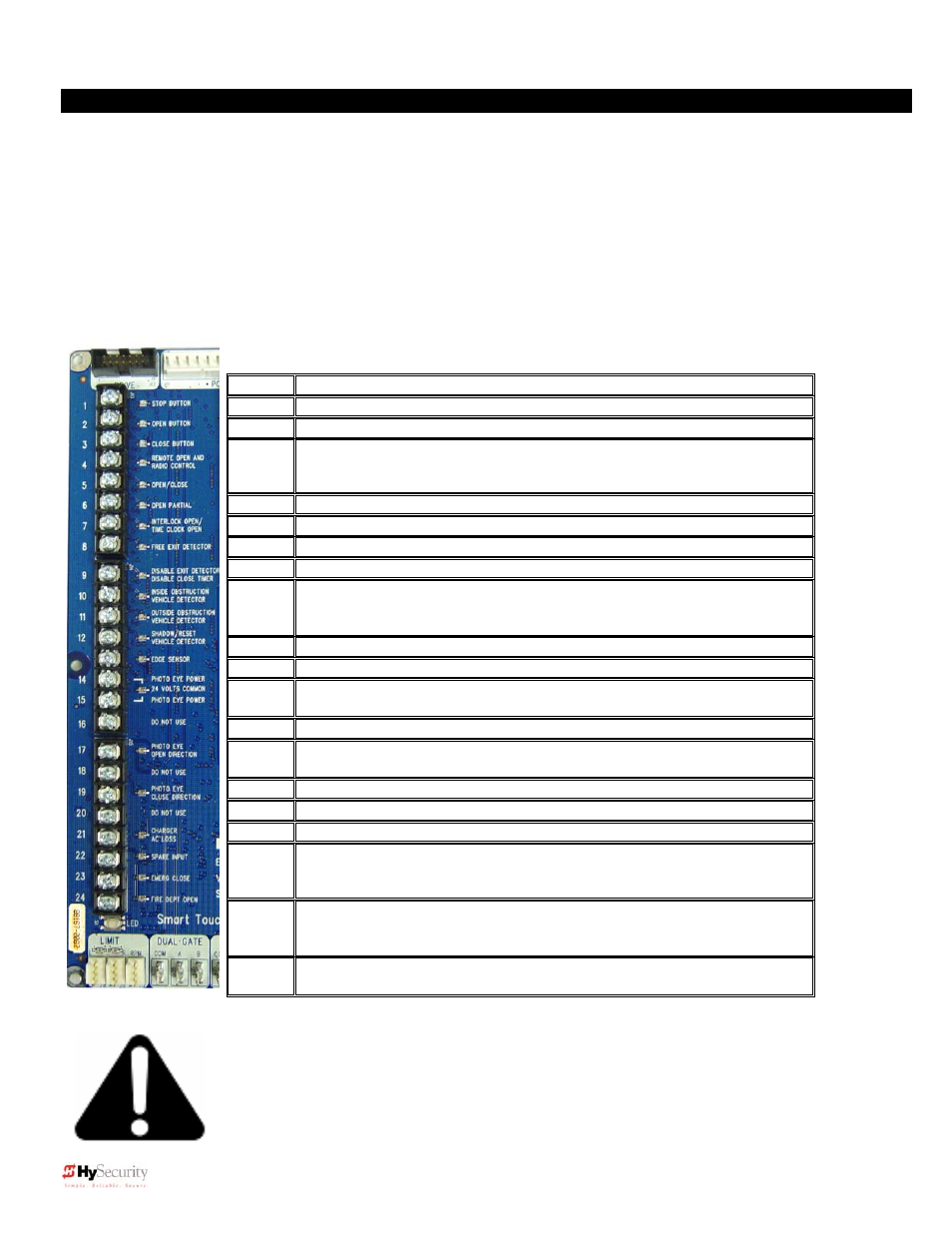

Smart Touch Controller Inputs
1. *Stop Push button N.C. input, jumper to Common if unused
2. *Open Push Button Not for radio or remote access controls
3. *Close Push button Not for radio or remote access controls
4. Remote Open & Radio Control For radio / remote open device –
Program to also Close using Smart Touch menu
5. Open/Close button Pushbutton or radio controls
6. Partial Open Installer adjustable from 7- 99 seconds
7. Open interlock input or Time clock Open Menu configurable
8. Free Exit vehicle detector
9. Disable Free Exit vehicle detector or Timer to Close
Free Exit is only disabled if Close Limit Switch is tripped. If the gate is
partially opened, the Free Exit detector will trigger the gate to open fully.
10. Inside Obstruction vehicle detector Inside reversing loop
11. Outside Obstruction vehicle detector Outside reversing loop
12. Shadow/Reset vehicle detector Shadow function used for Swing
gates only - Reset function is for Arm gates
13. Edge Sensor One input works for both travel directions
14-15. Photo eye Common Power
24V common connection for open and close photo eyes
17. Photo eye Open direction
19. Photo eye Close direction
21. Charger AC power loss Only used in DC, battery type operators
22. Spare Input Software ≤ h3.24,- non functional,
Gate Lock Interlock Input Software > h3.24, prevents start until
external gate lock releases
23. **Emergency Close Must menu enable and input +24 Volts to trigger.
Requires constant hold or maintained input. This overrides photo eyes,
gate edges & vehicle detectors.
24. **Fire Dept. Open Must menu enable and input +24 Volts to trigger.
Overrides photo eyes & gate edge.
* Do not connect an external control to terminals #1, 2 or 3, unless controls are
located in clear view of the entire gate area. Out of sight controls: use input
terminals #4, 5, 6 or 7.
**
The Emergency Close and Fire Dept. Open inputs are to be used only if access
to these controls is guarded such that there is always supervision when activated.
