Controlled Products Systems Group 222X383 - Manual (Page 28)

Installation and Maintenance Manual
20
D0119, Rev. F
Tact button. Push tact button to make active
input LEDs light up when AC is off on DC
operators.
INPUTS
1. Stop Button
2. Open Button
3. Close Button
4. Remote Open & Radio Control
5. Open / Close
6. Open Partial
7. Interlock Open / Time Clock Open
8. Free Exit Detector
9. Disable Exit Detector / Disable Close Timer
10. Inside Obstruction Vehicle Detector
11. Outside Obstruction Vehicle Detector
12. Shadow / Reset Vehicle Detector
13. Edge Sensor
14. Photo Eye Power (-) 24 Volts Common
15. Photo Eye Power (-) 24 Volts Common
16. DO NOT USE
17. Photo Eye Open Direction
18. DO NOT USE
19. Photo Eye Close Direction
20. DO NOT USE
21. Charger AC Loss
22. Gate Lock Interlock
23. Emergency Close
24. Fire Department Open
RS 485 Future Expansion (new)
Connector to
SlideWinder Drive Board
UNUSED
Clock Battery
Motor Relay
Reset & Buzzer
Connector
User Relay 1
User Relay 3
DC only
Solid State for use
with fl ashers and
other high cycle
accessories.
48V DC @ 4 amps.
User Relay 2
Master
Slave Open
Radio Gate Edge
Radio
RS 232 socket
Weigand
Future Expansion
4 - HY-5A
Vehicle
Detector
Sockets
LEDs showing active input circuits
now always enabled except for DC machines (during AC loss)
Limit Switch
Connectors
Heartbeat
LED
Power Connector
Runs software
4.xx and higher
MX000585
Power Supply Board
Common Buss (-)
24V DC Accessory
Power (+)

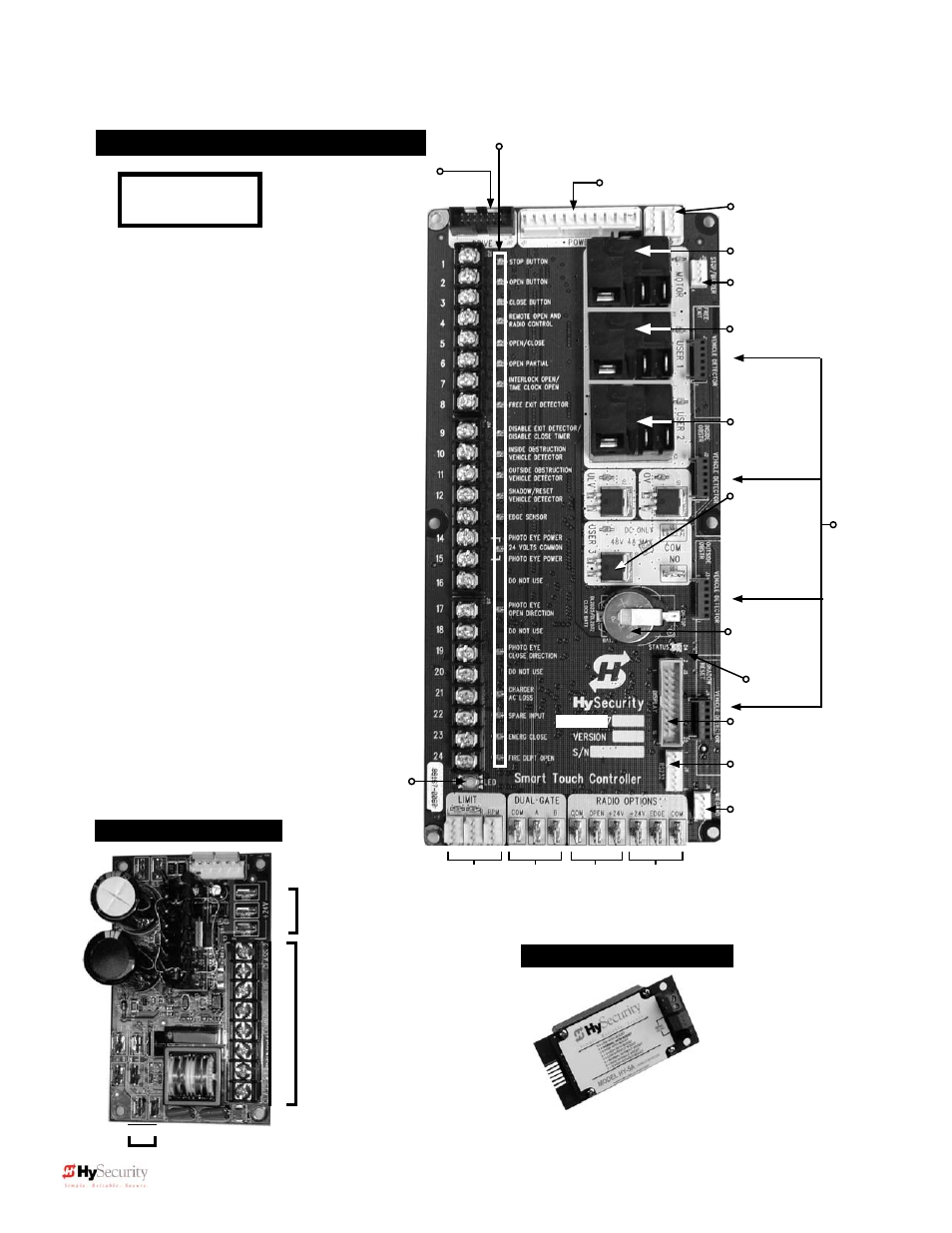

“New Generation” Smart Touch Board
Socket for
Ribbon Cable
to Display
24V AC Accessory power
HY-5A Vehicle Detector
