Installation and Maintenance Manual
8
D0119, Rev. F
Getting Started

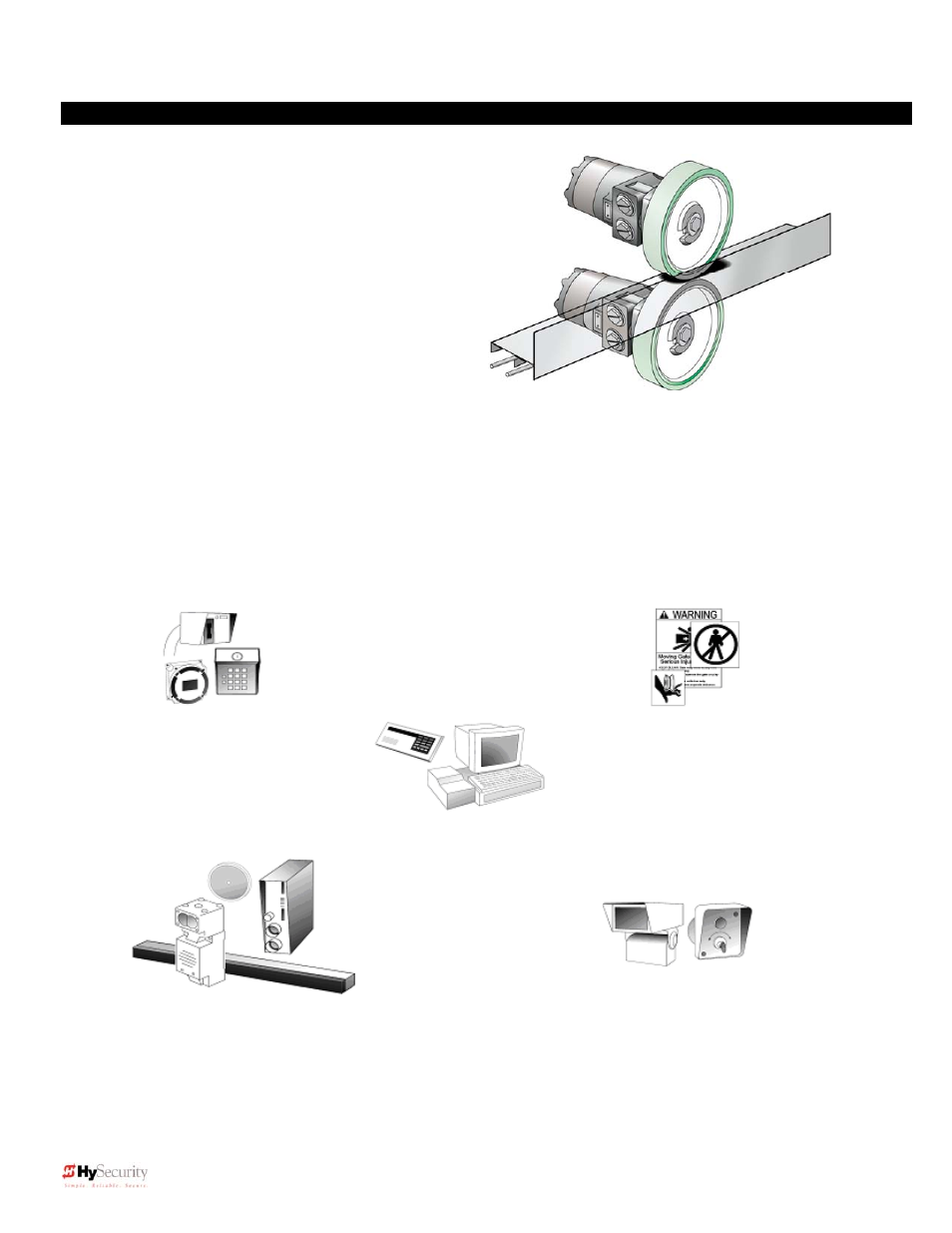

• How this hydraulic operator works
HySecurity industrial slide gate operators rotate polyurethane
treaded drive wheels which grip a rigid metal drive rail and feed it
right or left during the gate travel. The drive wheels are clamped
above and below the drive rail and are directly coupled to
powerful hydraulic motors, which can easily move large gates.
This simple yet durable drive system is one of the unique
features giving our hydraulic operators their reputation for
reliability.
• Accessory Compatibility
HySecurity’s Hydraulic Slide Operators are fully compatible with all standard access control devices and
entrapment protection devices, some of which are listed below.
• Pedestrian Entrapment Protection
Read and understand all the Important Information in Section 1, the Entrapment Protection Schematic on page
4 and the UL requirements on page 3 before beginning the installation. Be absolutely certain that the required
type and quantity of Entrapment Protection devices have been supplied and that you understand how to install
them correctly. Contact your local distributor with questions about Entrapment Protection.
Security
Key Locks
Closed Circuit Television
Gate Position Indicator
Interlock/Sally Port
Gate Status Indicator
Obstruction Sensing Devices
Inherent Sensing Device
Gate Edges
Photo Eyes
Vehicle Detectors
Advanced Access Control
Access Control Interface
Card Reader
Keypad
Telephone Entry
Input/Output
Computer Interface
RS232/485
Information
Signs
Labels
Warnings
Basic Access Control
Radio Transmitter
Long Distance Control
Pushbutton Control Station
Programmable Time Clock
Card Reader
