CognitiveTPG CRx User Manual
Page 82
78
Chapter 11: Cleaning and Preventive Maintenance

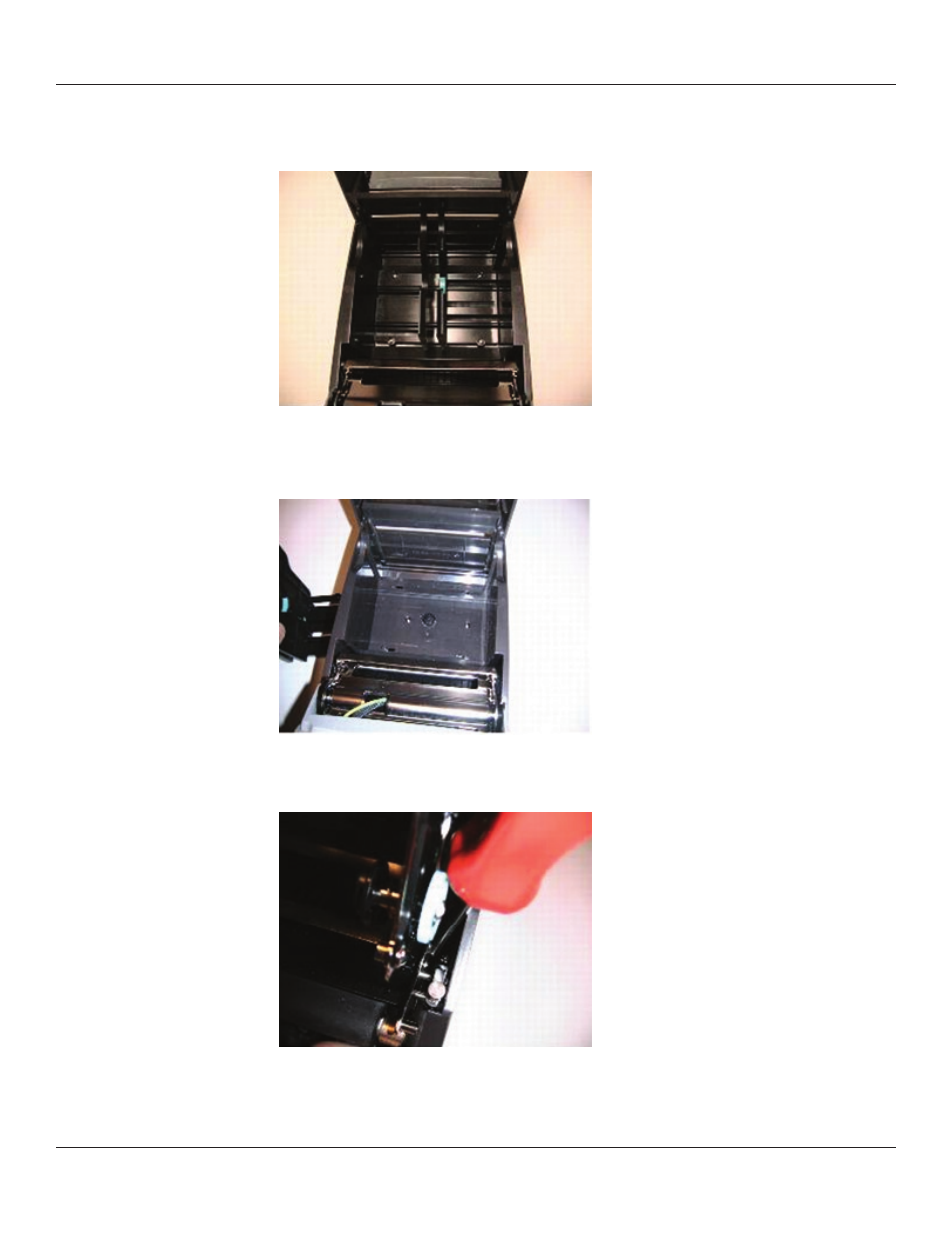

5) Remove media guides by removing the four screws holding down media guide
bottom plate.
6) Remove media guide gear and set aside. Unscrew 2 screws exposed after guides
were removed.
7) Locate and remove screw behind head down switch on right side of mechanism.
