36
Chapter 4: Using the Administrator Tool
Chapter 4: Using the Administrator Tool
Connect to the Printer
Select the connection method being used between computer and printer.
• If using serial, select the appropriate communication port and baud rate. The
C Series default serial baud rate is 9600.
• If using USB, select the appropriate printer driver.
NOTE: REFER TO CHAPTER 3: SOFTWARE INSTALLATION FOR MORE DETAILS
• If using Network, select the correct IP address.
NOTE: REFER TO CHAPTER 6: NETWORK PRINTING AND CHAPTER 2: CONNECTING
DATA CABLES TO THE PRINTER FOR MORE DETAILS

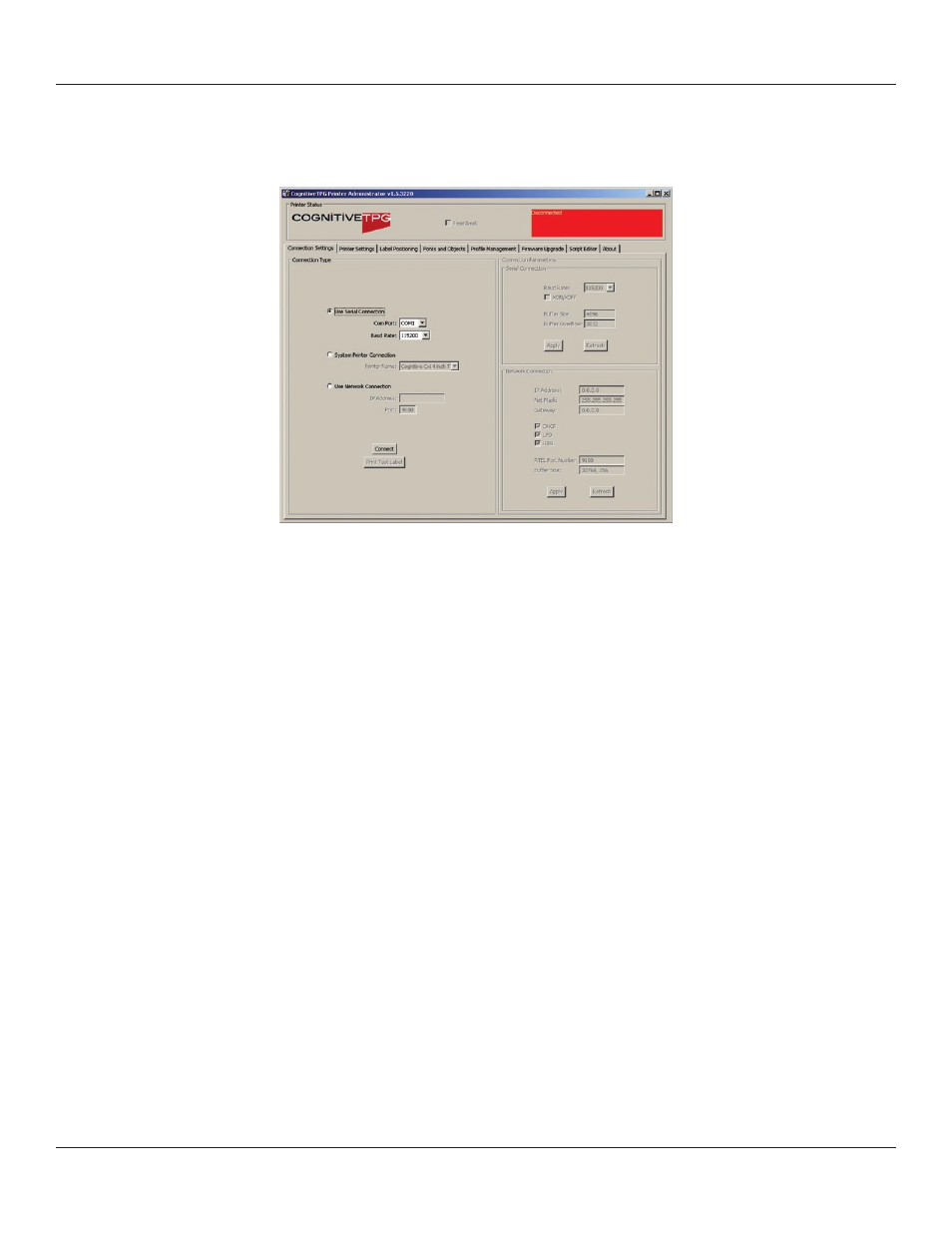

Once connected, the software will display the connection method in green with a
“Connected” message as shown below. On the right side of the window, the printer’s
settings will be displayed.
Next, print a self test label by selecting the “Print Self-Test Label” button located in the
lower right of the window. This will verify connection to the printer.
