19
Chapter 2: Getting Started
NOTE: IF THE PRINTHEAD MECHANISM LATCHES, A CLICKING NOISE WILL SOUND. IF
PRINTHEAD MECHANISM IS LATCHED BY MISTAKE, PUSH UP THE BLACK PRINTHEAD
LATCHES TO RELEASE THE PRINTHEAD MECHANISM AS SHOWN IN FIGURE 2-24.
Next, install the ribbon take up roll. Examine the ends of the ribbon take up core and
notice the notches on the ribbon core. These notches fit into the printer. Refer to Figure
2-32 for clear pictures of the notches. Lift the ribbon take up roll as shown in the figures
below.

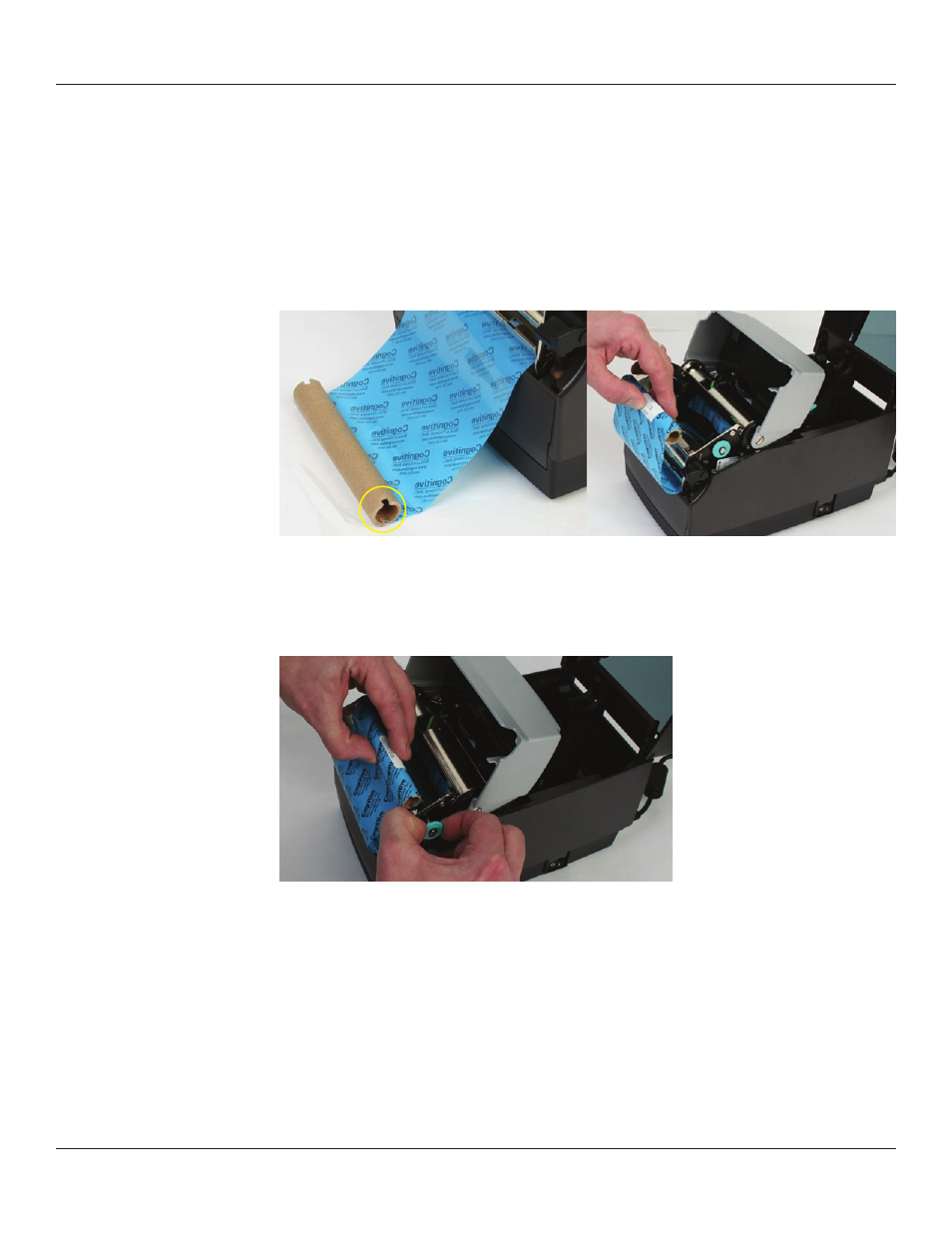

Figure 2-32. Take up Roll Notches and Loading the Take Up Roll
Pull gently on the green take up spindle to insert the ribbon take up roll into place. Line
up the notches on the ribbon take up core with the printer take up spindle notches to
secure the take up roll into place.
Figure 2-33. Pulling the Take Up Spindle Out to Insert Take Up Roll
Place the ribbon take up roll into position as shown in Figure 2-34. Once the ribbon feels
secure, gently push and rotate the green take up spindle clockwise to make sure the
ribbon take up core is engaged with the notches on the printer.
