Chapter 2: Getting Started
Understanding the Control Panel Buttons and LCD (Cxi Only)
When the printer is powered on, the LCD displays COGNITIVE CXI. After approximately 2
seconds, the LCD displays COGNITIVE. This is an indication that the menu is at its highest
level.
From this menu level, the LEFT button displays the current status of the printer; either a
READY condition, or the most recent error encountered.
To begin navigation through the menu, press the RIGHT button to enter the MAIN MENU.
Pressing the UP/DOWN buttons and the ENTER button allows movement throughout
the menu tree. Pressing the ENTER button selects a menu item, allowing navigation
deeper into that menu. At any time, the LEFT button may be pressed to return to the
previous menu level, or to escape without making a selection. Repeatedly pressing the
LEFT button returns the user to the highest menu level.
Summary of the keypad button functions:

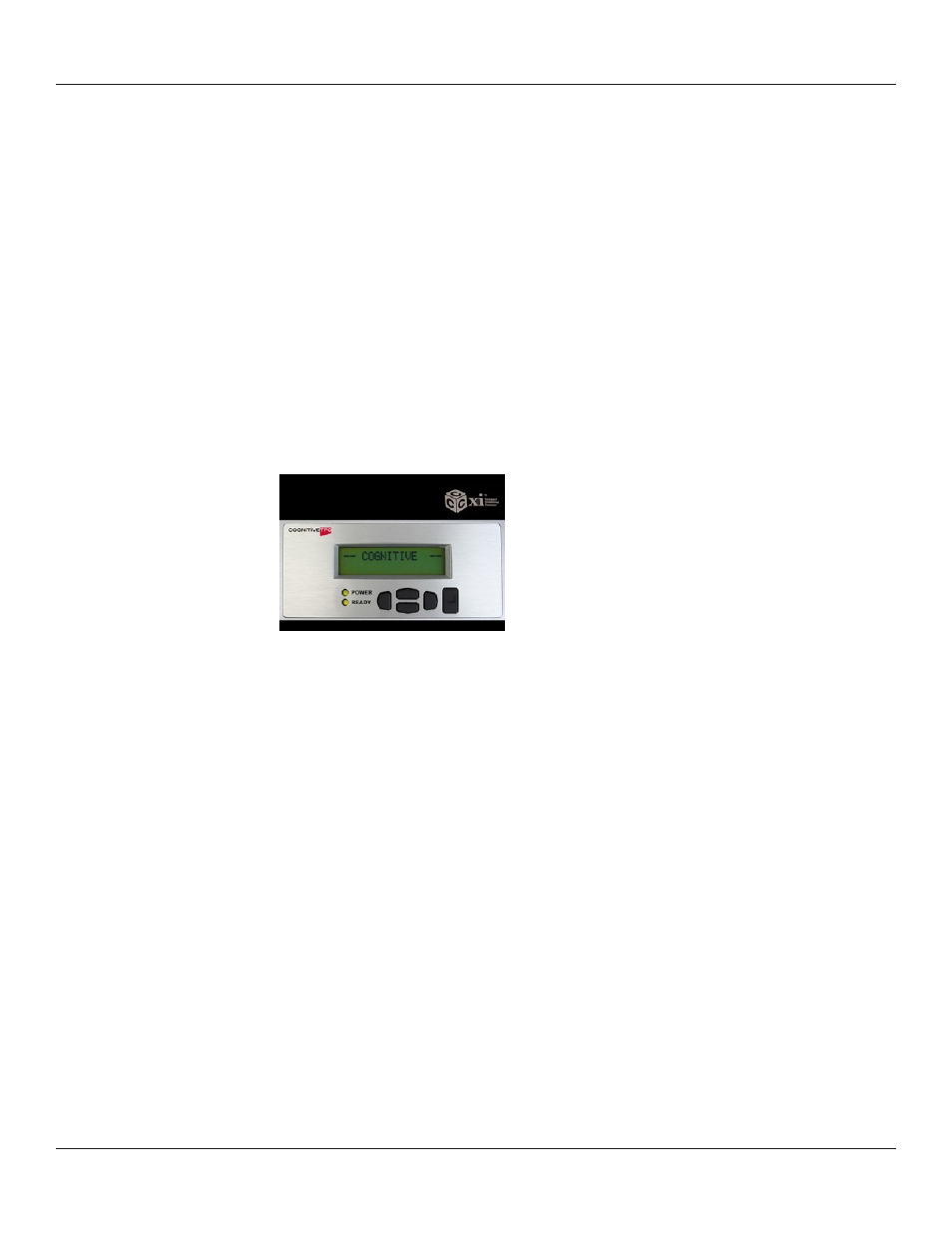

Figure 2-10. Cxi Printer User Interface Menu Buttons
LEFT button (B): Press the LEFT button to display the current printer status. From within
the menu, pressing the LEFT button returns to the previous menu level.
UP (A) and DOWN (C) buttons: Allows menu navigation up and down through the
menu tree, and allows the user to increase or decrease numeric values in some menu
items.
RIGHT button (D): Allows the user to enter the menu system, and controls horizontal
movement of the menu cursor for certain menu items.
ENTER button (E): In the menu mode, selects a menu item for further navigation. ENTER
also selects a value in a menu item. The LCD displays the confirmation message VALUE
HAS BEEN SET�
At the highest menu level, when COGNITIVE is displayed on the LCD, or when the printer
is ready to print, this button acts as a FORM FEED.
When the ENTER button is pressed, a single label is fed if the printer is in an indexing
mode. When the button is pressed continuously for longer than two seconds, the printer
feeds labels until the button is released. When indexing is disabled, the printer feeds
media continuously when the ENTER button is pressed.
B C
A D E
