31
Chapter 2: Getting Started

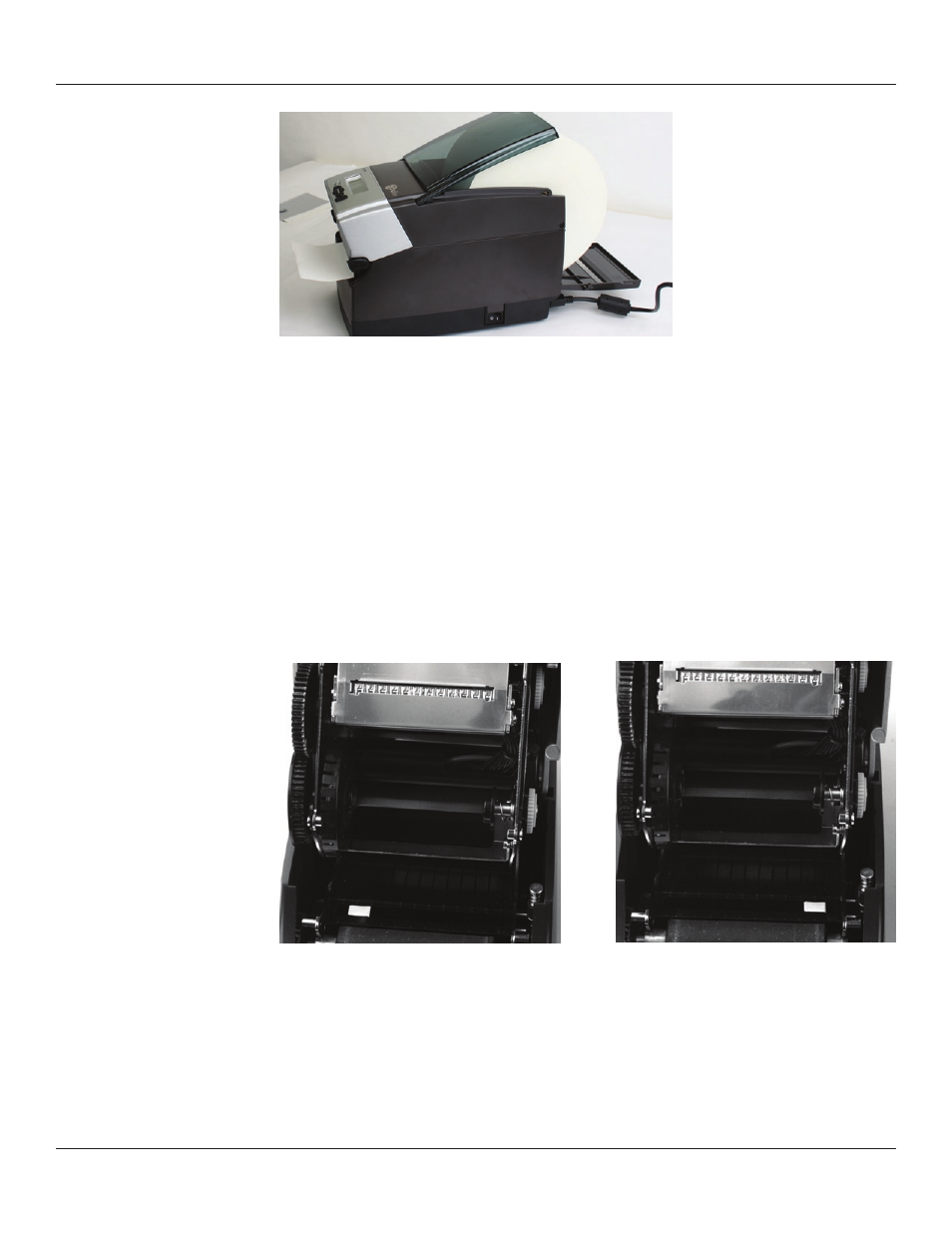

Figure 2-61. Closing the Top Cover
User Adjustable Sensor
The C Series printers have an adjustable index sensor system. By moving the reflective
sensor laterally, shown in the next picture, the sensor system can accommodate a wide
range of media index mark positions. The sensor has a spring detent feature. To adjust
it to the position you require, simply slide it in its channel until it aligns with the feature
you are trying to index.
Gap Mode
If you have a 2” wide printer, then the gap sensor is adjustable the entire width of the
printer media path. See both pictures below.
2” Printer with extreme settings of gap sensor positions. Sensor is highlighted with white
to better show position.
If you have a 4” wide printer, then the gap sensor will be effectively adjustable for the left
half of the media path as shown in the pictures below.
