Chapter 2: Getting Started
Chapter 2: Getting Started
First, take a tour around the printer to understand its parts and functions.
Outside the Printer

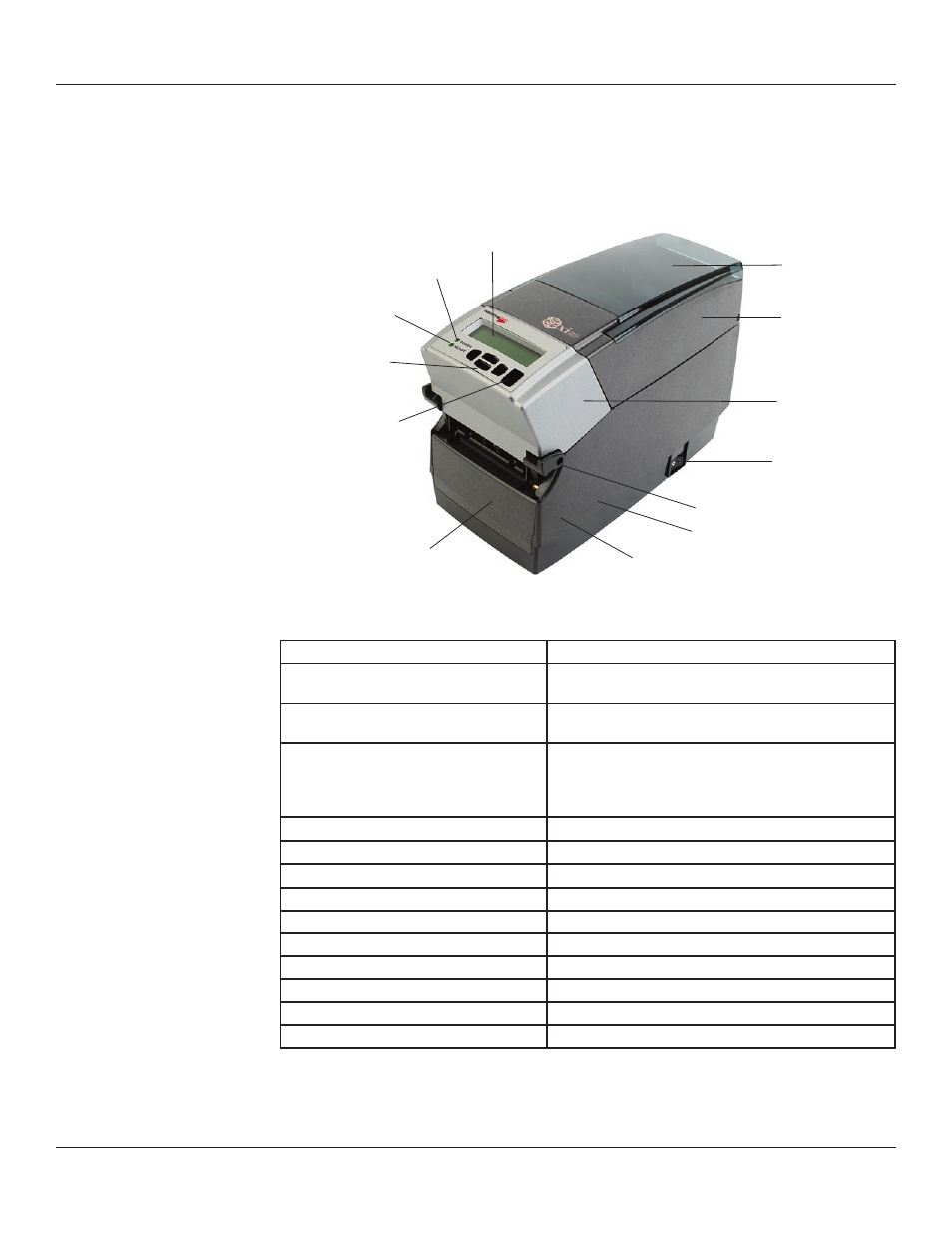

Figure 2-1. C Series Top and Front View
Device Use
A – LCD control panel (Cxi only) Back-lit, two-line, 16-character display with full menus to
change setup options
B – POWER LED Shows power status
GREEN – Power switch is turned on
C – READY LED Shows printer status
GREEN – Printer ready to accept data
RED – Printer error, empty media roll, or paused operation
during batch mode processing
D – User interface menu buttons (Cxi only) Controls user interface
E – FEED/Enter button Advances print media/Enters user menu commands
F– Front bezel Covers the front of the printer
G – Lower case Covers the sides of the printer
H – Case base Covers the base of the printer
I – High-lift printhead latches Pushes upward to release the printhead
J – ON/OFF switch Controls printer power
K – Cast metal user interface cover Contains user interface buttons
L – Dust cover Protects print media
M – Hinged media window Contains a large clear window to view media
