4
Chapter 2: Getting Started

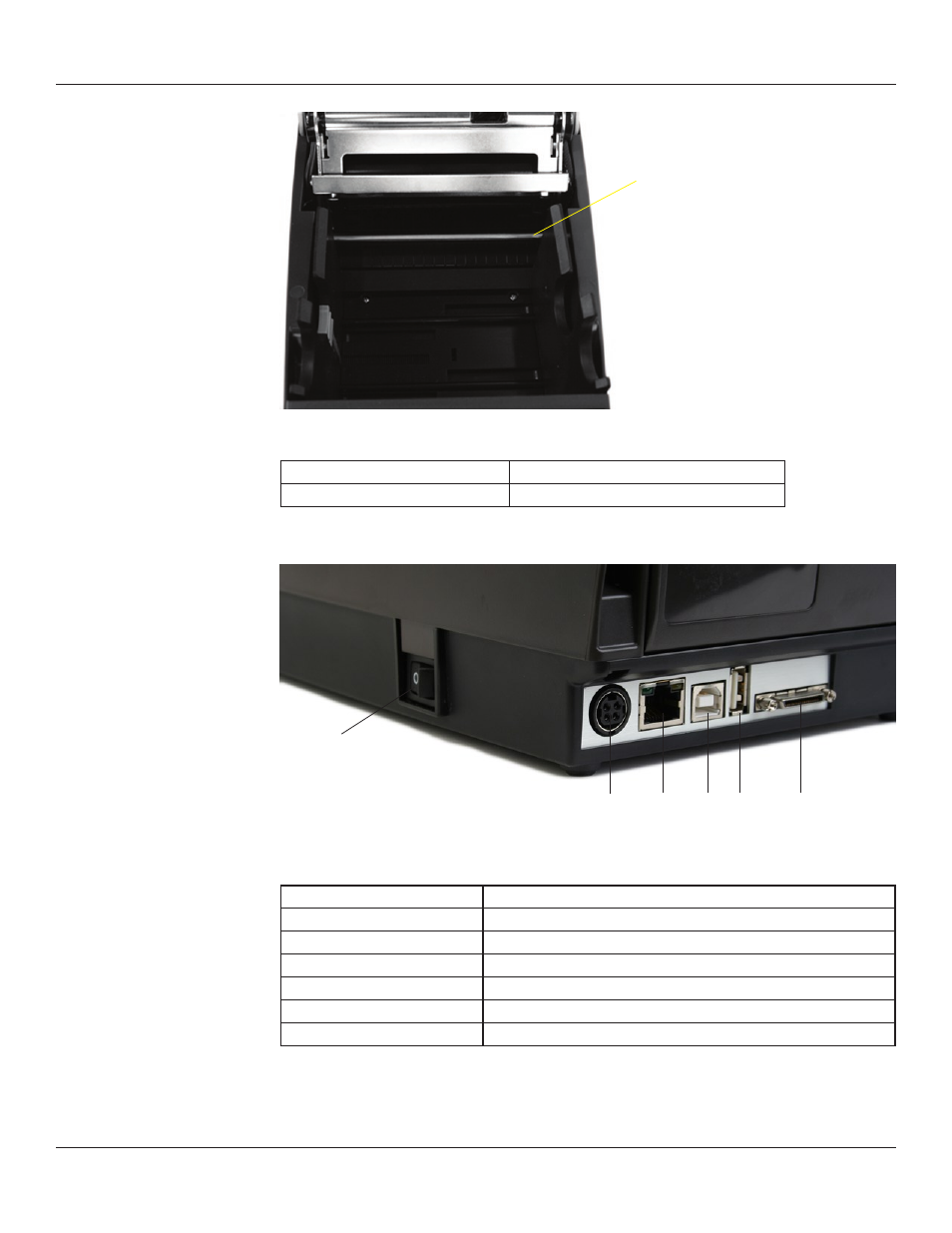

Figure 2-4. C Series Top View of Media Guide from Behind Printer
Device Use
A – Media guide (silver bar) Guides the labels through the printer
Connection Ports and Power Connector
Figure 2-5. C Series Connections and Power (Back View)
Connector Use
A – ON/OFF switch Controls printer power
B – Power connector Connects to power supply
C – Ethernet connector (RJ-45) Ethernet communications port for network connectivity
D – USB-B device port USB communications port
E – USB-A host port USB communications port
F – Serial/Parallel port Serial/parallel data communications port
A
A
B C D E F
