CognitiveTPG CRx User Manual
Page 26
22
Chapter 2: Getting Started

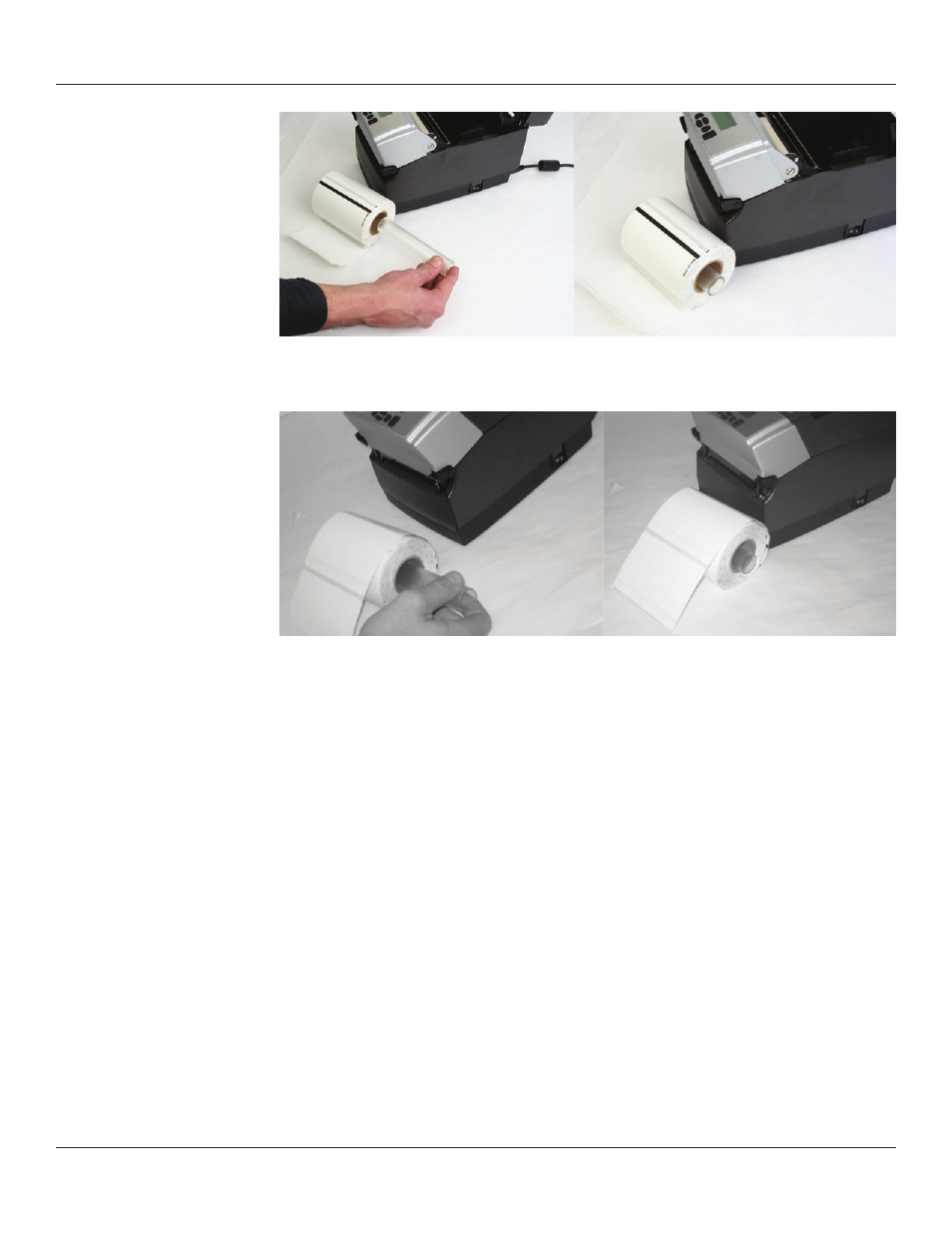

Figure 2-39a. Inserting the Spindle Into the CognitiveTPG Approved Inward Wound
Media
Figure 2-39b. Inserting the Spindle into Outward Wound Media
NOTE: FOR MORE INFORMATION REGARDING CognitiveTPG APPROVED MEDIA PLEASE
CONTACT A LOCAL RESELLER OR CUSTOMER SERVICE AT +1.303.586.8340 OR TOLL FREE
AT +1.800.732.8950.
Prior to loading media, take a moment to review operation of the media guides. The
guides are spring loaded in order to provide proper media control during printing. The
right media guide has a green locking tab as shown in Figure 2-40, that holds the guides
in any position. This is useful if the same width media is often used. Once the guide is
set to the width of the media, it can be locked in place and future loading of media is
simplified.
