Chapter 2: Getting Started

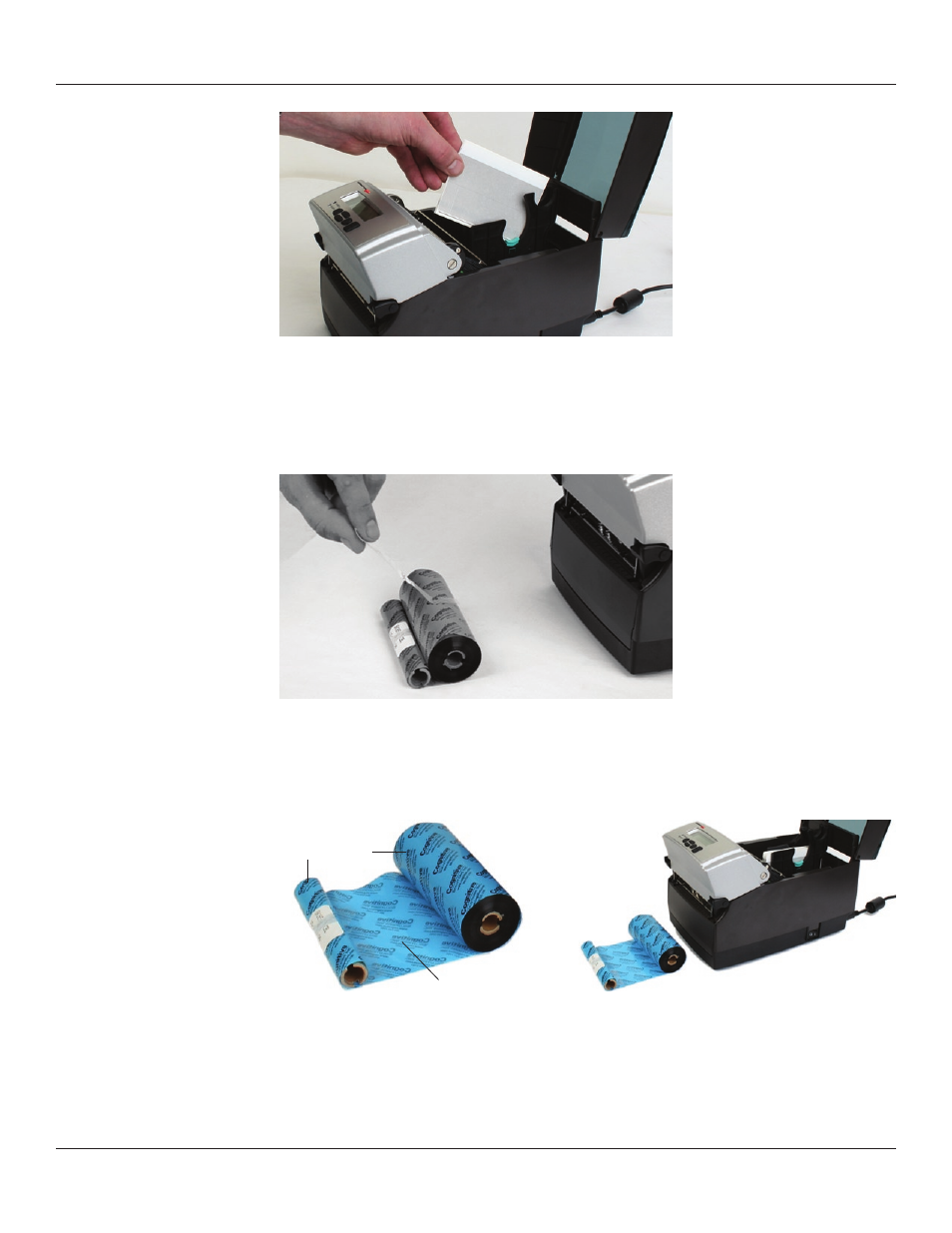

Figure 2-21. Removing the Test Sample from the Printer
Place sample ribbon provided with printer in front of printer. Place large media end
towards printer with small take up roll end facing away from printer as shown in Fig.
2-22 below. Gently remove tape from ribbon to prepare for loading.
Figure 2-22. Removing Tape Off of the Ribbon
Once the tape is removed, discard the tape, and spread the ribbon out so the text on
the leader is facing down, as shown in Figure 2-23 below. Make sure the ribbon does
not roll off the table when setting it down.
Figure 2-23. Ribbon Layout Before Loading Into the Printer
Next, unlatch the printhead mechanism to load the ribbon into the printer. To do this,
pull up on the black latches with both hands. Refer to the figure below to release the
printhead mechanism.
CognitiveTPG Text is Readable
CognitiveTPG Text Down Facing Table
