Using a suitable open-end wrench, counter the wrench flat on the pipe.
→
Place suitable open-end wrench on the hexagon of the actuator.
WARNING!
Risk of injury from discharge of medium and pressure!
If the direction of rotation is wrong, the body interface may become detached.
• Rotate the actuator module counter-clockwise only (see “Figure 18”)!
→
Rotate counter-clockwise (as seen from below) to bring the actuator module into the required position.
Open-end wrench
Series 23xx

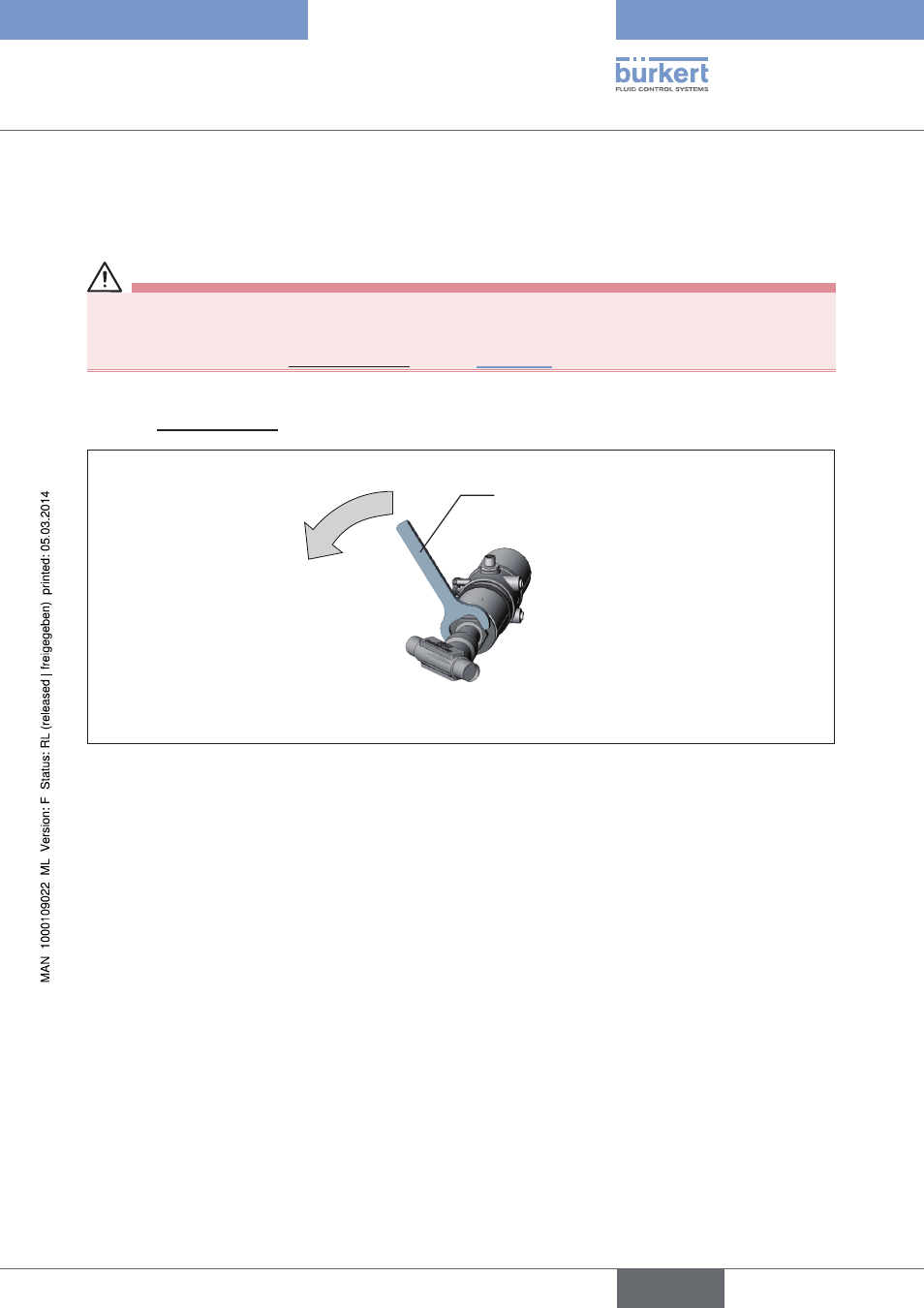

Figure 18: Rotating open-end wrench
