Installation
8.3. Rotating the actuator module for process valves
belonging to series 2300 and 2301
The actuator module (positioner and actuator) can be rotated for straight seat valves and angle seat valves
belonging to series 2300 and 2301 only!
The position of the connections can be aligned steplessly by rotating the actuator module (positioner and actuator)
through 360°.
Only the entire actuator module can be rotated. The positioner cannot be rotated contrary to the actuator.
The process valve must be in the open position for alignment of the actuator module!
DANGER!
Risk of injury from high pressure!
• Before dismounting pneumatic lines and valves, turn off the pressure and vent the lines.
Procedure:
→
Clamp valve body in a holding device (only required if the process valve has not yet been installed).
→
Control function A: Open process valve.
Actuator module
Hexagon
Nipple
Series 23xx

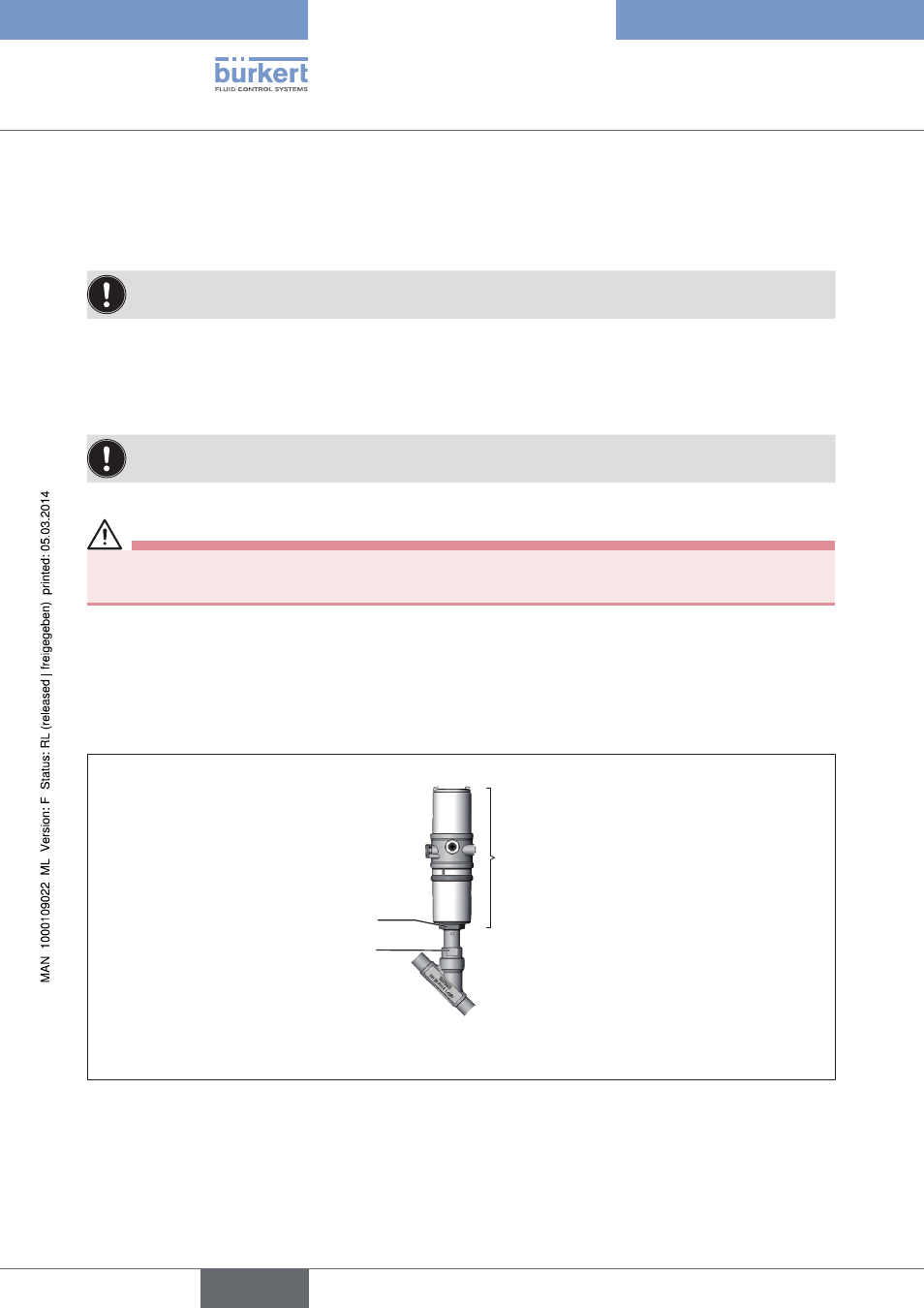

Figure 17: Rotating the actuator module
