26
Controlanddisplayelements
7.3. Configuration of the keys
The configuration of the 2 keys on the board varies depending on the operating status (AUTOMATIC / MANUAL).
The description of the operating statuses (AUTOMATIC / MANUAL) can be found in the chapter entitled “7.1.
Operating status”.
O
N 1
2
3
4
Key 2
Key 1

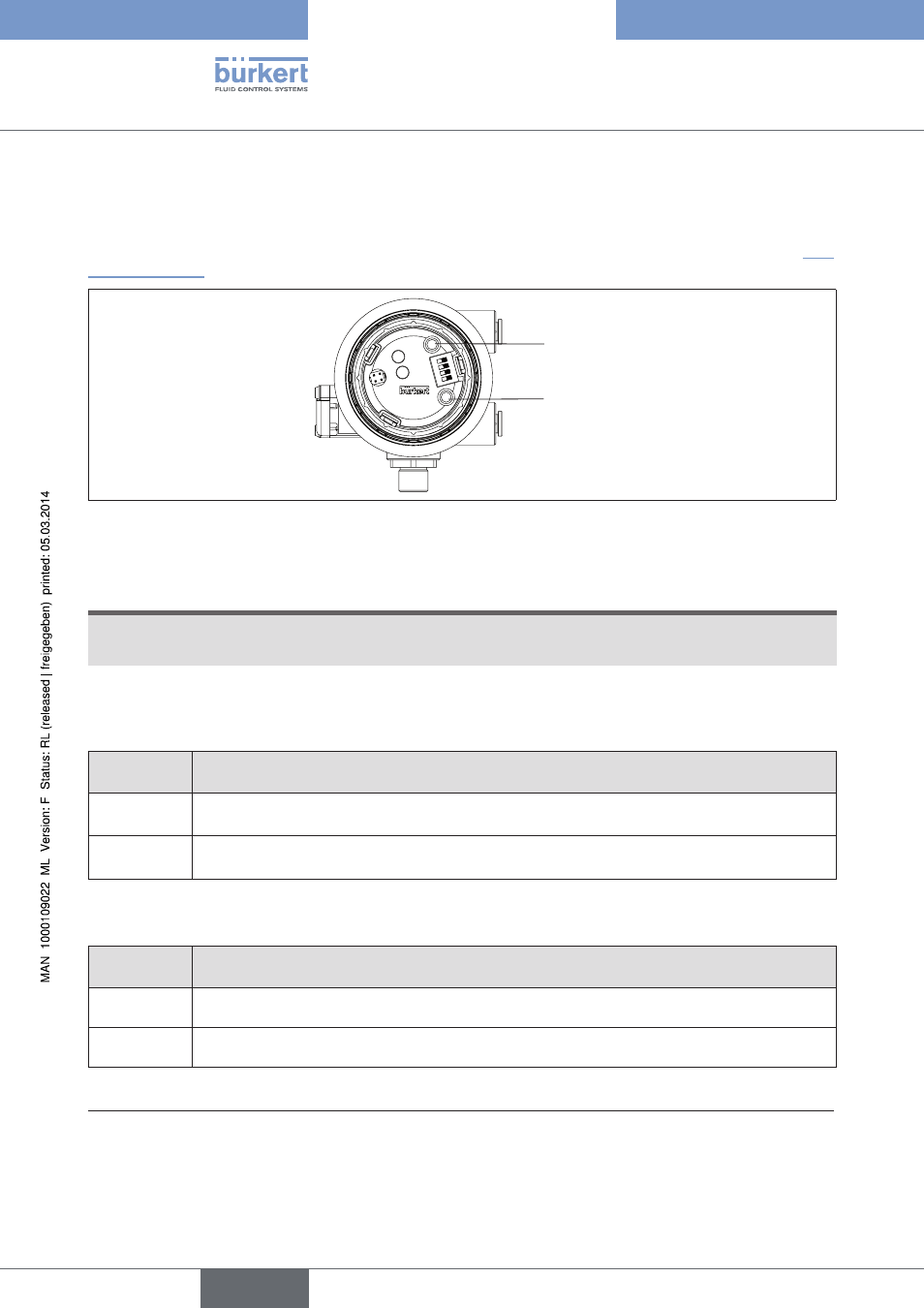

Figure 10: Description of the keys
→
To operate the keys unscrew the transparent cap.
NOTE!
Damage or malfunction due to penetration of dirt and humidity!
• To observe protection class IP65 / IP67, screw the transparent cap in all the way.
→
Close the device (assembly tool: 674078 7) ).
MANUAL operating status (DIP switch 4 set to ON):
Key Function
1 Aerate 8)
(manually open / close the actuator) 9)
2 Deaerate 8)
(manually open / close the actuator) 9)
Table 7: Configuration of the keys for MANUAL operating status
AUTOMATIC operating status (DIP switch 4 set to OFF):
Key Function
1 Press for 5 s to start the X.TUNE function
2 -
Table 8: Configuration of the keys for AUTOMATIC operating status
7)
The assembly tool (674078) is available from your Bürkert sales office.
8)
No function if the binary input was activated with the “Manual/Auto change-over” via the communications
software.
9)
depending on the operating principle of the actuator.
english
Type 8696
