Installation
Guide rail
Puck holder
Guide rail
Puck holder
Supports

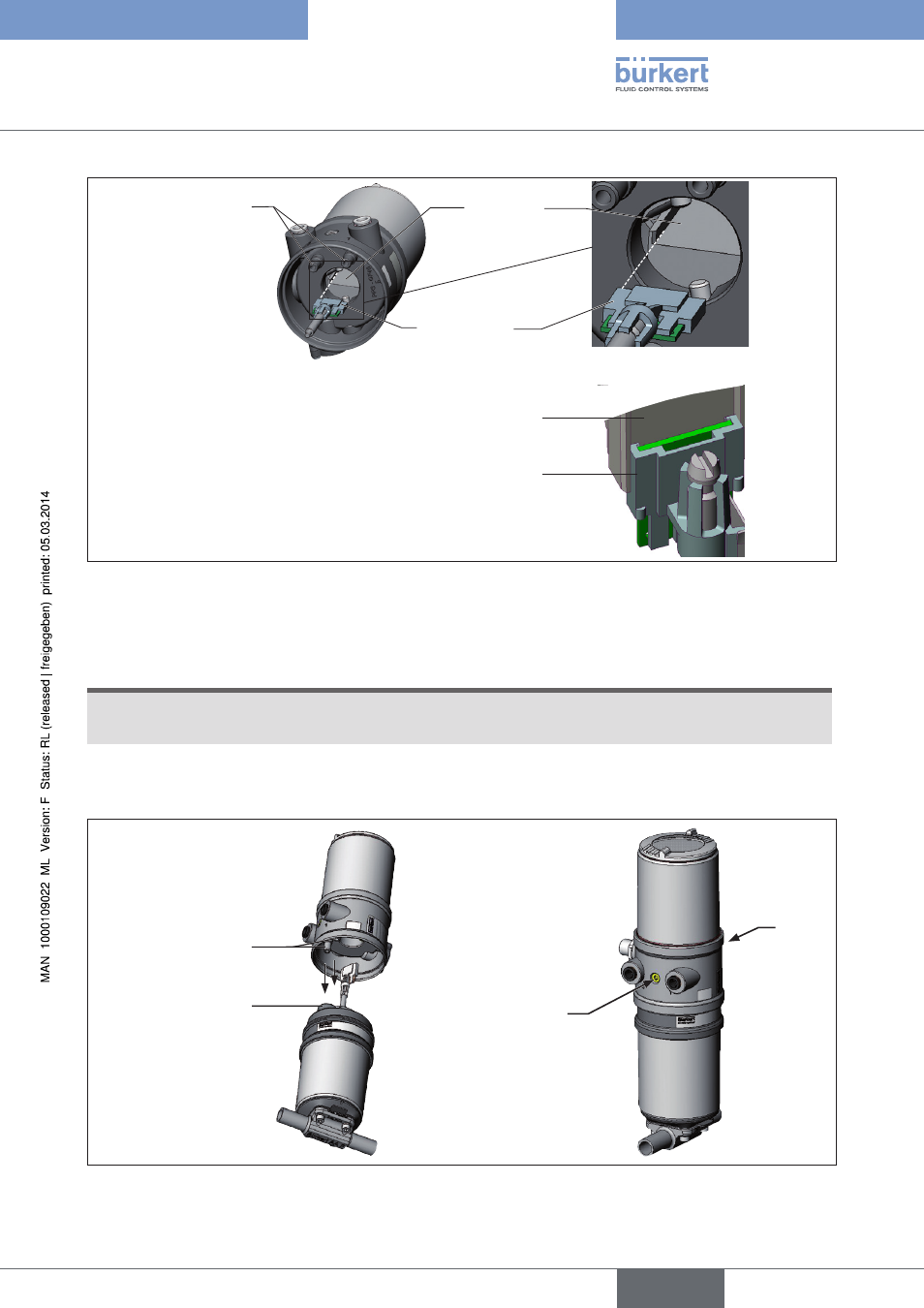

Figure 15: Aligning the puck holder
→
Push the positioner, without turning it, onto the actuator until no gap is visible on the form seal.
NOTE!
Too high torque when screwing in the fastening screw does not ensure protection class IP65 / IP67!
• The fastening screws may be tightened to a maximum torque of 0.5 Nm only.
→
Attach the positioner to the actuator using the two side fastening screws. In doing so, tighten the screws only
hand-tight (max. torque: 0.5 Nm).
Supports
Pilot air ports
(actuator)
Fastening screws
max. 0.5 Nm
Figure 16: Installation of the positioner
