Brooks, Mf series – Brooks Instrument Mfi Series User Manual
Page 25
2-7
Brooks
®
Mf Series
Section 2 Installation
Installation and Operation Manual
X-TMF-Mfi-Mfx-eng
Part Number: 541B074AAG
August, 2009

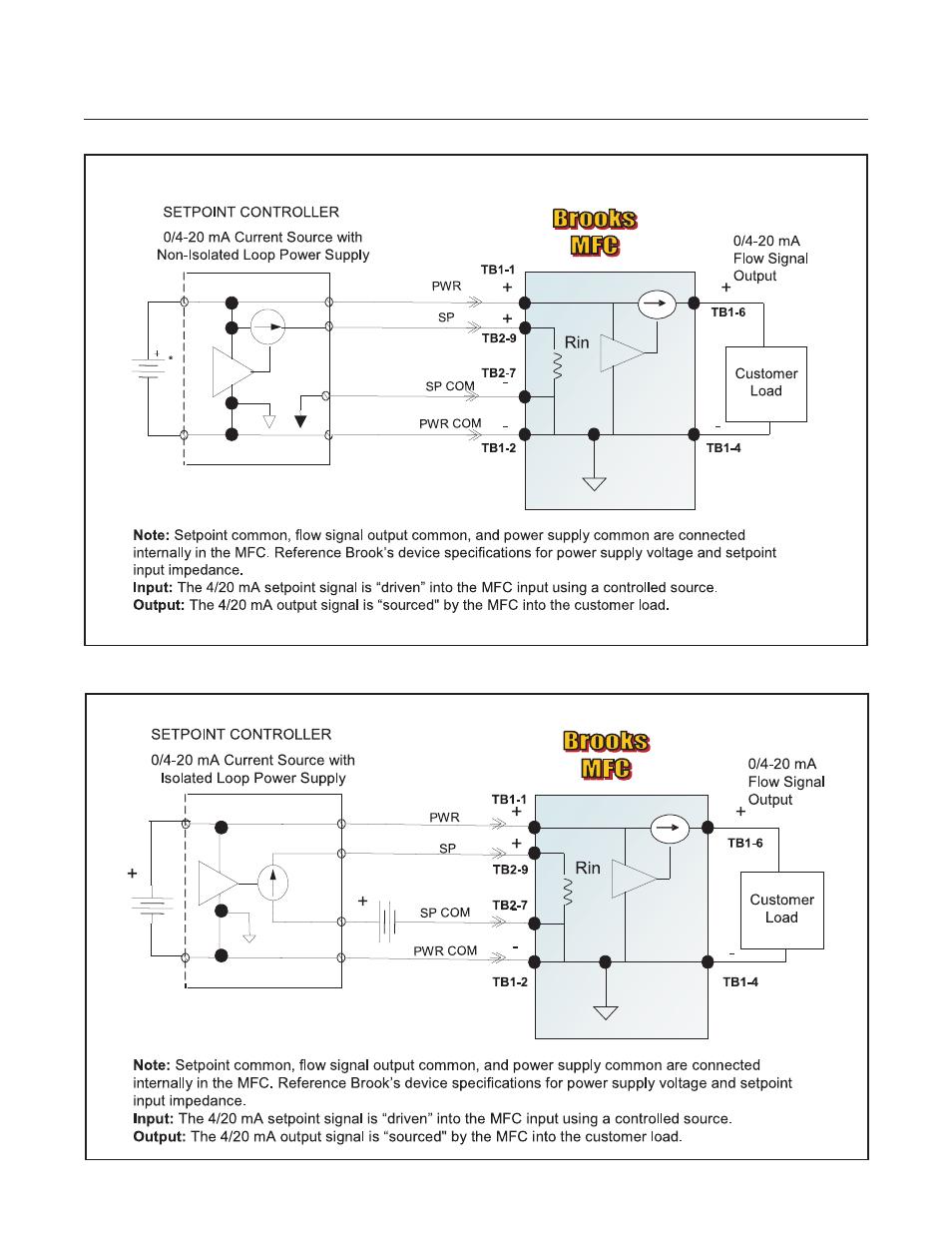

Figure 2-2 Recommended I/O Wiring Configuration for Current Signals (Non-Isolated Power Supply)
Figure 2-3 Recommended I/O Wiring Configuration for Current Signals (Isolated Power Supply)
