1-10
Brooks ® Mf Series
Section 1 Introduction Installation and Operation Manual
X-TMF-Mfi-Mfx-MFC-eng
Part Number: 541B074AAG
August, 2009

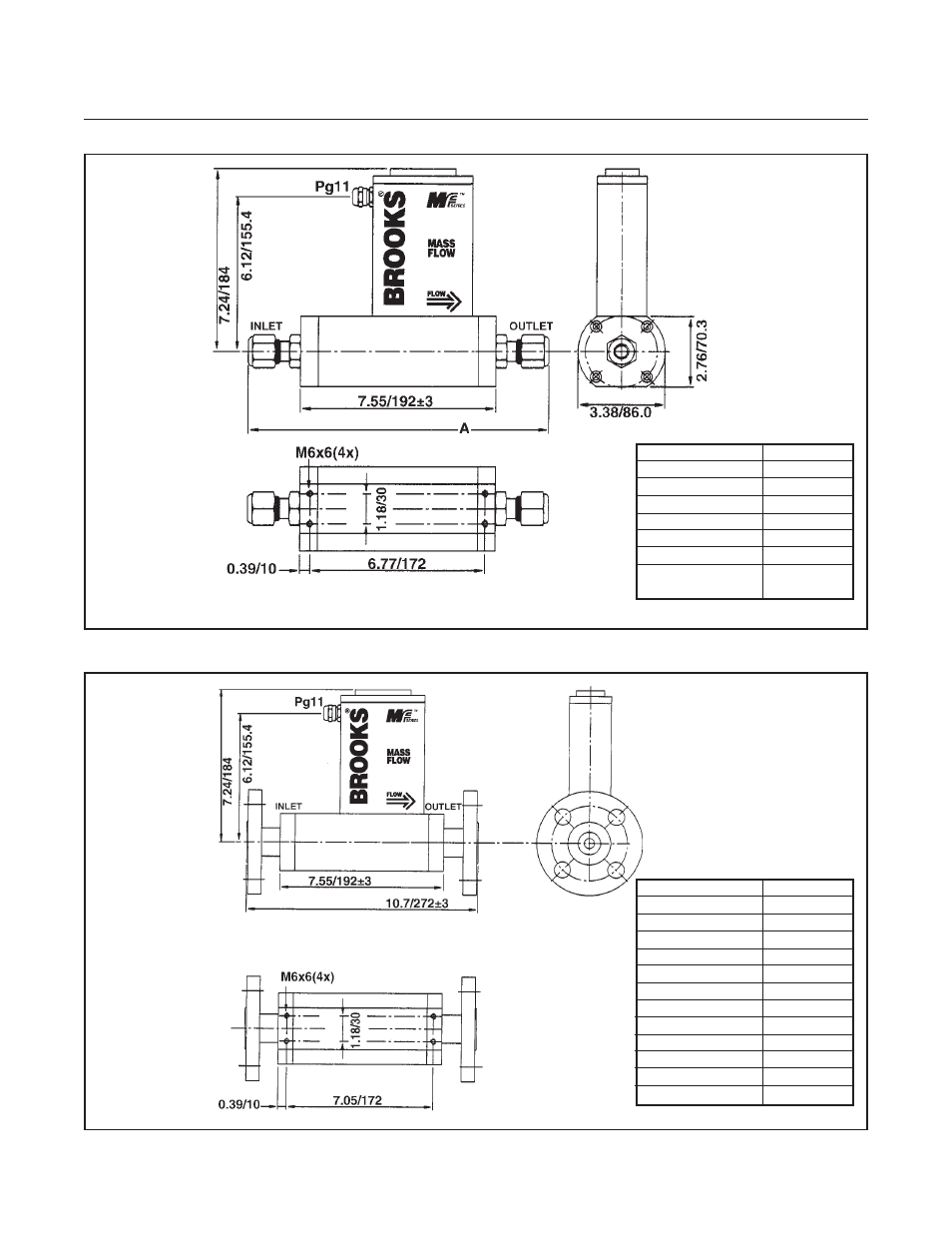

Figure 1-11 Model Mf63 Meter Dimensions
Figure 1-12 Model Mf63 Meter with Flange Dimensions
Connections "A" Dim.
1/2" Tube Compr. 10.23/260
3/4" Tube Compr. 10.23/260
1" Tube Compr. 10.59/269
1/2" VCO 9.13/232
3/4" VCO 9.84/250
1/2" VCR 9.44/240
0.5", 1", 1.5" NPT
or 1-1/16" - 12
7.55/192
Dimensions in inches/mm
Flange Class
DIN DN15 PN 40
DIN DN25 PN 40
DIN DN40 PN 40
DIN DN50 PN 40
ANSI 0.5" 150 LBS
ANSI 0.5" 300 LBS
ANSI 1" 150 LBS
ANSI 1" 300 LBS
ANSI 1.5" 150 LBS
ANSI 1.5" 300 LBS
ANSI 2" 150 LBS
ANSI 2" 300 LBS
Dimensions in inches/mm
