Rev. 8/02 -4. 13- TFXM
During the installation of UltraLink, a file called DatLog was
installed and its icon will appear on the Desktop of the computer.

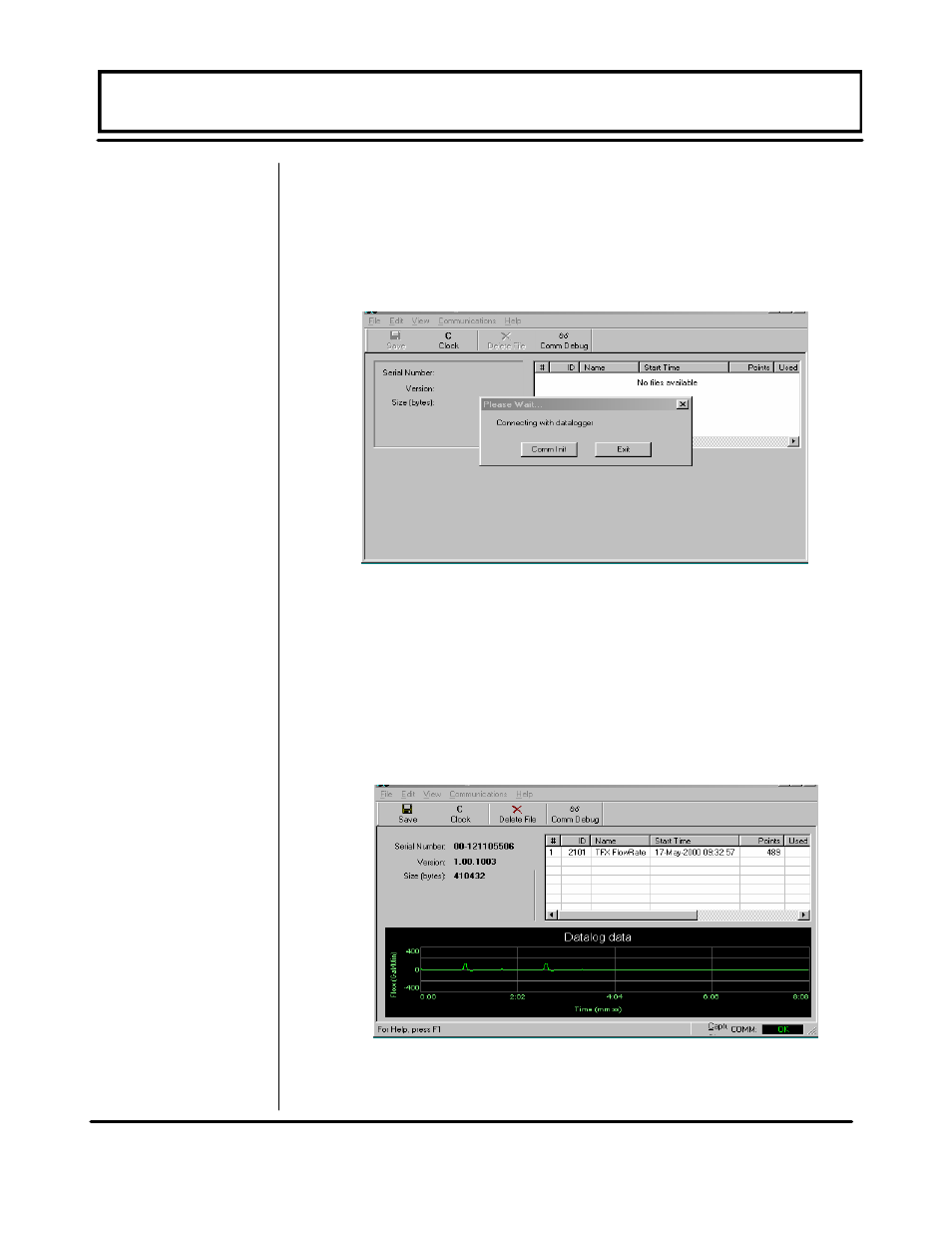

Click on the icon to start the utility. The screen shown in Figure
4.11 will appear as the computer is attempting to establish
communications with the logger module.
Connect the logger to the terminal strip (see Fig. 1.4). After a few
moments, the Please Wait window will disappear and a green OK
will appear in the lower right-hand corner of the window. After
communications are established (and the OK is displayed) the
utility will scan the logger for all existing files. The scanning of the
SOFTWARE UTILITIES
Figure 4.11
Data Logger Initialization
Figure 4.12
Data Logger Upload
Uploading Data
from the Logger
