Rev. 8/02
- 2.7 - TFXM
The TFXM can be configured through the keypad interface or
by using the UltraLink Windows® software utility. Of the two
methods of configuration, the UltraLink software utility provides
more advanced features and offers the abililty to store and
transfer meter configurations between TFXM meters.
The following “Soft Key” menu items will be displayed immedi-
ately above the two keys located in the lower corners of the
Graphics Display. See Figure 2.4.
?? The (soft)MENU key is pressed from RUN mode to enter
PROGRAM mode. The (soft)EXIT key is pressed in
PROGRAM mode to exit configuration parameters and
menus. If changes to any configuration parameters have
been made, the user will be prompted with a SAVE? (soft)
YES or (soft)NO when returning to RUN mode. If no
changes have been made, the user will not be prompted to
SAVE.
Keypad
PART 2 - TRANSDUCER POSITIONING

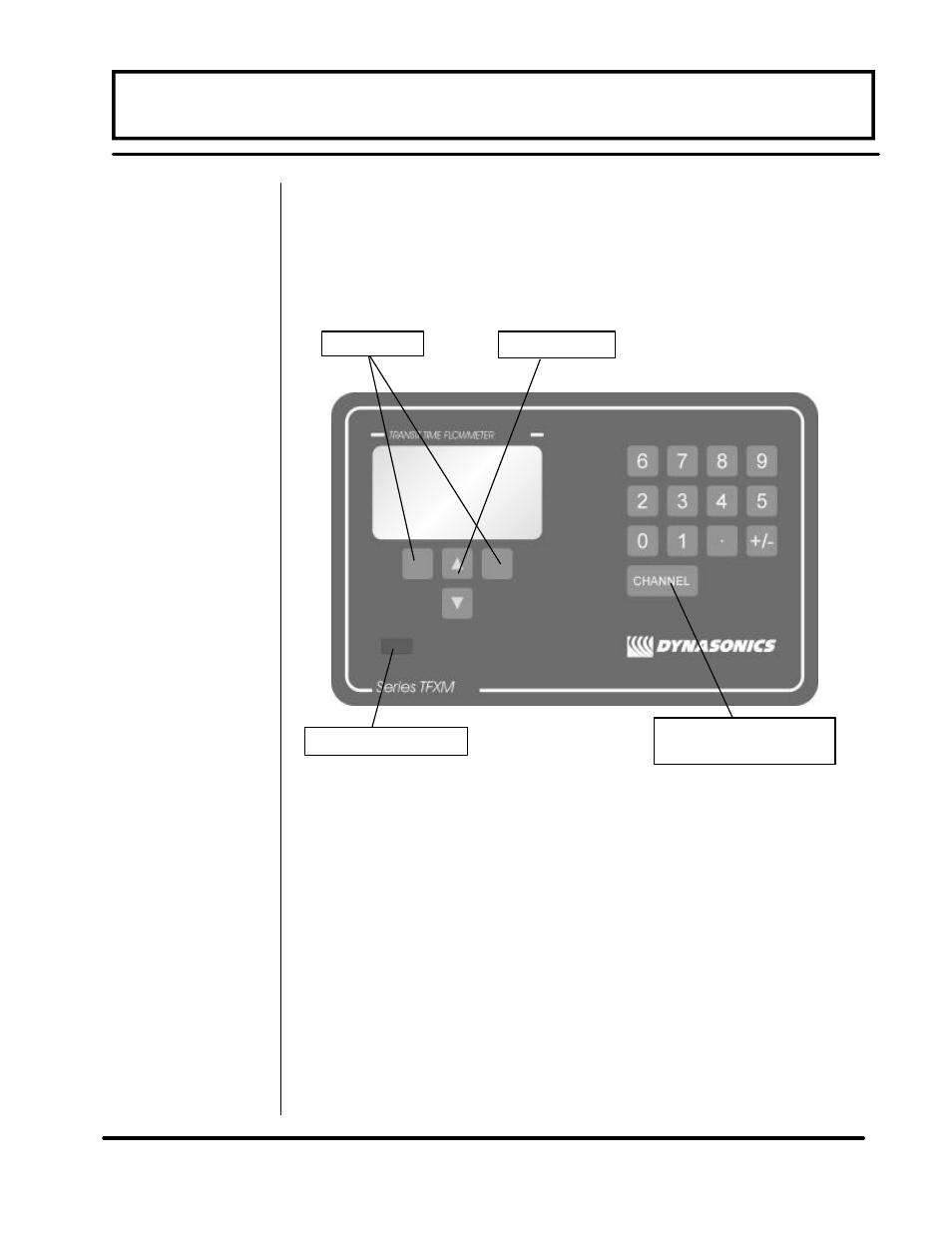

Figure 2.4
Keypad Description
SOFT KEYS
INFRARED WINDOW
MEASUREMENT
CHANNEL SELECTION
ARROW KEYS
