Appendix G – Barcode Details
Class Series Programmer’s Manual
214
Syntax for the GS1 DataBar Expanded bar code (spaces shown for readability):
a W1 k c d eee ffff gggg h i j m nn p…p | q…q
Where:
Field
Valid Inputs
Meaning
a
1,2,3, and 4
Rotation
W1
W1
Fixed value, extended bar code set
k
k
Selects GS1 DataBar bar code
c
1 to 9, A to Z, and a to z Wide bar ratio, default = 2
d
1 to 9, A to Z, and a to z Narrow bar ratio, default = 2
eee
000 No
effect
ffff
0000 to 9999
Label position, row
gggg
0000 to 9999
Label position, column
h
E
GS1 DataBar Type: E= GS1 DataBar Expanded
i
1-9 Pixel
Multiplier
j
0 to (i-1)
X pixels to undercut
m
0 to (i-1)
Y pixels to undercut
nn
2-22, even only
[2]
Segments per row
p…p
0 to 9
Subset of ISO646, including alphanumerics
|
| (optional)
Vertical bar separates primary linear data from secondary 2-D
data
q…q
2-D data (optional)
Additional 2-D data
[1]
[1]
The separator row height for two-dimensional composite is fixed at one times the pixel multiplier.
[2]
When using additional 2-D composite data, the sequence width must be at least 4.

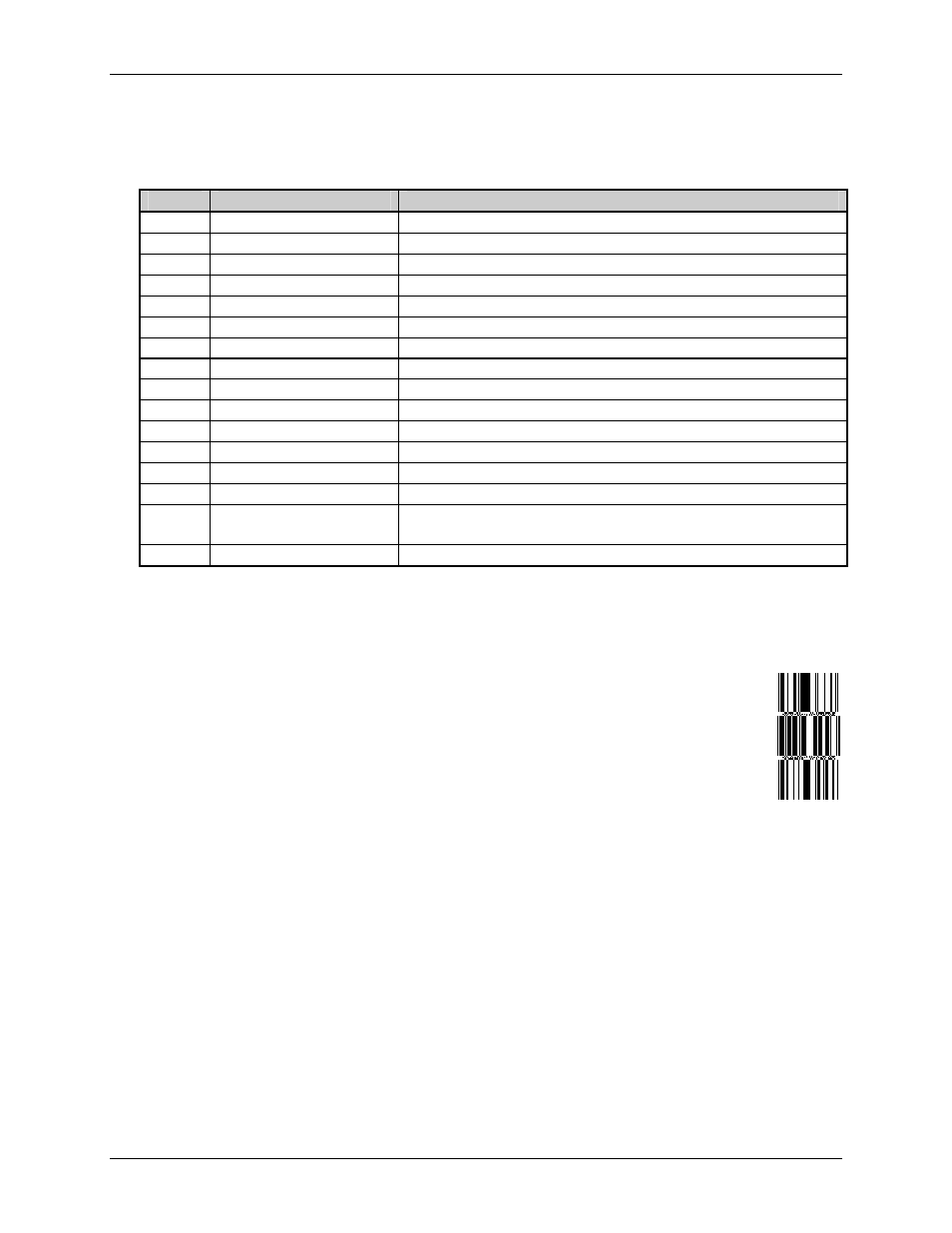

Table G-6: GS1 DataBar Expanded Record Structure
Example:
The following example prints an GS1 DataBar Expanded bar code.
D11
1W1k0000001500150E100022001234567890
121100000000100Barcode W1k
E
Barcode W1k
