Generating Label Formats
Class Series Programmer’s Manual 142
Examples (Spaces have been added for readability) :
1. Triangle
The record:
1 X 11 000 0010 0010 P 001 0001 0040 0025 0010 0040

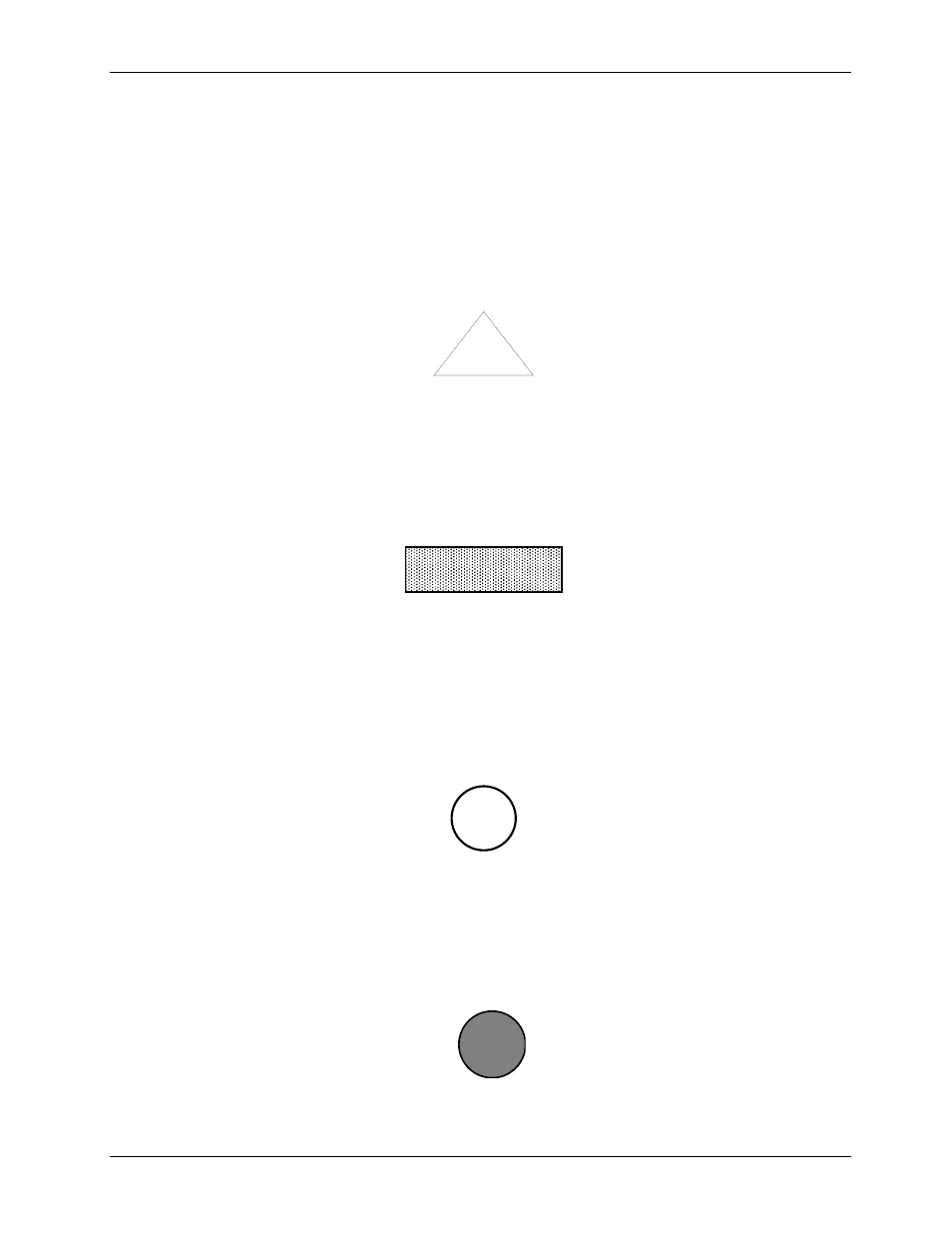

Produces a triangle with no fill pattern:
(row 0040, column 0025)
(row 0010, column 0010) (row 0010, column 0040)
2. Rectangle with Fill
The record:
1 X 11 004 0010 0010 P 001 0001 0050 0010 0050 0200 0010 0200
Produces a rectangle filled with pattern 4 (25% Black):
(row 0010, column 0010) (row 0050, column 0200)
3. Circle
The record:
1 X 11 000 0100 0100 C 001 0001 0025
Produces a circle centered at row 0100, column 0100 with a radius of 0025 and no fill pattern:
4. Circle with Fill
The record:
1 X 11 009 0100 0100 C 001 0001 0025
Produces a circle centered at row 0100, column 0100 with a radius of 0025 and filled with pattern
9 (right diagonal lines):
