Appendix G – Barcode Details
Class Series Programmer’s Manual 198
W1C: DataMatrix with Byte Count Specifier
Specified Length – The upper case C identifies a DataMatrix bar code with a string 4-digit length
specifier. This allows values 0x00 through 0xFF to be included within the data strings without
conflicting with the DPL format record terminators. The four-digit decimal data
byte count
immediately follows the four-digit column position field. This value includes all of the data following
the byte count field, but does not include itself.
L
D11
1W1C440000100010000292000000000Datamax<0x0D>prints best
121100000000100Barcode W1C
E
From the example above, the bar code’s data stream,
1W1C440000100010000292000000000
Datamax<0x0D>prints best
, includes a Byte Count Specifier (the
portion in bold), where 0029 equals the four-digit decimal data byte count
and includes all bytes that follow until the end of the bar code data. Field
termination is set by the byte count. , , and <0x0D> all
represent single byte values of hexadecimal 02, 0D, and 0D, respectively.

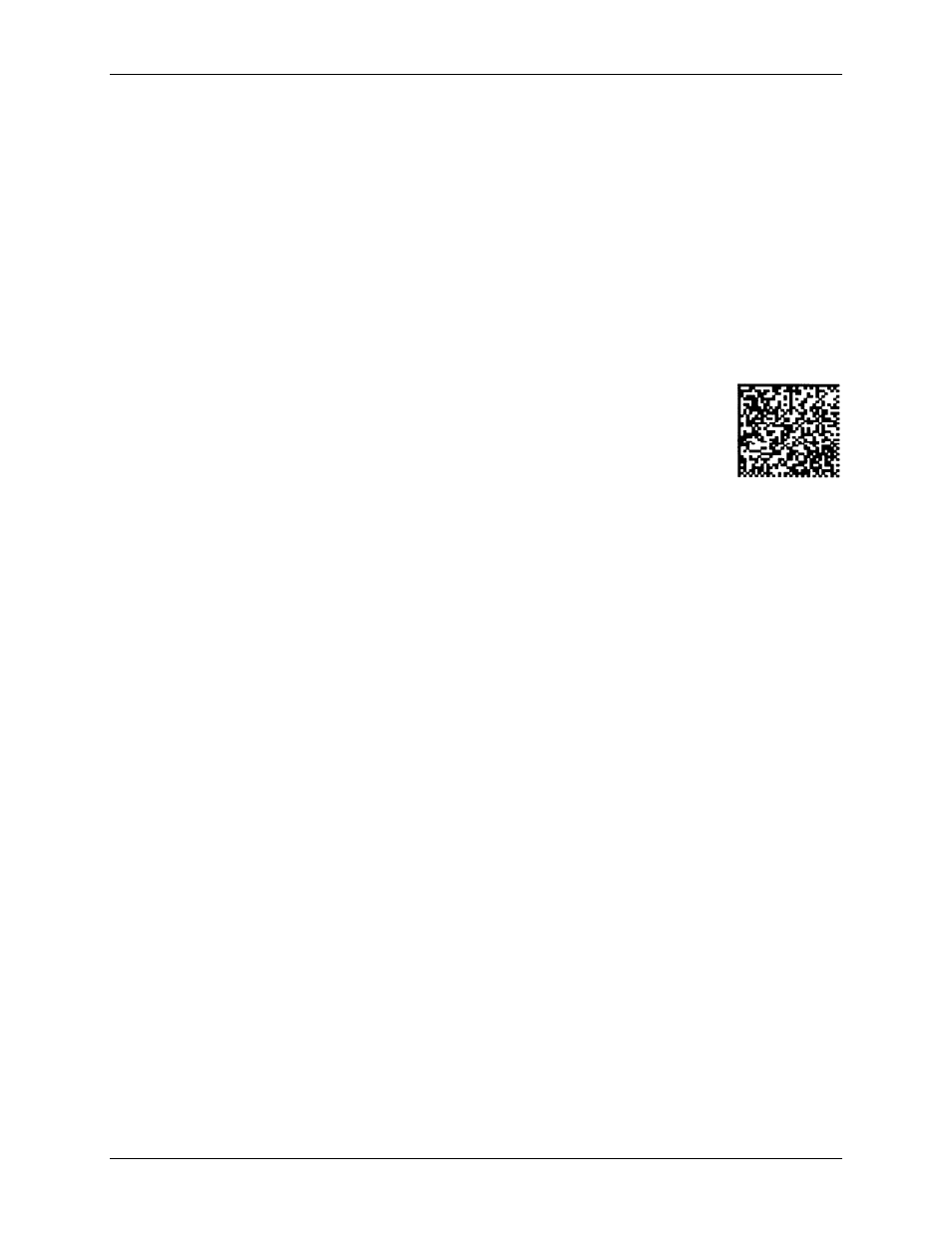

The DataMatrix bar code produced encodes “Datamaxprints best,”
and prints a line of text: Barcode W1C.
Barcode W1C
