Appendix G – Barcode Details
Class Series Programmer’s Manual 212
Field Valid Inputs Meaning
a 1,2,3, and 4 Rotation
W1 W1 Fixed value, extended bar code set
k k Selects GS1 DataBar bar code
c 1 to 9, A to Z, and a to z Wide bar ratio, default = 2
d 1 to 9, A to Z, and a to z Narrow bar ratio, default = 2
eee 000 No effect
ffff 0000 to 9999 Label position, row
gggg 0000 to 9999 Label position, column
h R, T, S, D, L GS1 DataBar Type: R = GS1 DataBar,
T = GS1 DataBar Truncated,
S = GS1 DataBar Stacked,
D = GS1 DataBar Omni-Directional,
L = GS1 DataBar Limited
i 1-9 Pixel Multiplier
j 0 to (i-1) X pixels to undercut
m 0 to (i-1) Y pixels to undercut
n…n 0 to 9 Numeric linear data, length 13 [1]
| | (optional) Vertical bar separates primary linear data from secondary
2-D data
p…p 2-D data (optional) Additional 2-D data [2]
[1] The application identifier is not encoded in the symbol nor is the last check digit; the user should enter in a
13-digit value. The decoding system will display the application identifier and calculate the check digit.
[2] The separator row height for two-dimensional composite is fixed at one times the pixel multiplier.

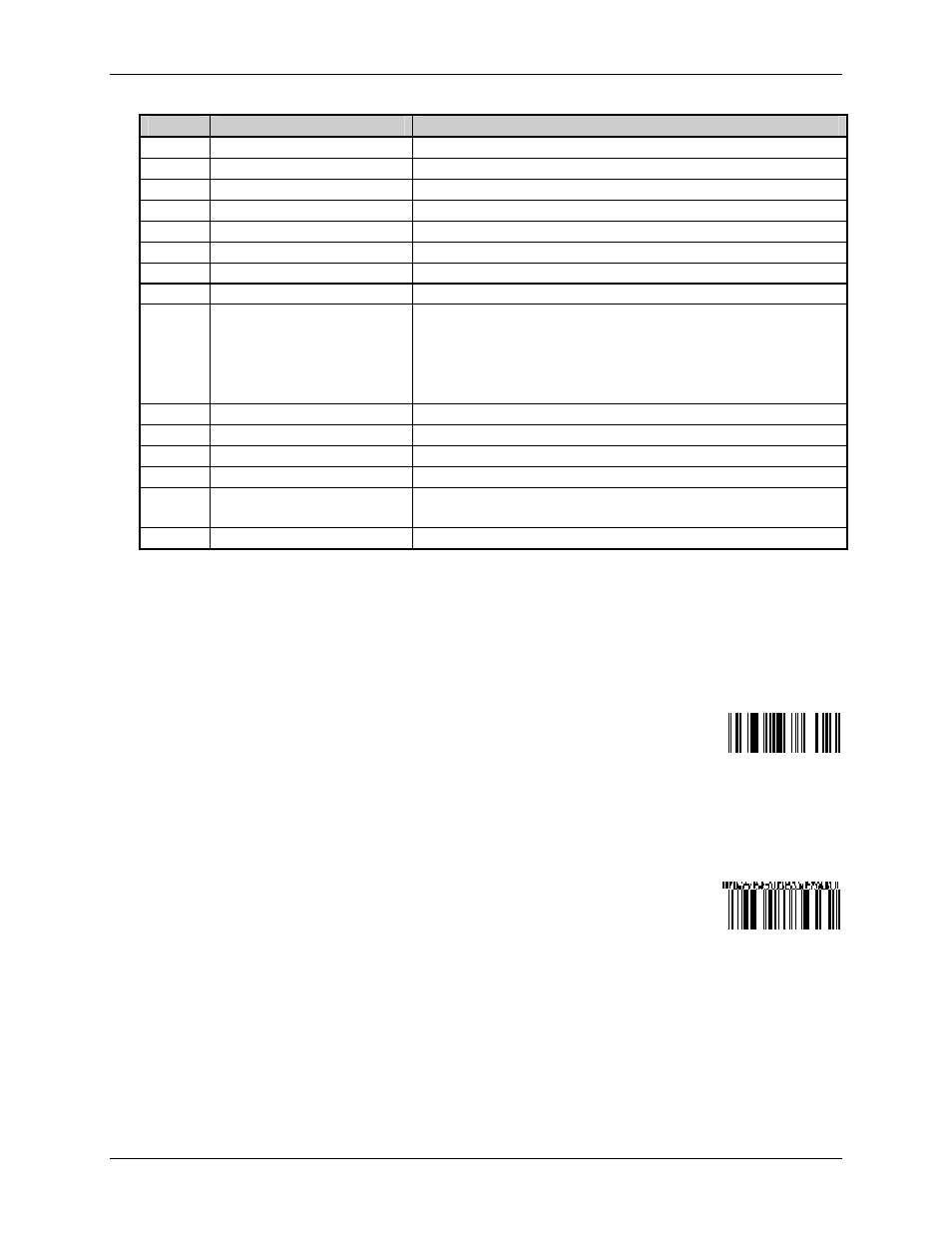

Table G-5: GS1 DataBar, Truncated, Stacked, Stacked Omni-Directional, & Limited Record
Structures
Examples:
The following example prints an GS1 DataBar bar code.
L
D11
1W1k0000001500150R1002001234567890
121100000000100Barcode W1k
E
Barcode W1k
The following example prints an GS1 DataBar bar code with 2-D data.
L
D11
1W1k0000001500150R1002001234567890|123456-99/99/99
121100000000100Barcode W1k
E
Barcode W1k
