Camera interfaces
Guppy PRO Technical Manual V4.0.0
72
Status LEDs
There is one bicolor LED: showing green or orange (If half
green
and half
red
is on you see an
orange
color).
RED
means: red half of LED permanent on
+RED pulsing
means: red half of LED is switched on for a short time. If the
red LED is already on, the LED will be switched off.
GREEN
means: green half of LED permanent on
+GREEN pulsing
means: green half of LED is switched on for a short time. If
the green LED is already on, the LED will be switched off.
Note
GP = General Purpose
For a detailed description of the I/O connector and its oper-
ating instructions see the Hardware Installation Guide,
Chapter Guppy PRO input description.
Read all Notes and Cautions in the Hardware Installation
Guide, before using the I/O connector.

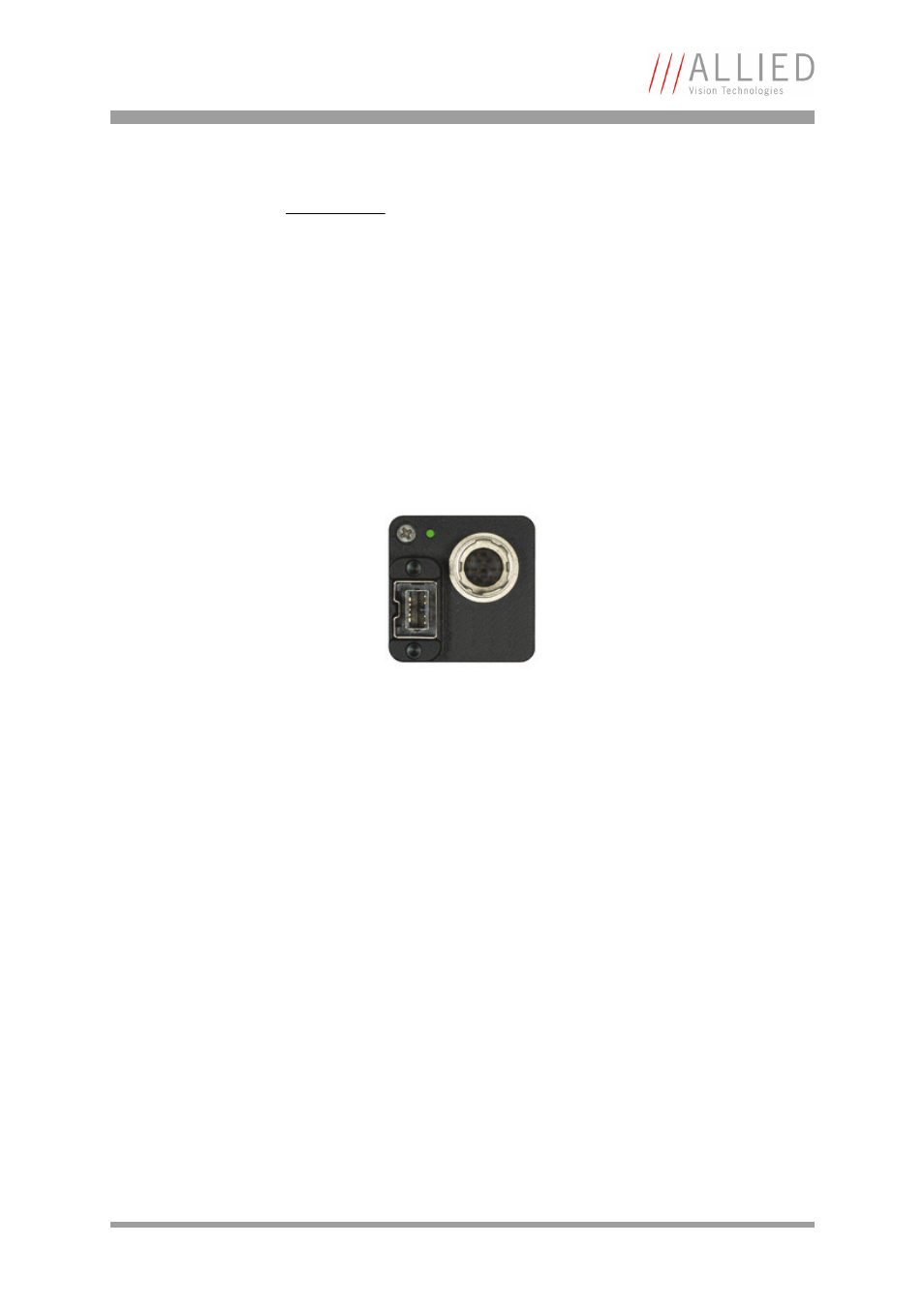

Figure 29: Position of status LED (example showing green half of LED on)
1 status LED bicolor
