Camera I/O connector pin assignment
www
For more information on cables and on ordering cables
online (by clicking the article and sending an inquiry) go to:

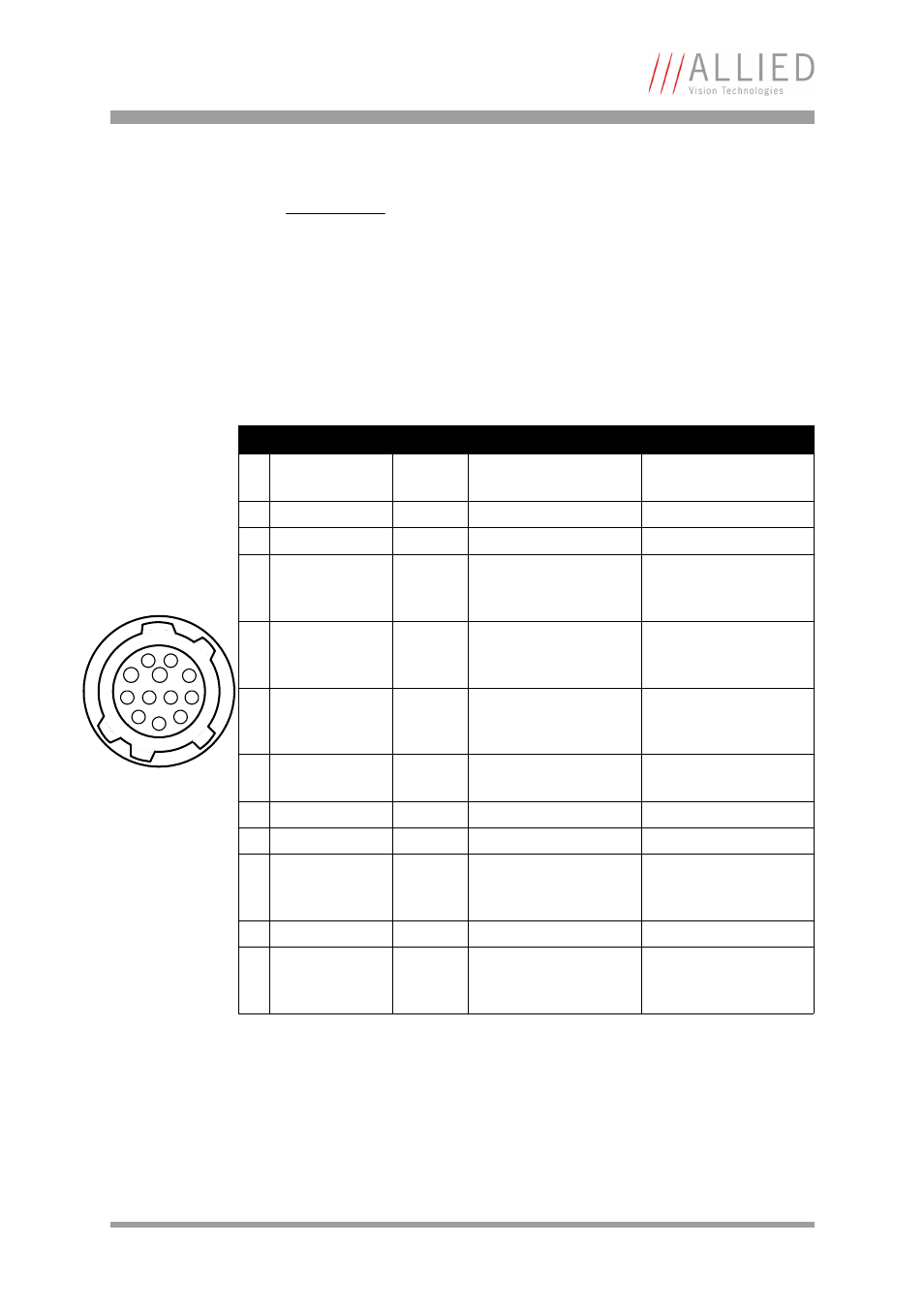

Figure 28: Camera I/O connector pin assignment
1
10
2
9
8
7
6
12
11
3
4
5
Pin Signal
Direction Level
Description
1
External GND
GND for ext. power
External Ground for
external power
2
External Power
+8...+36 V DC
Power supply
3
---
---
---
---
4
Camera In 1
In
U
in
(high) = 3 V...24 V
U
in
(low) = 0 V...1.5 V
Camera Input 1
(GPIn1)
default: Trigger
5
Camera Out 3
Out
Open emitter,
Camera Output 3
(GPOut3)
default: Busy
6
Camera Out 1
Out
Open emitter
Camera Output 1
(GPOut1)
default: IntEna
7
Camera In GND
In
Common GND for inputs Camera Common Input
Ground (In GND)
8
---
---
---
---
9
---
---
---
---
10 Camera Out
Power
In
Common VCC for
outputs
max. 36 V DC
External Power
for digital outputs
(OutVCC)
11 ---
---
---
---
12 Camera Out 2
Out
Open emitter
Camera Output 2
(GPOut2)
default: Off
