Description of the data path

Guppy PRO Technical Manual V4.0.0

135

In color interpolation a red, green or blue value is determined for each pixel.
Only two lines are needed for this interpolation:

Hue and saturation

Guppy PRO CCD and Guppy PRO F-503 color models are equipped with hue and
saturation registers.

The hue register at offset 810h allows the color of objects to be changed
without altering the white balance, by +/- 40 steps (+/- 10°) from the nom-
inal perception. Use this setting to manipulate the color appearance after
having carried out the white balance.

The saturation register at offset 814h allows the intensity of the colors to
be changed between 0 and 200% in steps of 1/256.

This means a setting of zero changes the image to black and white and a set-
ting of 511 doubles the color intensity compared to the nominal one at 256.

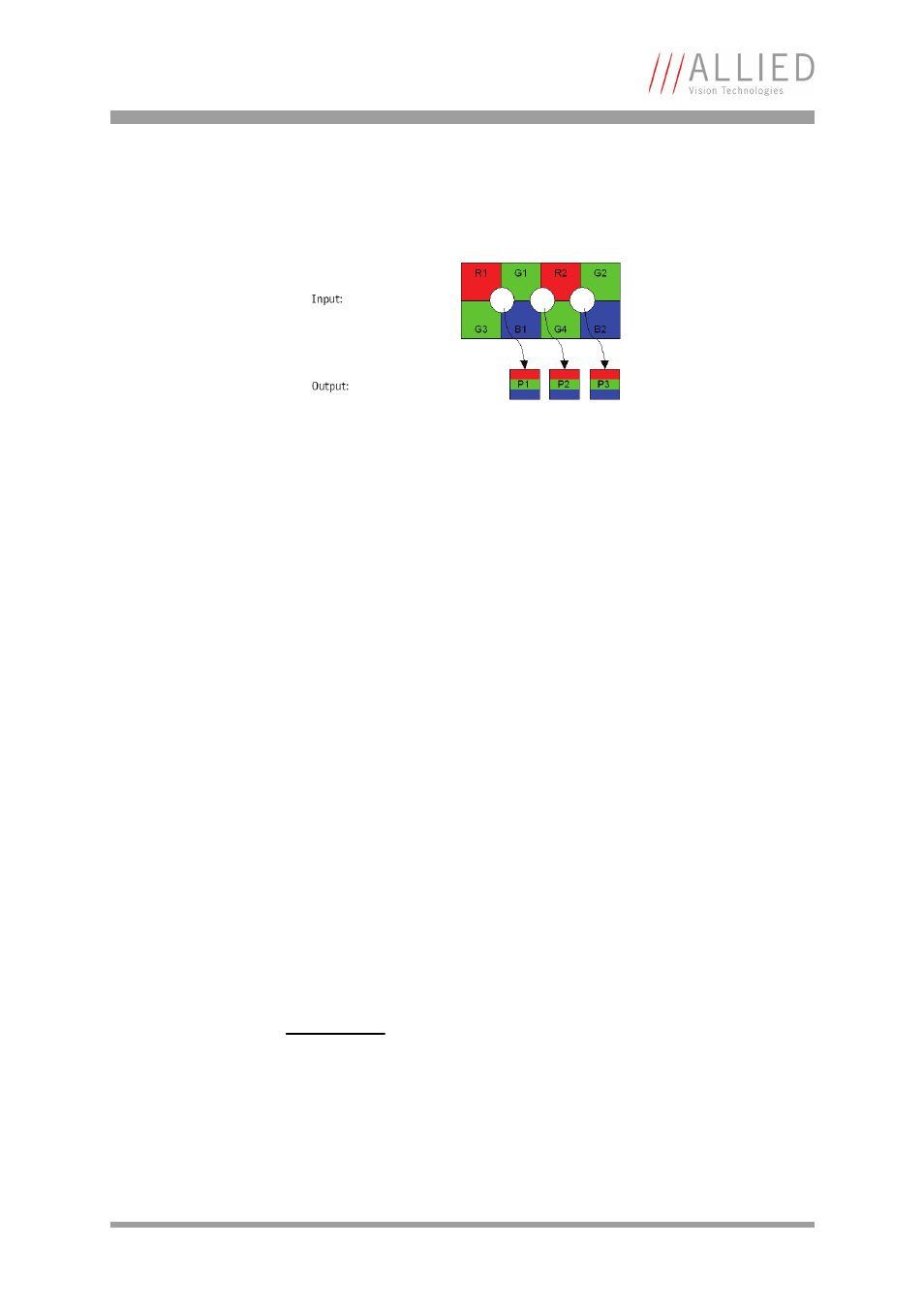

Figure 65: BAYER demosaicing (interpolation)

Formula 4: BAYER demosaicing

Note



Configuration

To configure this feature in feature control register:



See offset
