Video formats, modes and bandwidth
Guppy PRO Technical Manual V4.0.0
191
Guppy PRO F-033: AOI frame rates
* CCD = theoretical max. frame rate (in fps) of CCD according to given formula
Formula 11: Guppy PRO F-033: theoretical max. frame rate of CCD

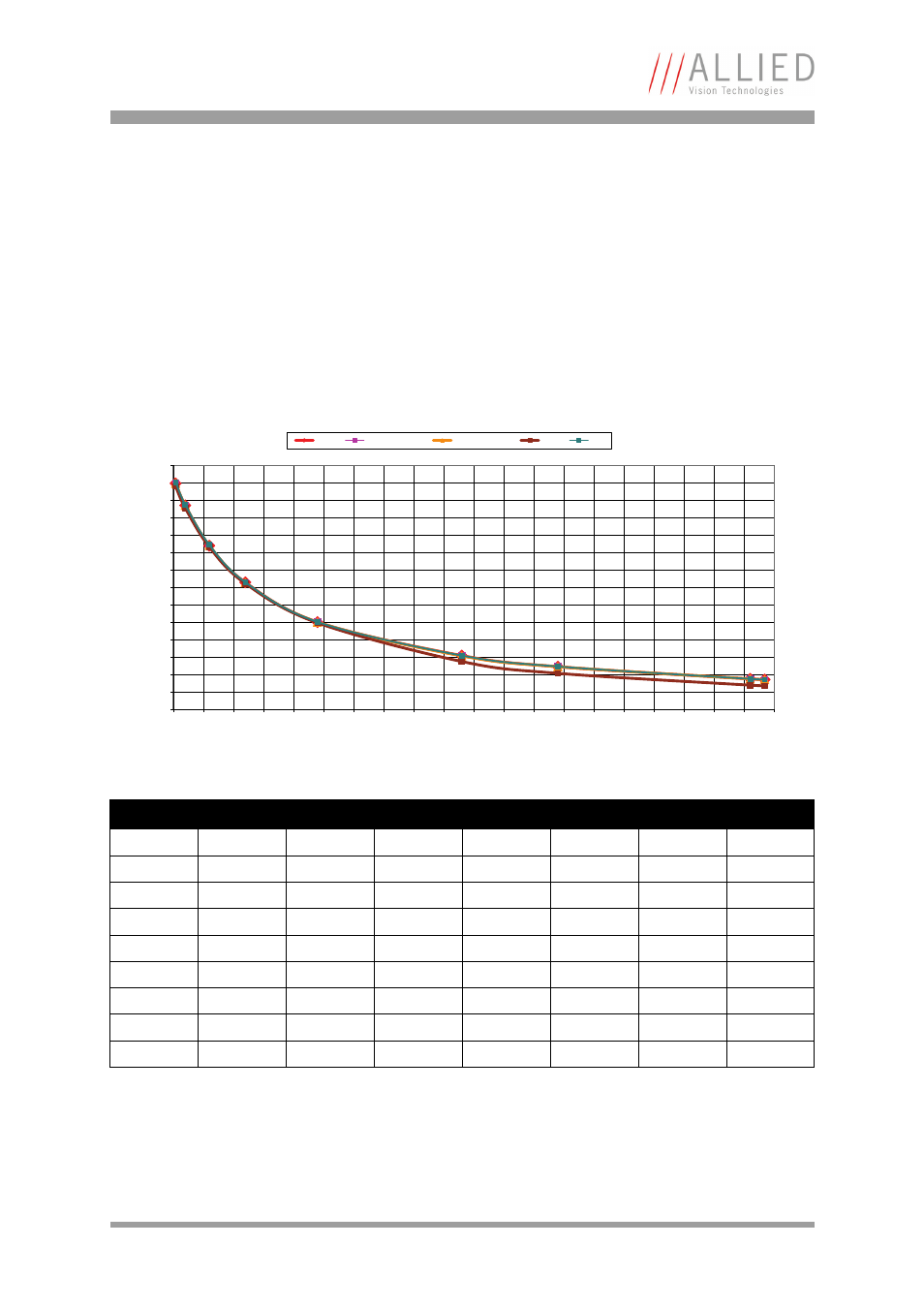

Figure 80: Frame rates Guppy PRO F-033 as function of AOI height [width=656]
AOI height CCD* RAW8 RAW12 RAW16 YUV411 YUV422 RGB8
492 85.19 85 85 85 85 85 67
480 87.04 87 87 87 87 87 69
320 122.59 122 122 122 122 122 103
240 154.05 154 153 153 153 153 137
120 250.44 250 250 250 248 248 248
60 364.47 364 363 363 361 361 361
30 471.91 469 469 470 466 466 466
10 587.32 585 585 585 578 578 578
2 651.00 648 648 648 640 640 640
Table 92: Frame rates (fps) of Guppy PRO F-033 as function of AOI height (pixel) [width=656]
max. frame rate of CCD
1
186.50µs AOI height 23.41µs

505 AOI height
–   2.59µs  + +
------------------------------------------------------------------------------------------------------------------------------------------------------------ =
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500
F
ra
m
e
ra
te
/
fp
s
AOI height / pixel
Frame rate = f(AOI height) *Guppy PRO F-033*
RAW8 RAW12, YUV411 RAW16, YUV422 RGB8 CCD
