Corrected system performance with 2.4 mm connectors continued
Description Specification (dB)
10 to 200 MHz 1 200 MHz to 2 GHz 2 to 20 GHz 20 to 40 GHz 40 to 50 GHz
Directivity 32 55 49 43 41
Source match 25 46 42 35 30
Load match 24 43 41 37 36
Reflection tracking ±0.050 (+0.02/°C) ±0.030 (+0.02/°C) ±0.040 (+0.02/°C) ±0.060 (+0.02/°C) ±0.080 (+0.03/°C)
Transmission tracking ±0.100 (+0.02/°C) ±0.060 (+0.02/°C) ±0.082 (+0.02/°C) ±0.106 (+0.02/°C) ±0.121 (+0.03/°C)

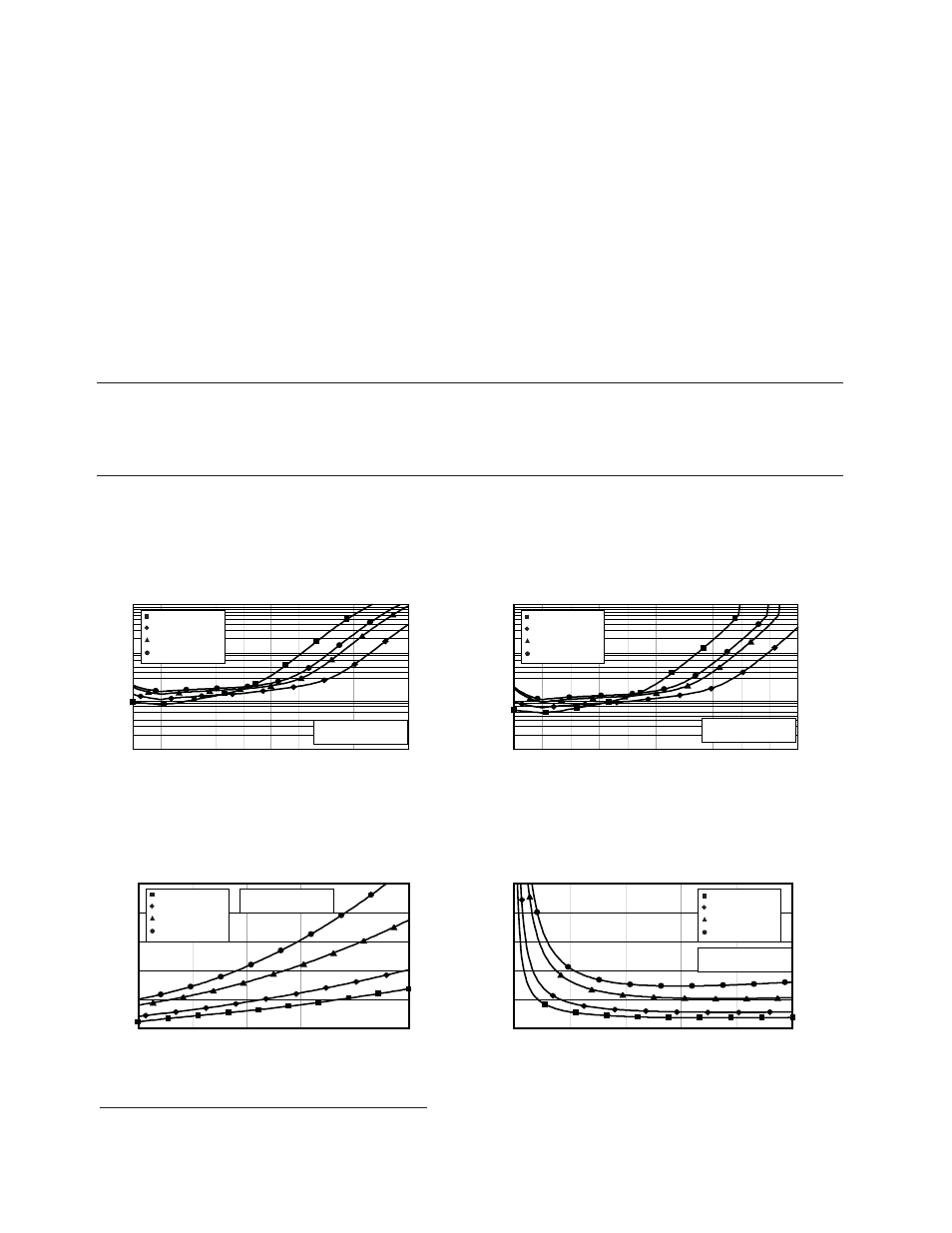

Transmission uncertainty (specifications)
Reflection uncertainty (specifications)
Magnitude
0.01
0.1
1
10
-90 -80 -70 -60 -50 -40 -30 -20 -10 0 10
Transmission coefficient (dB)
E8361C fully optioned 2 full two port cal using N4693A
200 MHz to 2 GHz
2 to 20 GHz
20 to 40 GHz
40 to 50 GHz
S11 = S22 = 0
Source power = -20 dBm
Uncertainty (dB)
Phase
0.1
1
10
100
-90 -80 -70 -60 -50 -40 -30 -20 -10 0 10
Transmission coefficient (dB)
E8361C fully optioned 2 full two port cal using N4693A
200 MHz to 2 GHz
2 to 20 GHz
20 to 40 GHz
40 to 50 GHz
S11 = S22 = 0
Source power = -20 dBm
Uncertainty (degrees)
Magnitude
0
0.01
0.02
0.03
0.04
0.05
0 0.2 0.4 0.6 0.8 1
Reflection coefficient (linear)
E8361C fully fptioned 2 with N4693A
200 MHz to 2 GHz
2 to 20 GHz
20 to 40 GHz
40 to 50 GHz
S21 = S12 = 0
Source power = -20 dBm
Uncertainty (linear)
Phase
0
2
4
6
8
10
0 0.2 0.4 0.6 0.8 1
Reflection coefficient (linear)
E8361C fully optioned 2 with N4693A
200 MHz to 2 GHz
2 to 20 GHz
20 to 40 GHz
40 to 50 GHz
S21 = S12 = 0
Source power = -20 dBm
Uncertainty (degrees)
Fully optioned (E8361C with options 014/UNL/080/081/016)
Applies to E8361C PNA Series analyzer, N4693A
(2.4 mm) ECal electronic calibration module, 85133F
flexible test port cable set, and a full two-port
calibration. (Specifications apply over environmental
temperature of 23 °C ±3 °C, with less than 1 °C
deviation from calibration temperature.)
1. Typical performance.
2. Configurable Test Set, Extended Power Range and Bias-Tees, Receiver Attenuators, Frequency Offset Mode, and
Reference Channel Transfer Switch (Option 014, UNL, 016, 080 and 081).
