21
E8361C
Corrected system performance with 1.85 mm connectors
Description Specification (dB)
10 to 200 MHz 1 200 MHz to 2 GHz 2 to 20 GHz 20 to 30 GHz
Directivity 33 33 50 46
Source match
25 25 39 35
Load match 25 25 38 34
Reflection tracking ±0.50 (+0.02/°C) ±0.05 (+0.02/°C) ±0.040 (+0.02/°C) ±0.05 (+0.02/°C)
Transmission tracking ±0.152 (+0.02/°C) ±0.152 (+0.02/°C) ±0.050 (+0.02/°C) ±0.069 (+0.02/°C)

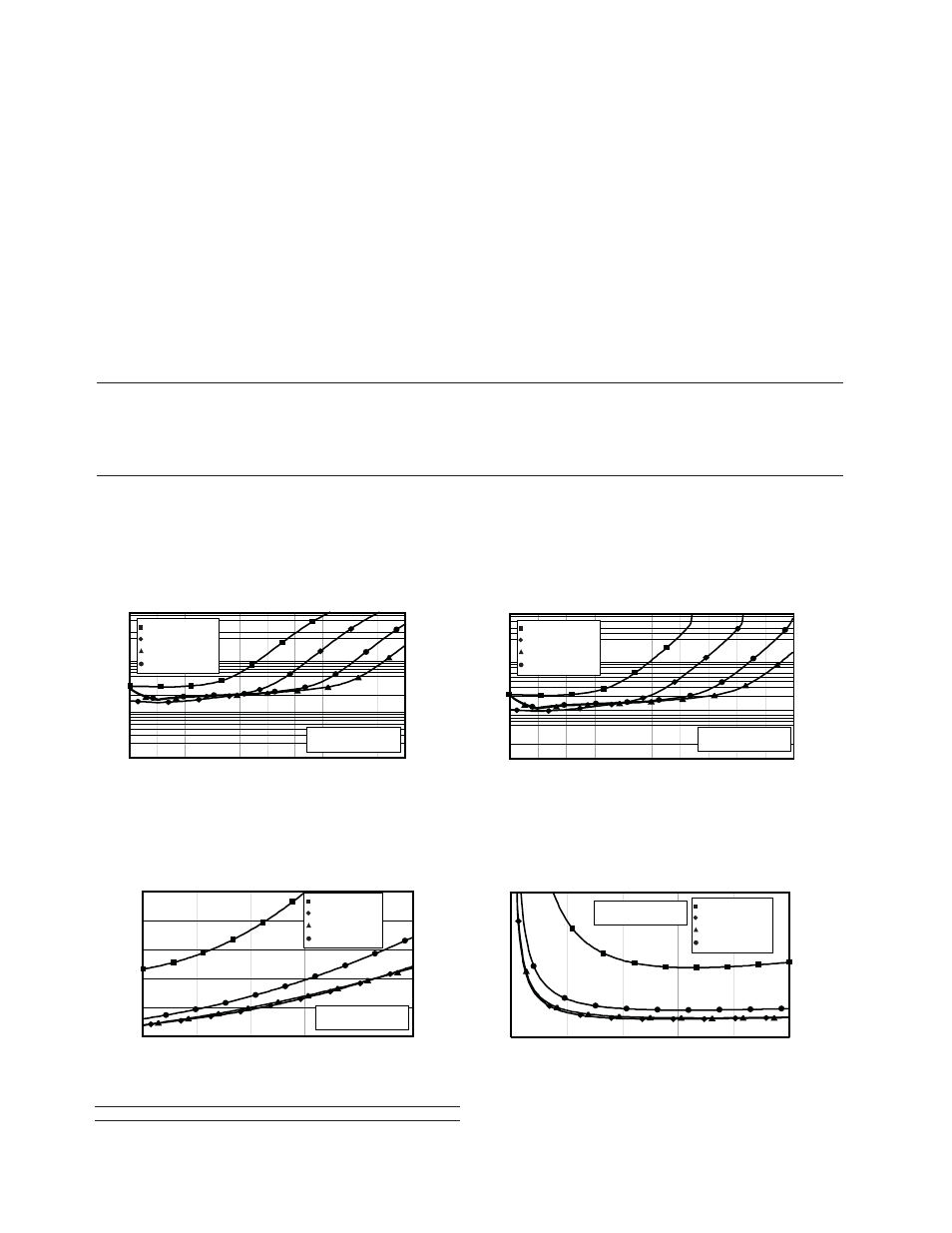

Transmission uncertainty (specifications)
Reflection uncertainty (specifications)
Magnitude
0.01
0.1
1
10
-90 -80 -70 -60 -50 -40 -30 -20 -10 0 10
Transmission coefficient (dB)
E8361C full two port cal using N4694A
10 to 200 MHz 1
200 MHz to 2 GHz
2 to 20 GHz
20 to 30 GHz
S11 = S22 = 0
Source power = -15 dBm
Uncertainty (dB)
Phase
0.1
1
10
100
-90 -80 -70 -60 -50 -40 -30 -20 -10 0 10
Transmission coefficient (dB)
E8361C full two port cal using N4694A
10 to 200 MHz 1
200 MHz to 2 GHz
2 to 20 GHz
20 to 30 GHz
S11 = S22 = 0
Source power = -15 dBm
Uncertainty (degrees)
Magnitude
0
0.01
0.02
0.03
0.04
0.05
0 0.2 0.4 0.6 0.8 1
Reflection coefficient (linear)
E8361C with N4694A
10 to 200 MHz 1
200 MHz to 2 GHz
2 to 20 GHz
20 to 30 GHz
S21 = S12 = 0
Source power = -15 dBm
Uncertainty (linear)
Phase
0
2
4
6
8
10
0 0.2 0.4 0.6 0.8 1
Reflection coefficient (linear)
E8361C with N4694A
10 to 200 MHz 1
200 MHz to 2 GHz
2 to 20 GHz
20 to 30 GHz
S21 = S12 = 0
Source power = -15 dBm
Uncertainty (deg)
1. Typical performance.
Standard configuration and standard power range
Applies to E8361C PNA Series analyzer, N4694A
(1.85 mm) ECal electronic calibration module, N4697E/F
flexible test port cable set, and a full two-port calibration.
(Specifications apply over environmental temperature
of 23 °C ±3 °C, with less than 1 °C deviation from
calibration temperature.)
