Appendix, cont’d

VTG 400D/400 DVI • Appendix

A-16

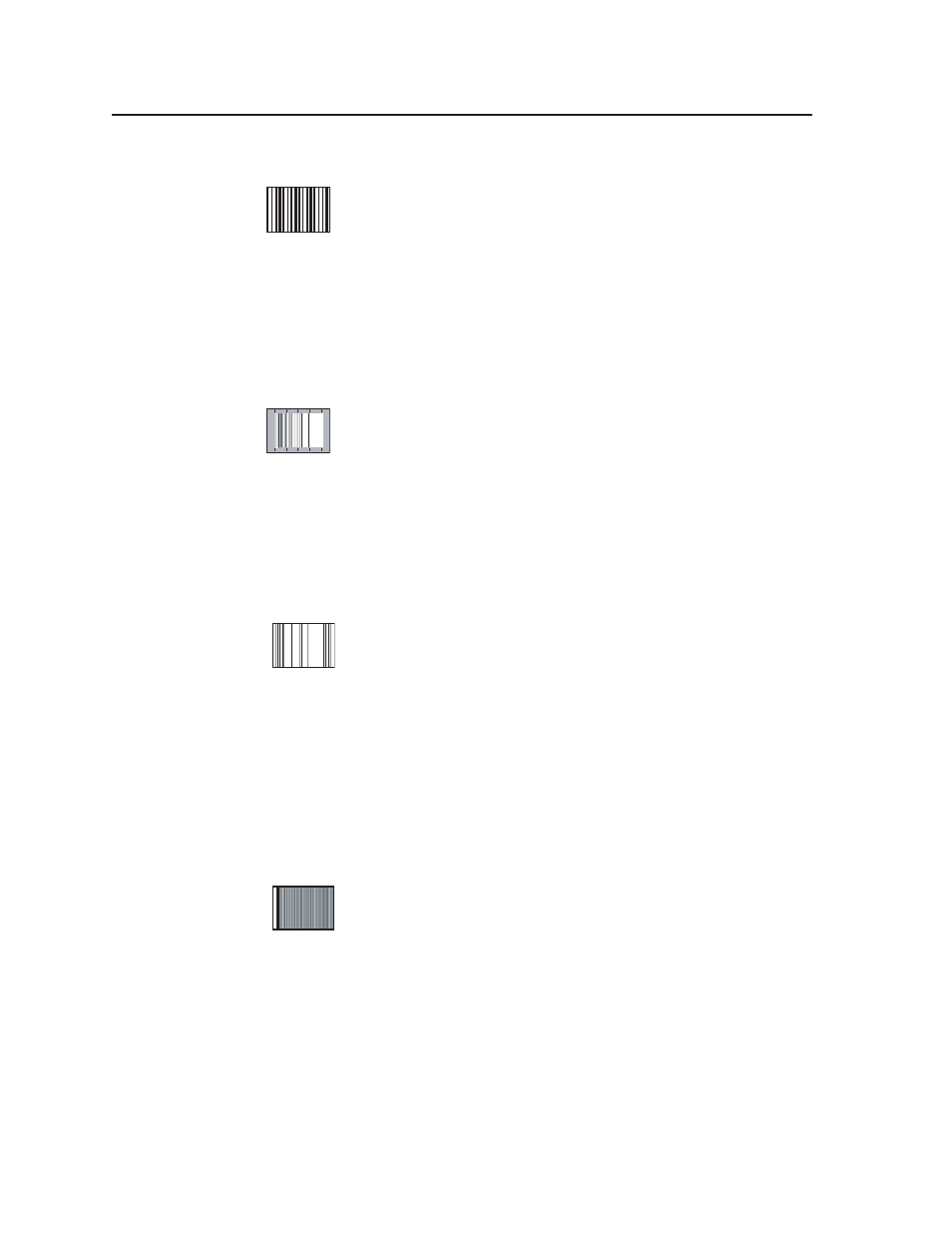

22. Alternating Pixels (1 on, 1 off)

For computer graphics displays, alternating pixels represent the

highest frequency operation at a given line rate, or resolution. These

one-On, one-Off transitions tax the speed of a graphics system and the

display’s performance as well. Use this pattern to assess the high

frequency performance of the display or a graphics system in total. It may also be

used to align or evaluate pixel timing and phase on fixed pixel displays. As a

source for EMI testing, the alternating pixel pattern represents a worst case scenario

for products that may radiate energy in relation to FCC regulations. Typically, an

oscilloscope is used to measure the true performance of the display system using

this pattern.

Frequency Sweep

Within the NTSC or PAL environment, the frequency sweep pattern

provides a sine wave sweep from near DC to the specified system

bandwidth for the affected broadcast standard. This pattern is used to

evaluate system bandwidth performance and is also used to evaluate

color decoder performance in the region of the chroma subcarrier frequency.
The sweep limit for NTSC is 4.2 MHz and the sweep limit for PAL is

5 MHz. While some visual information can be derived from viewing this pattern on

a display, bandwidth evaluation is most accurately accomplished using an

oscilloscope or waveform monitor.

23. Graphics Multiburst

The graphics multiburst provides groups of digital bursts consisting

of 1/1 (meaning one-On, one-Off) alternating pixels at screen center

flanked by 2/2 alternations, then 4/4 alternations,

8/8 alternations, and a white reference. Perception of grayscale

should remain consistent throughout; otherwise, frequency response differences

will cause color shifts, particularly in the 1/1 burst as compared to the other bursts.
Utilizing an oscilloscope, this pattern may be used to evaluate high frequency

versus low frequency performance of a graphics system. The border area between

bursts is 50% gray. Anomalies of high frequency performance resulting in severe

attenuation of the center burst of 1/1 pixels blend into the middle gray border. In

addition, color shifts are most easily identified against the low frequency nature of

the middle gray level.

Multiburst

The television multiburst is intended to provide rapid evaluation of

system bandwidth over the television channel using a waveform

monitor or oscilloscope. A full bandwidth system reproduces the

multiburst with all bursts having equal amplitude from low

frequency to high frequency. Visually, the pattern may be used to see the relative

quality or effect on bandwidth of the color decoder system and luminance channel.
Each version of the multiburst includes one burst at the system subcarrier

frequency so that luminance channel attenuation due to the quality of the color

decoding system may be observed. Each burst is symmetrical about a 50% (middle

gray) pedestal. Following are the basic specifications for the two multiburst formats

in the VTG 400:

NTSC

– White reference bar followed by 0.5, 1, 2, 3, 3.58, and 4.2 MHz bursts

PAL

– White reference bar followed by 0.5, 1, 2, 4, 4.43, and 5 MHz bursts.
