2-3 VTG 400D/400 DVI • Installation and Operation

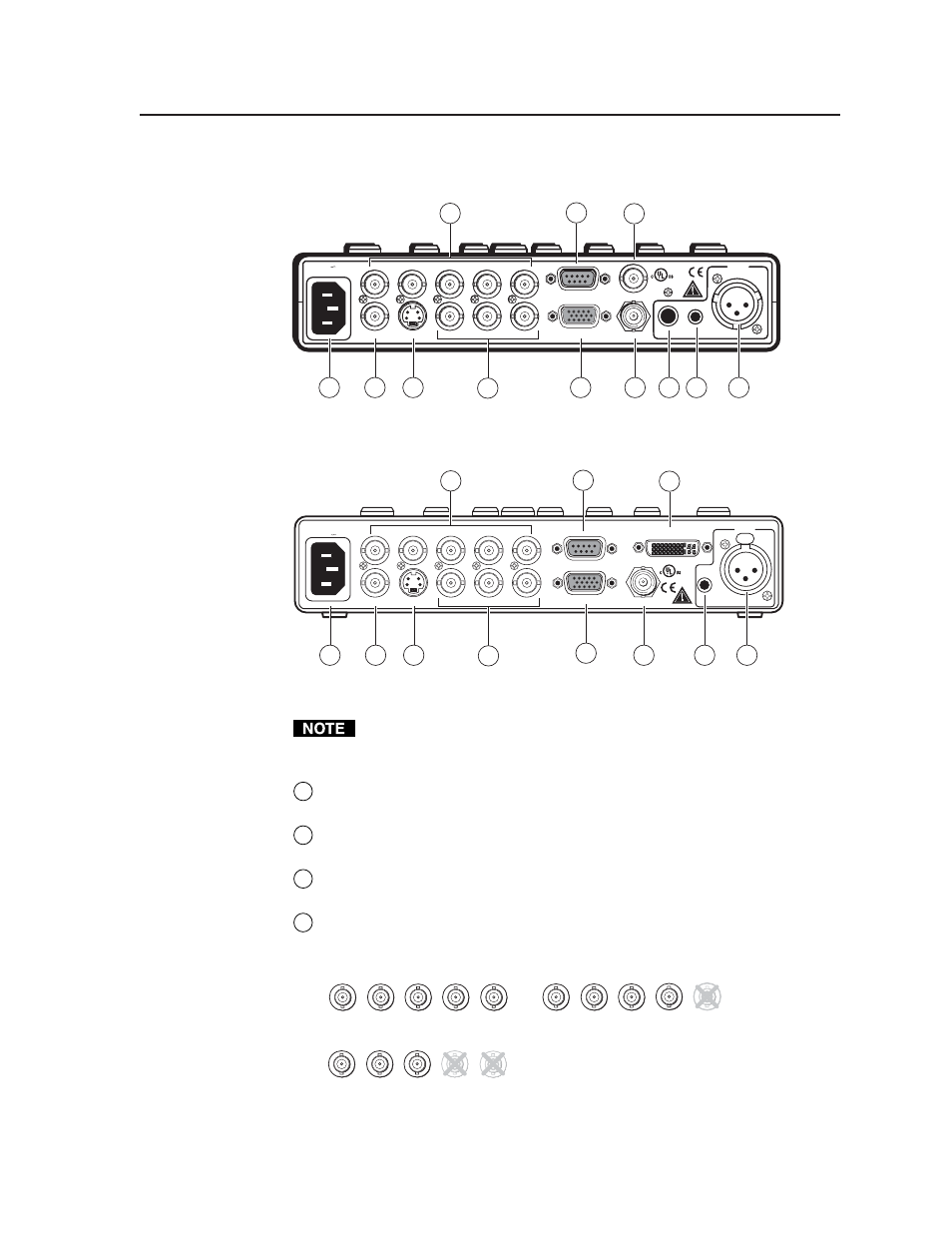

Rear Panel Connectors and Cabling
RS-232
50-60Hz
COMPOSITE
R G B H/HV V
S-VIDEO R-Y Y B-Y RGB TRIGGER 1
SDI/HDSDI
100-240V 0.3A LISTED
1T23
I.T.E.
AUDIO
2 3
4
1 2 3 6 9 10 11 12
8a 7
5
VTG 400D rear panel connectors
RS-232
50-60Hz
COMPOSITE
R G B H/HV V
S-VIDEO R-Y Y B-Y RGB TRIGGER
AUDIO
DVI-D
2 3
100-240V 0.3A
LISTED
1T23
I.T.E.
4
1 2 3 6 9 11 12
8b 7
5
VTG 400 DVI rear panel connectors
RGB video, component video, composite video, S-video, SDI/HDSDI
(VTG 400D only), and DVI-D (VTG 400 DVI only) video are output
simultaneously.
1 AC power connector — Plug a standard IEC power cord into the connector
to connect the VTG to a 100 to 240 VAC, 50-60 Hz power source.
2 Composite video output connector — Composite video is output through
this BNC connector.
3 S-video output connector — S-video is output through this 4-pin mini DIN
connector.
4 RGB computer video output connectors — Connect a display device to the
five female BNC connectors for RGBHV, RGBS, RGsB, or RsGsBs video
output, as follows:
RGBHV output RGBS output
R G B V H /HV
R G B V H /HV
R G B V H /HV
RGsB, RsGsBs output
