3-19

VTG 400D/400 DVI • Serial Communication

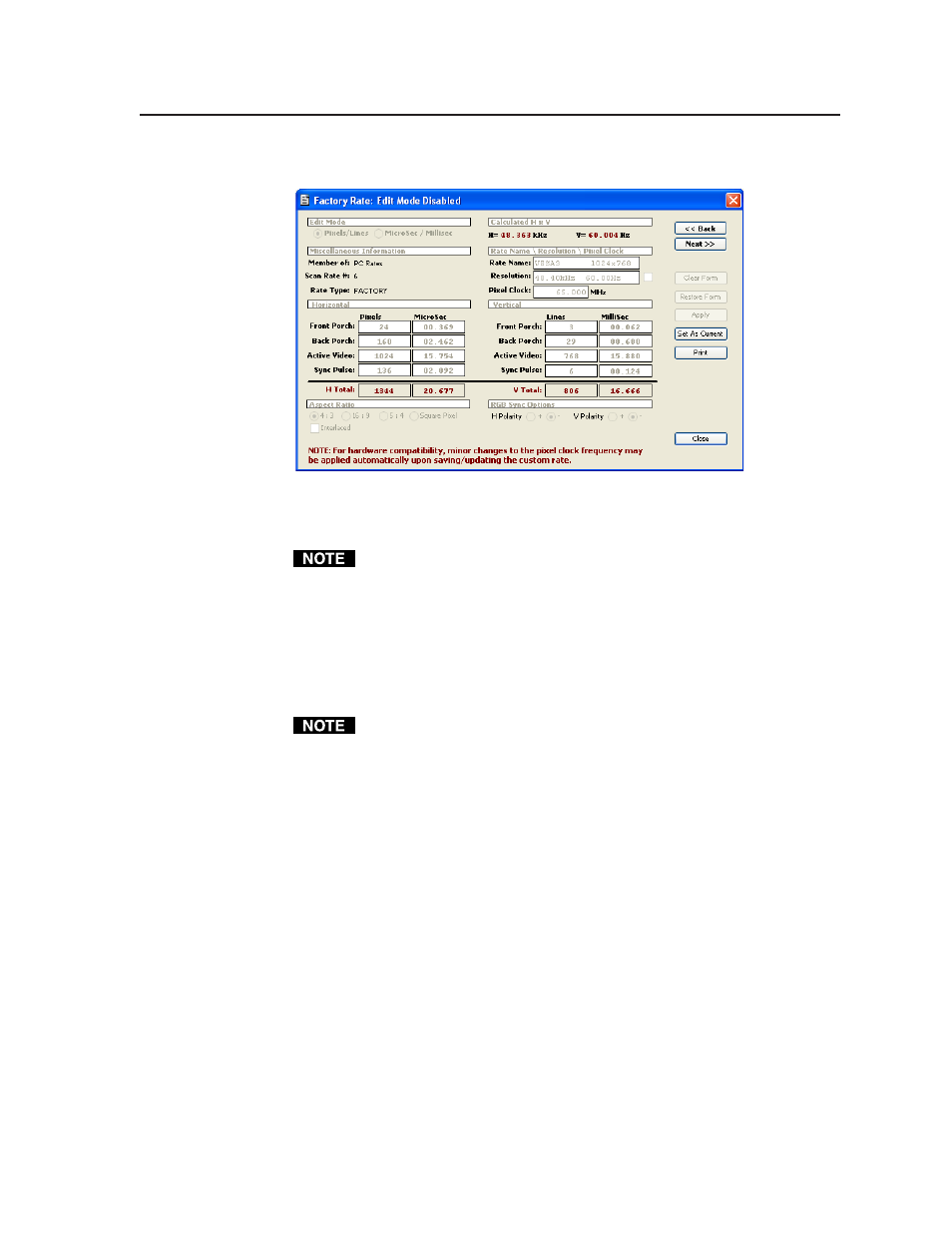

Edit the appropriate information in the above screen. Click the Apply button to

save the changes made.

Select the

Print button to print the screen.

Import button

— Selecting this button allows you to import scan rates to the

Custom Rates scan group. See the following screen display. A previously

saved file of defined scan rates must first be opened via the Load File

button (see the following Export button description), and a scan rate

selected.
After selecting the previously saved *.rte file, open that file and click on the

desired rate(s).

The Select radio button selects all the rates in the file, and the De-select radio
button deselects all the rates.
