2-9

VTG 400D/400 DVI • Installation and Operation

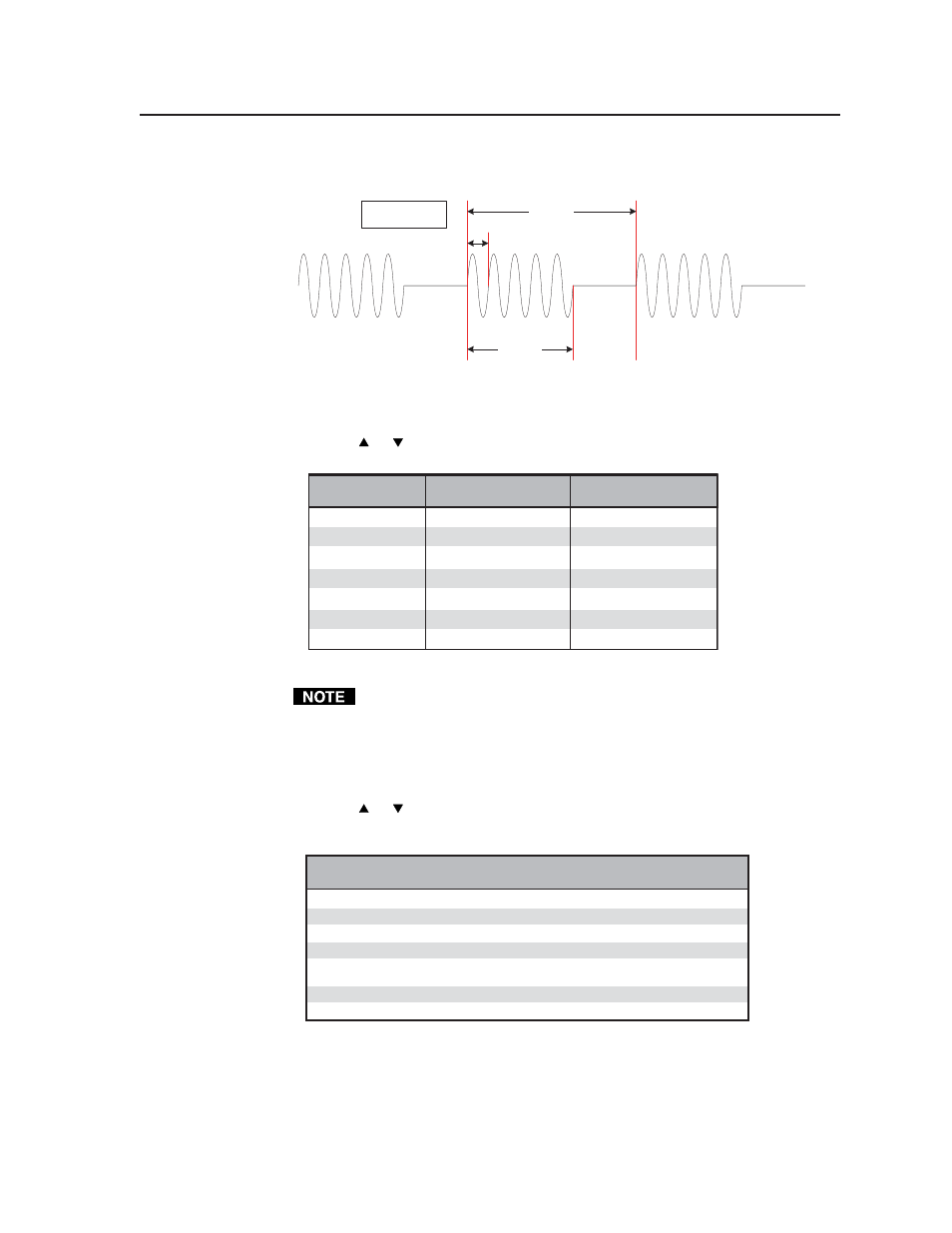

An example of the sine burst signal is shown in the following illustration:

Interval

= 8 Cycles

Burst On

= 5 Cycles

Burst Frequency

= 1 / Cycle

1

Cycle

Setting the audio level

The audio level for each audio signal type is selected from a range of values
using the or Level buttons. The following table lists the range of values.

Audio

Audio Level Range

Audio Level Range

Signal Format

(in dBu increments)

(in dBV increments)

Pink Noise

-4 dBu to -72 dBu

-6 dBV to -74 dBV

White Noise

+6 dBu to -72 dBu

+4 dBV to -74 dBV

Sine Wave

+6 dBu to -72 dBu

+4 dBV to -74 dBV

Square Wave

+6 dBu to -72 dBu

+4 dBV to -74 dBV

Frequency Sweep

+6 dBu to -72 dBu

+4 dBV to -74 dBV

Polarity Test

-14 dBu to -72 dBu

-16 dBV to -74 dBV

Sine Burst

+6 dBu to -72 dBu

+4 dBV to -74 dBV

Displayed levels are for high impedance loads. For 600 ohm loads, there is
a -0.7 dB (unbalanced) / -1.3 dB (balanced) difference between the displayed
and actual levels.

Setting the audio frequency

The audio frequency for each audio signal type is selected from a range of values

using the or Audio Frequency buttons and observing the LCD. The

following tables list the available frequencies.

Audio
Signal Format

Audio Frequencies

Pink

Noise

N/A

White

Noise

N/A

Sine Wave

20 Hz through 20 kHz (see the following Audio Range chart)

Square Wave

20 Hz through 5 kHz (see the following Audio Range chart)

Frequency Sweep

Sweep speed (in seconds): 120, 90, 60, 30, 20, 10, 9.0, 8.0, 7.0, 6.0,
5.0, 4.0, 3.0, 2.0, 1.0

Polarity Test

1 Hz

Sine Burst

20 Hz through 20 kHz (see the following Audio Range chart)
