Serial Communication, cont’d

VTG 400D/400 DVI • Serial Communication

3-14

Starting the control program

Many items found in the VTG 400 Control Program are also accessible via top

panel controls and the LCD menus described in chapter 2. Refer to chapter 2 for

details on features and settings. The VTG 400 Help Program provides

information on settings and on how to use the control program itself.
Some features, including the miscellaneous options, are only available via this

control program. These features are described in the sections of this chapter that

correspond to the parts of the control program where the features are found.

1.

To run the control program, double-click on the VTG 400 Control Program

icon in the Extron Electronics group or folder. The Comm Port Selection

dialog box appears on the screen. From the “Connect Using” drop-down

list box, select RS-232 serial port.

The VTG Control Program may also be run using previously saved
configuration files generated by the Control Program by selecting

Emulation Mode. See Using the emulation mode, later in this chapter.

2.

Click on the COMM port that is connected to the VTG’s RS-232 port. The

Extron VTG Control Program window appears, as shown in the following

illustration. The top menu bar consists of five drop-down menus:

File menu
Video menu
Audio menu
Options menu
Help menu

The Video menu appears only when the vertical Video tab is selected.

There are three vertical tabs available:

Video tab
Audio tab
Scope-Trigger tab

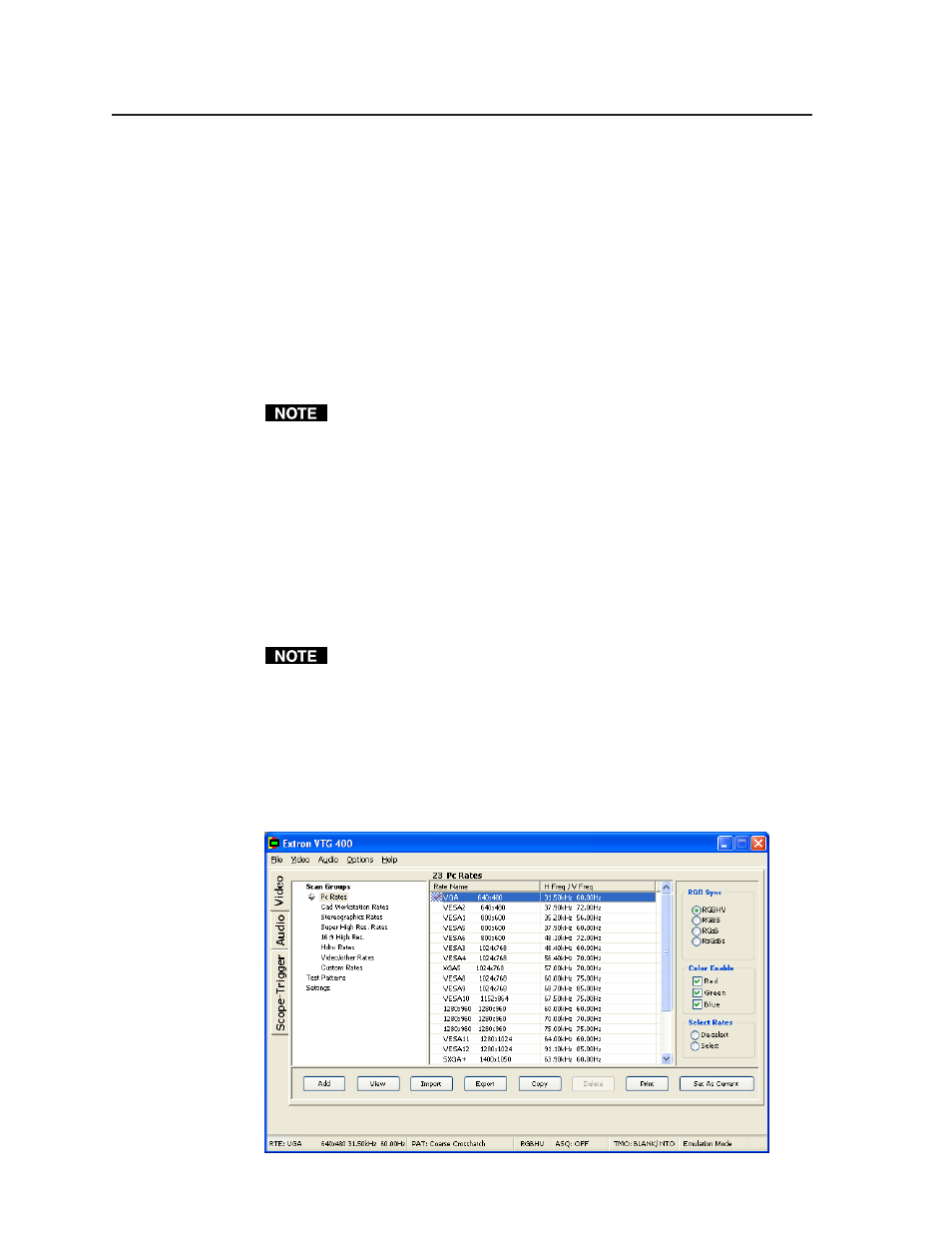

The Video screen, shown below, is the default window when the Control

Program opens.
