3-15

VTG 400D/400 DVI • Serial Communication

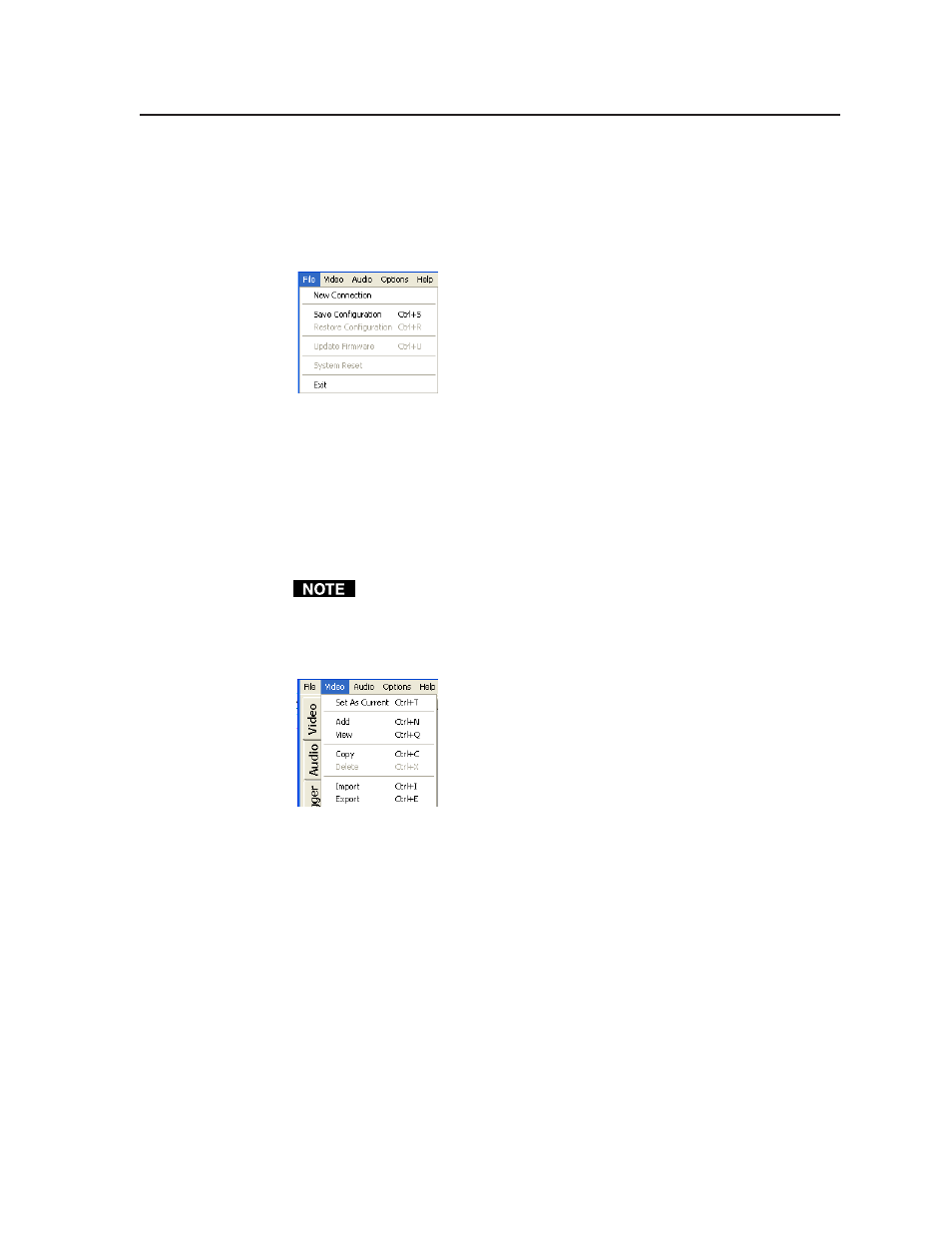

Drop-down menus

File menu

The File menu features six functions: New Connection, Save Configuration,
Restore Configuration

, Update Firmware, System Reset, and Exit. See the

illustration below.

• Reselect a COMM port using New Connection.
• Save Configuration saves the current configuration settings to a *.vtg file.
• Restore Configuration retrieves configuration information from a previously

saved *.vtg file.

• System Reset resets the VTG to factory default configuration settings.
• Update Firmware loads the VTG with firmware from a *.bin file.
• Exit terminates the Windows control program.

A system reset does not affect any stored Custom Rates.

Video menu

The Video menu features seven functions: Set As Current, Add, View, Copy,
Delete

, Import, and Export. See the following illustration.

• Set As Current sets the selected scan rate as the current scan rate.
• The Add command presents a configuration window to create a new custom

scan rate.

• The View command displays the current scan rate’s configuration profile.
• The Copy command copies the selected scan rate to the Custom rates folder.
• The Delete command deletes the selected custom scan rate from the Custom

rates folder.

• The Import command imports (retrieves) scan rates from a file to the Custom

rates folder.

• The Export command exports (saves) scan rates to a file.

Audio menu

The Audio menu features the Restore Factory Audio Settings command and the
Audio Mute

command. See the illustration below.
