Installation and Operation, cont’d

VTG 400D/400 DVI • Installation and Operation

2-20

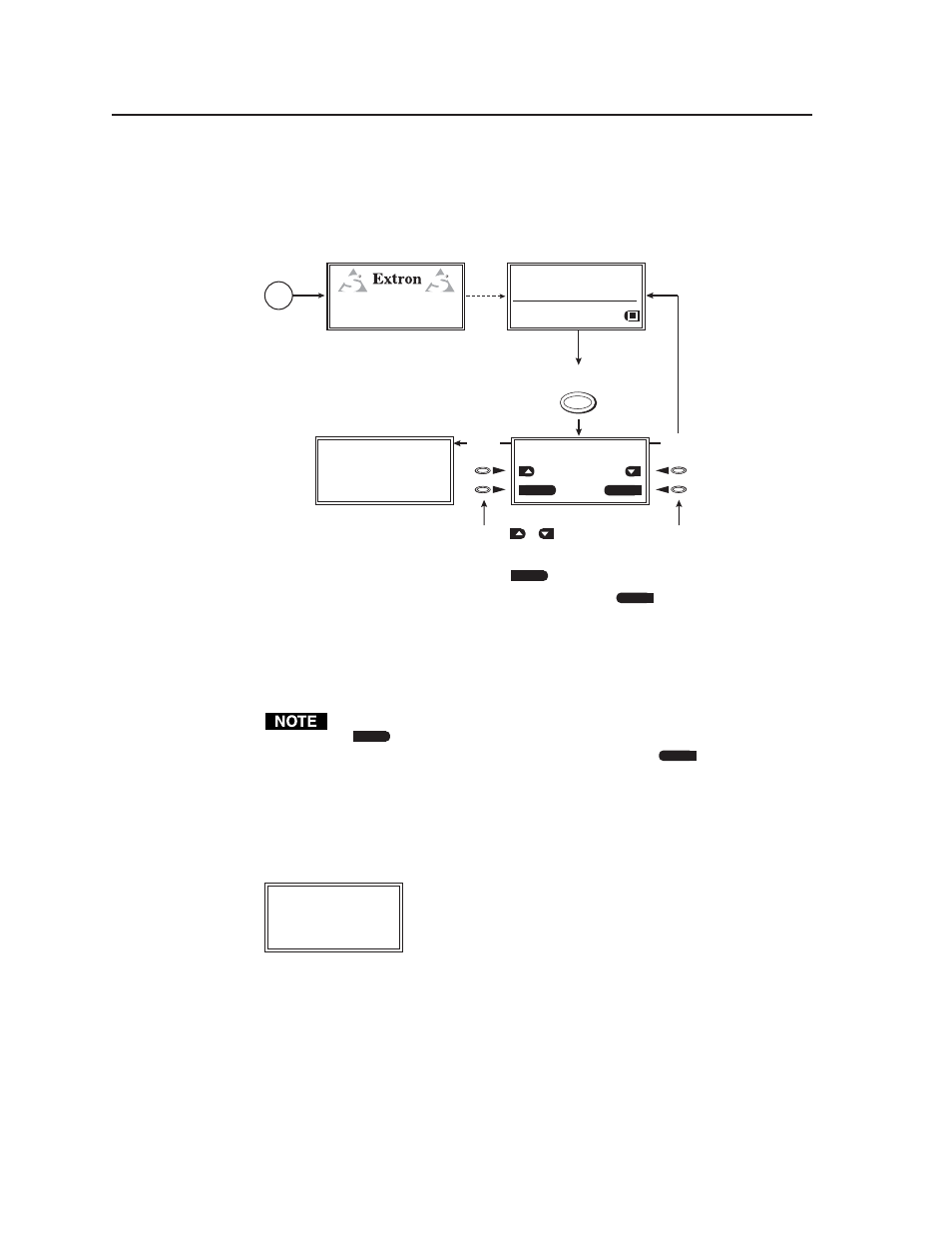

Quick select buttons

Up to four video and/or audio settings can be saved by pressing one of the four

top panel Quick Select buttons for two seconds until the Quick Select Setup menu

appears. The following menu flowchart illustrates this process.

QUICK SELECT SETUP #1
Configuration to store:
Video settings
Save changes:
?

SAVE

CANCEL

SAVE

Settings Saved

to Button #1

SAVE

Select

SAVE

Select

CANCEL

QUICK

SELECT

Press any Quick Select
button for 2 seconds.

Power

on

RES: VGA 640x480
FRQ: 31.50kHz 60.00Hz
PAT: Fine Crosshatch
SIG: Pink noise FRQ: N/A
LEV: -10 dBu 245mV

VTG 400

VIDEO TEST GENERATOR
60-564-01 Ver. 1.00

3 sec.

CANCEL

SAVE

Press either arrow selection button adjacent to
the or selectors to save either the
Audio settings, Video settings, or All settings
(both audio and video).
Press the arrow selection button adjacent to
the selector to save the setting(s)
to a Quick Select button or press the arrow
selection button adjacent to the
selector to cancel the operation and not save
the setting(s) to a Quick Select button.

Quick Select Setup menu

The audio and/or video settings are saved when the Save selector
(

SAVE

) is chosen. Nothing is saved if the menu times out after

approximately 15 seconds or if the Cancel selector (

CANCEL

) is chosen.

To recall a previously saved configuration, press the associated Quick Select

button that was used to save the configuration. The recalled configuration

overwrites only the corresponding current settings. The following illustration is

an example of the LCD screen response after recalling Quick Select button 1:

Settings Recalled

for Button #1

SAVE
