PIP 422 and PIP 444 Picture-in-Picture Processors • Remote Control

Advanced tab

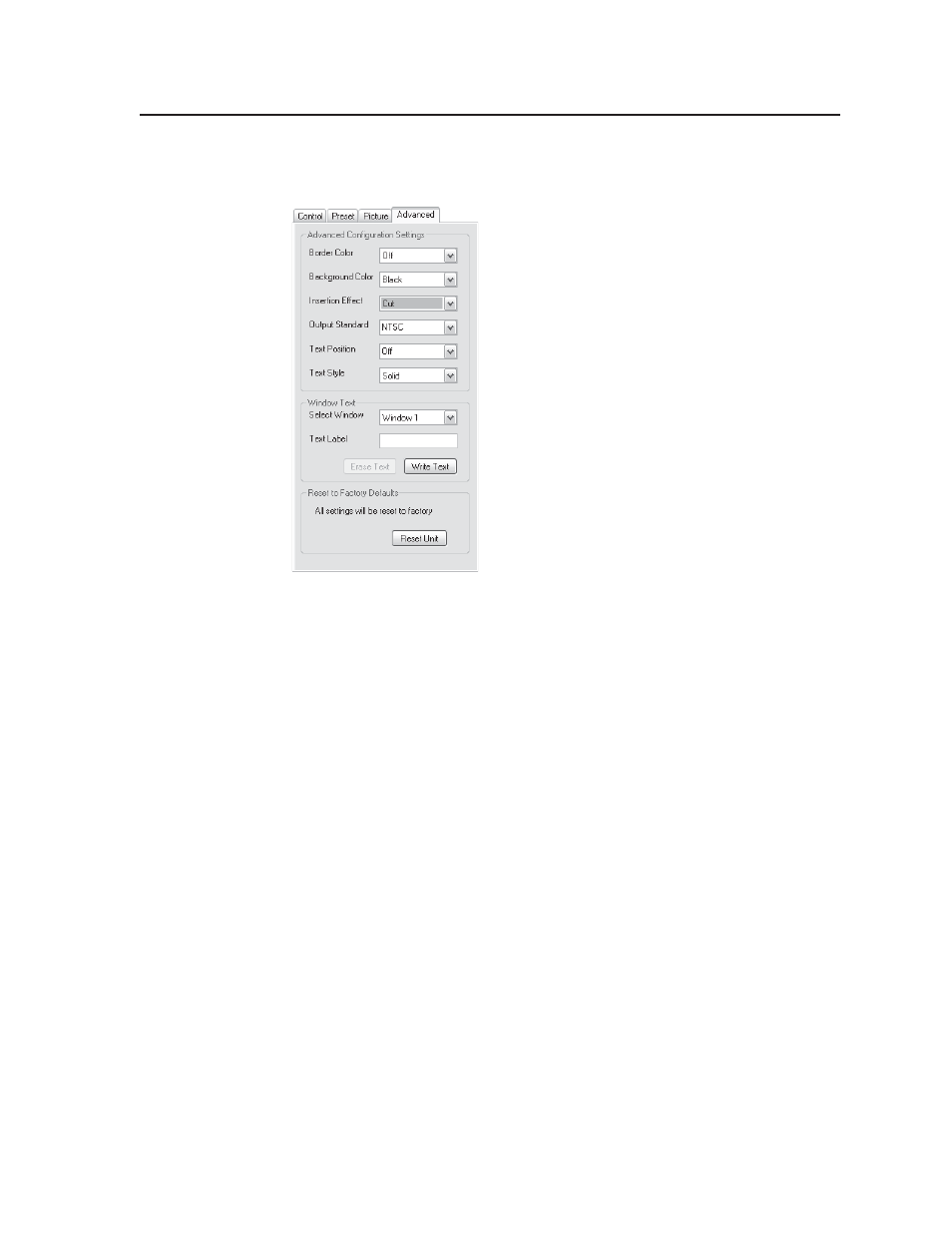

Figure 4-13 shows the controls area with the Advanced tab selected.

Figure 4-13 — Controls area, Advanced tab

The Advanced Configuration Settings area has drop boxes that allow you to select:

The background and border colors

The insertion effect (cut, wipe, or dissolve)

The output standard (NTSC, NTSC 0 IRE, or PAL)

The position of the text that you insert in a window

The text style (solid or translucent)

The Window Text area allows you to select one of the windows (using the Select
Window drop box) and then enter or erase text in the window.

The Reset Unit button restores the factory defaults.

Using the help system

For information about program features, you can access the help program in any of
the following ways:

From the Extron Electronics group folder, click on the PIP Help icon.

From within the PIP Control Program, click on the Help menu on the main
screen.
