Operation, cont’d

PIP 422 and PIP 444 Picture-in-Picture Processors • Operation

3-14

Input 1

Input 2

Input 3

Input 4

1

2

3

4

5

6

7

8

9

11

12

20

13

14

18

19

17

15

16

10

Input 1

Input 1

Input 1

Input 1

Input 1

Input 1

Input 1

Input 1

Input 1

Input 1

Input 1

Input 1

Input 1

Input 2

Input 4

Input 1

Input 1

Input 2

Input 3

Input 1

Input 2

Input 2

Input 2

Input 2

Input 2

Input 2

Input 2

Input 2

Input 2

Input 2

Input 2

Input 2

Input 2

Input 3

Input 3

Input 4

Input 3

Input 3

Input 3

Input 3

Input 3

Input 3

Input 3

Input 3

Input 3

Input 3

Input 4

Input 4

Input 4

Input 4

Input 4

Input 4

Input 4

Input 4

Input 4

Input 2

Input 3

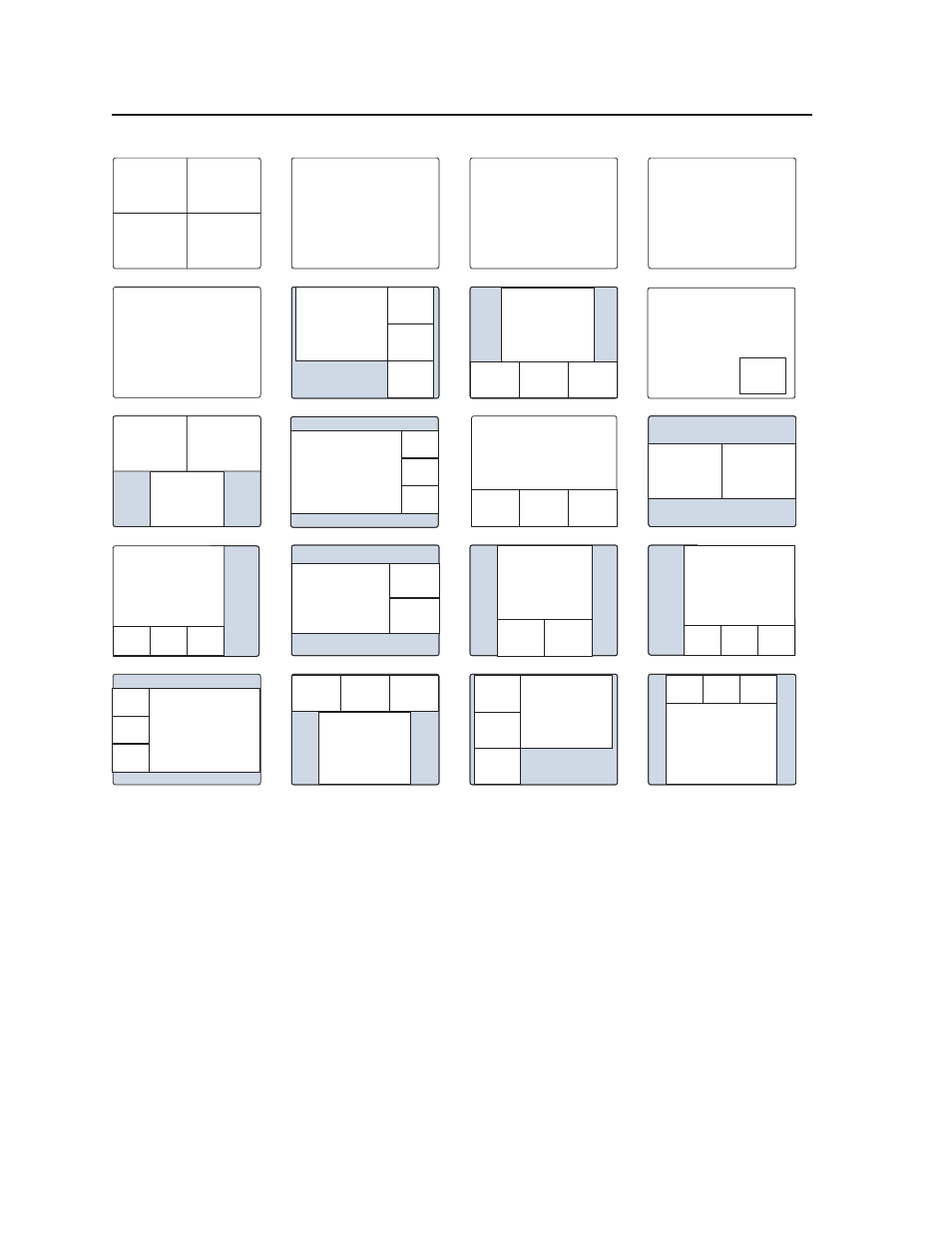

Figure 3-12 — PIP 444 default window presets

Recall a preset

1

.

Press the Preset button. The Recall menu appears on the LCD.

2

.

Turn either Adjust knob to select the preset you want to recall.

3

.

Press the Enter button.

Save the current window settings as a preset

1

.

Press and hold the Preset button for 2 seconds. The Save menu appears on
the LCD. Release the Preset button.

2

.

Turn either Adjust knob to select the preset you want to replace.

3

.

Press the Enter button.
