Using the Command and Response Tables
The command and response
table begins on
page 80 .
Symbols used in the
table represent variables in the
command and response fields.
Command and response examples
are shown throughout the table.
With the exception of the audio
input gain and attenuation
commands, the SIS commands are
not case sensitive. The ASCII to
HEX conversion table at right is for
use with the command and response table.
Symbol definitions
] = Carriage return/line feed
} = Carriage return (no line feed)
| = Pipe (can be used interchangeably with the
}
character)
• = space
E
= Escape key
W = Can be used interchangeable with the E character
X! = Input number (for tie) 00 – (maximum number of inputs for your model) (00 = untied)
X@ = Output number 01 – (maximum number of outputs for your model)
X# = TP input number 01 – (maximum number of TP inputs for your model)
X$ = Audio/RS-232 wire pair input type 0 = audio 1 = RS-232
X% = RS-232 output insert port MTPX Plus 128, 168, 816, 1616 01 – 08
MTPX Plus 1632, 3216, 3232 01 – 16
X^ = RS-232 output insert status 0 = disabled 1 = enabled
X& = Input signal level/peaking range 000 – 255
X* = Input number 01 – (maximum number of inputs for your model)
X( = Threshold 0 = outside of threshold 1 = within threshold
X1) = Skew adjustment range 00 – 31 (each step = 2ns)
X1! = Video plane 0 = red 2 = blue
1 = green
X1@ = Pre-peakable output number MTPX Plus 168 01 – 04
MTPX Plus 128, 816, 1616, 3216 01 – 08
MTPX Plus 1632, 3232 01 – 16
X1# = Mute, pre-peaking, Lock mode, power supply 0 = off/mode 0/not OK 2 = mode 2
1 = on/mode 1/OK
X1$ = DDC value (EDID): 00 = Automatic 18 = 1366 x 768 @ 60 Hz
01 = Output 1 19 = 1400 x 1050 @ 50 Hz
02 = Output 2 20 = 1400 x 1050 @ 60 Hz
03 = 800 x 600 @ 50Hz 21 = 1440 X 900 @ 50 Hz
04 = 800 x 600 @ 60 Hz 22 = 1440 x 900 @ 60 Hz
05 = 1024 x 768 @ 50 Hz 23 = 1600 x 1200 @ 50 Hz
06 = 1024 x 768 @ 60 Hz 24 = 1600 x 1200 @ 60 Hz
07 = 1280 x 720 @ 50 Hz 25 = 1680 x 1050 @ 50 Hz
08 = 1280 x 720 @ 60 Hz 26 = 1680 x 1050 @ 60 Hz
09 = 1280 x 768 @ 50 Hz 27 = 1920 x 1080 @ 50 Hz
10 = 1280 x 768 @ 60 Hz 28 = 1920 x 1080 @ 60 Hz
11 = 1280 x 800 @ 50 Hz 29 = 1920 x 1200 @ 50 Hz
12 = 1280 x 800 @ 60 Hz 30 = 1920 x 1200 @ 60 Hz
13 = 1280 x 1024 @ 50 Hz 31 = User defined
14 = 1280 x 1024 @ 60 Hz 32 = User defined
15 = 1360 x 768 @ 50 Hz 33 = User defined
16 = 1360 x 768 @ 60 Hz 34 = User defined
17 = 1366 x 768 @ 50 Hz

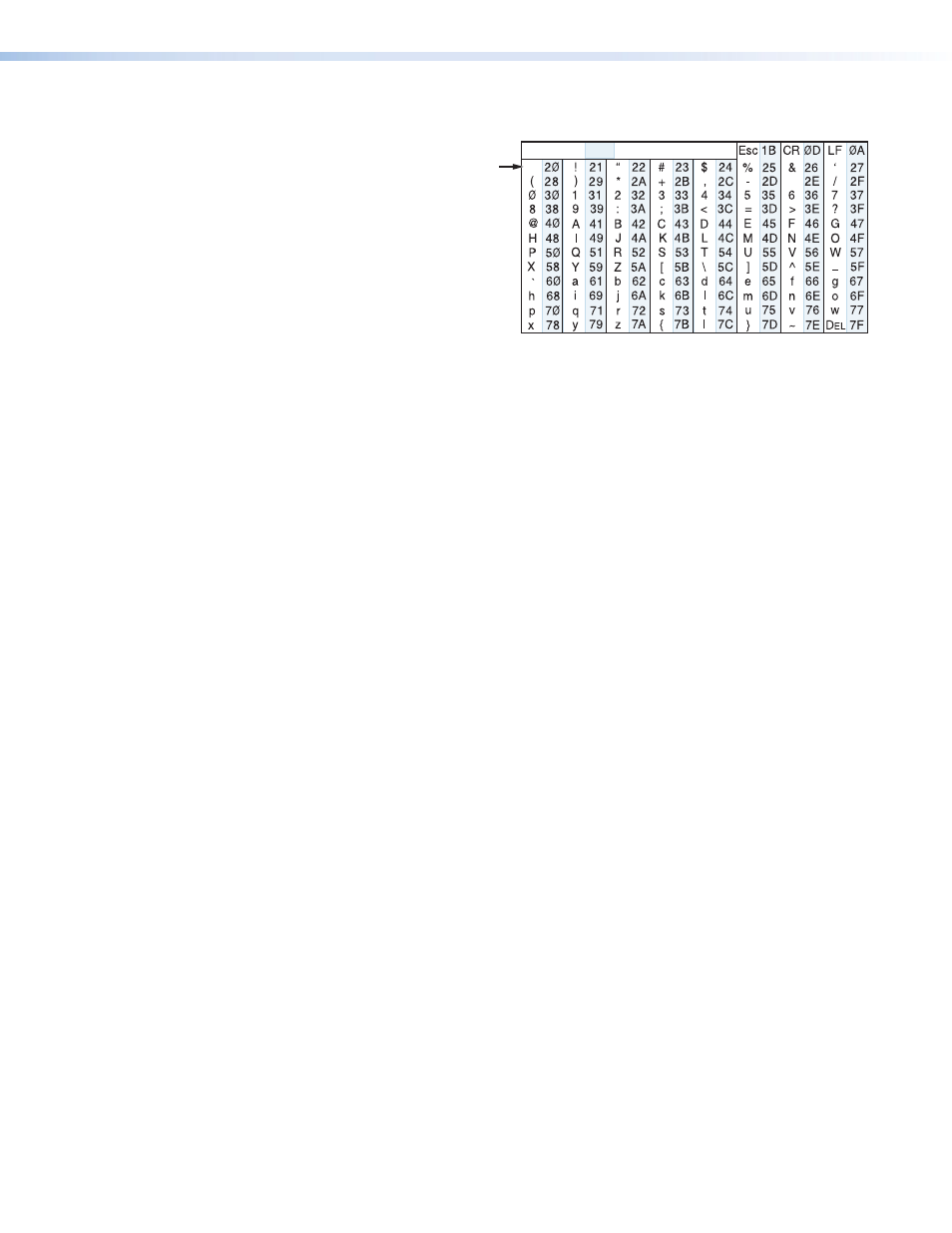

ASCII to Hex Conversion Table
•
Space
MTPX Plus Series • Programming Guide 78
