Starting and using the program
1. To run the Matrix Switchers Control Program, click
Start > Programs > Extron Electronics > Matrix Switchers >
MATRIX Switcher + Control Pgm .

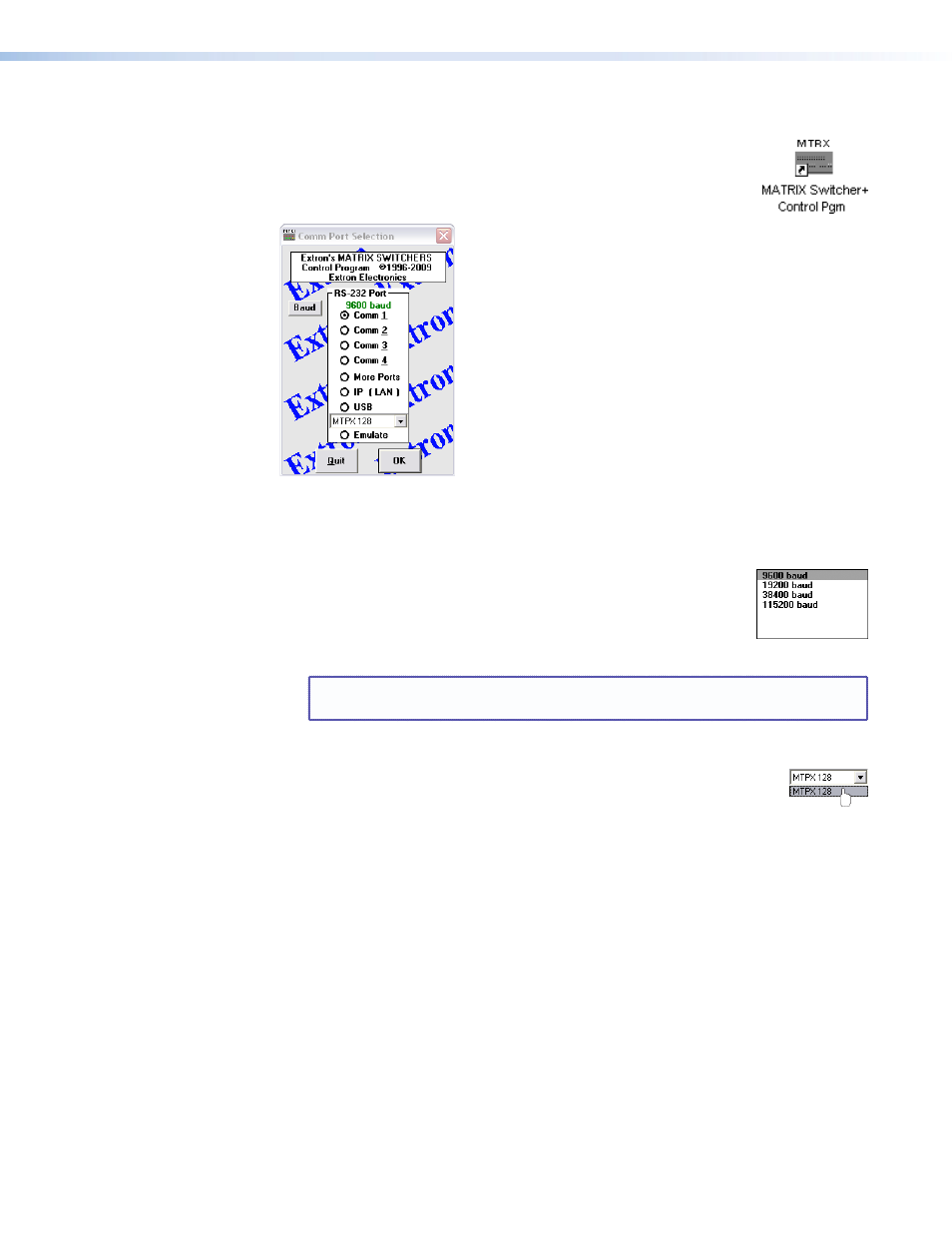

The Comm Port Selection window (figure 50) appears.
Figure 50. Comm Port Selection Window
2. Choose either the Comm port that is connected to the rear panel
Remote port or front panel Config (RS-232) port,
IP [LAN] , USB , or Emulate .
• If you selected a comm port, check the baud rate displayed in
the comm port selection window. If you need to change the baud
rate, click on the
Baud button and double-click on the desired
baud rate.
Available rates are 9600, 19200, 38400, and 115200. The default is 9600.
NOTE: You may need to repeat these steps if you subsequently connect the
switcher to a different USB port on the same computer..
Click OK and proceed to step 4.
• If you selected USB , select the MTPX 128 in the drop-down
window and click OK. Proceed to step 4.
• If you selected IP [LAN] , click OK and proceed to step 3.
• If you selected Emulate , click OK and see “ Using Emulation mode ” on page 119.
