Creating a tie
Select and switch an input as follows:
1. Click the Video Only , Audio Only , or Video & Audio button to select video, audio,
or both for switching (audio follow or audio breakaway). Each mouse click on a button
toggles the other two buttons off.
2. Move the mouse over the matrix of input and output selection buttons. Click a button
to create a pending tie (if a tie does not exist) or pending untie (if a tie exists) of the
input and output associated with that button. A “
P ” (for pending) appears in the
button.
NOTES: • If you lose track of the input and output associated with a specific
button, let the mouse rest over one of the tie buttons for a moment. A
field pops up (as shown on figure 84) that identifies the input and output
for that button.
• To tie an input to all outputs, click that input number.
3. Click the Take button to make the configuration changes or the Cancel button to
abandon the configuration changes.

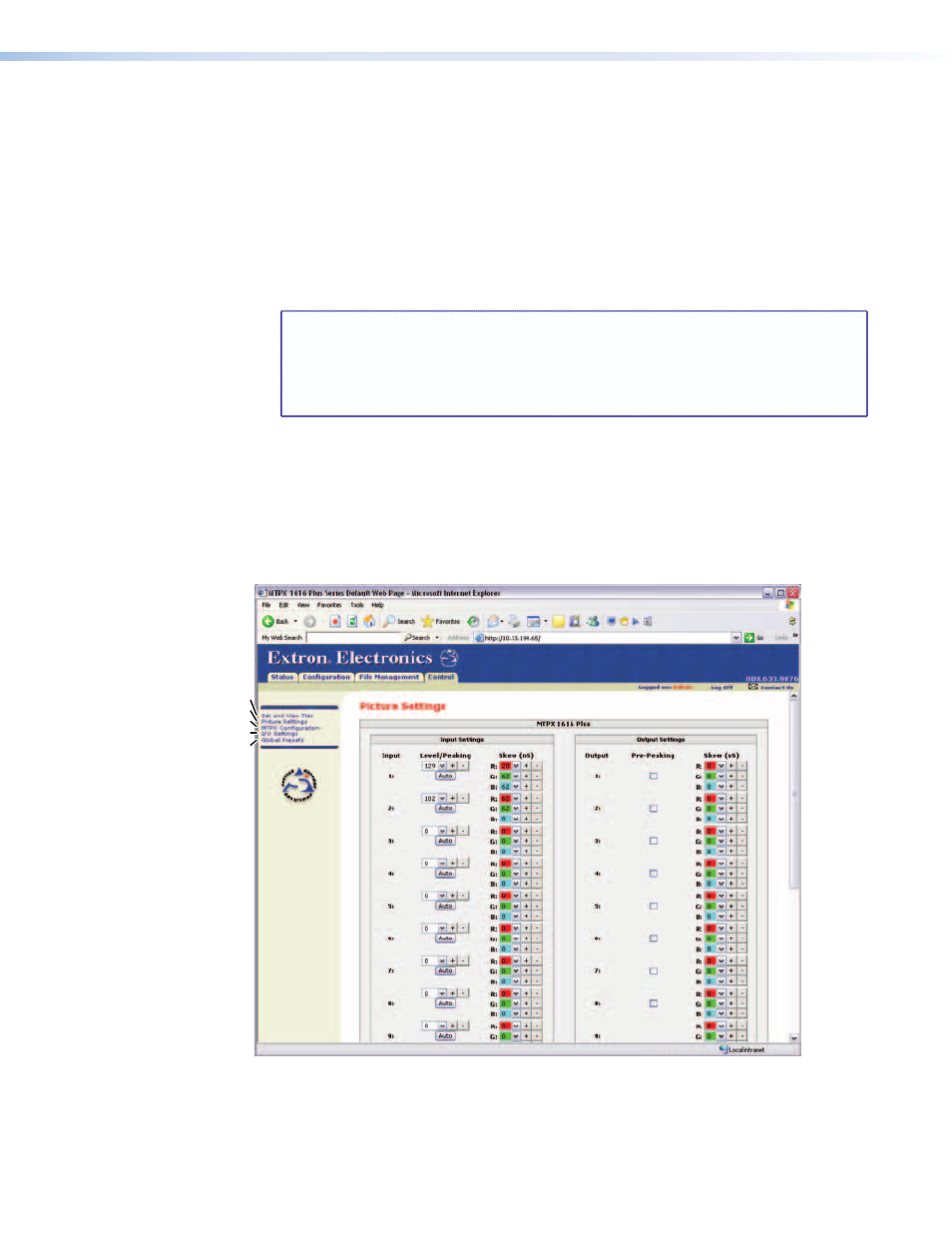

Picture Settings Page
The Picture Settings page provides a way to set the input level/peaking, the output pre-
peaking, and the input and output skew settings. Access the Picture Settings page (see
figure 85) by clicking the
Picture Settings link on the Control page.
Refresh
Set and View Ties
I/O Settings
Global Presets
MTPX Configuration
Figure 85. Picture Settings Page
MTPX Plus Series • HTML Operation 138
