Status Tab
System Status Page
The System Status page (see
) provides an overall view of the status of the matrix
switcher, including individual voltages, and the serial port status. The System Status page is
the default page that the switcher downloads when you connect to the switcher. Access the
System Status page from other pages by clicking the Status tab.
Refresh

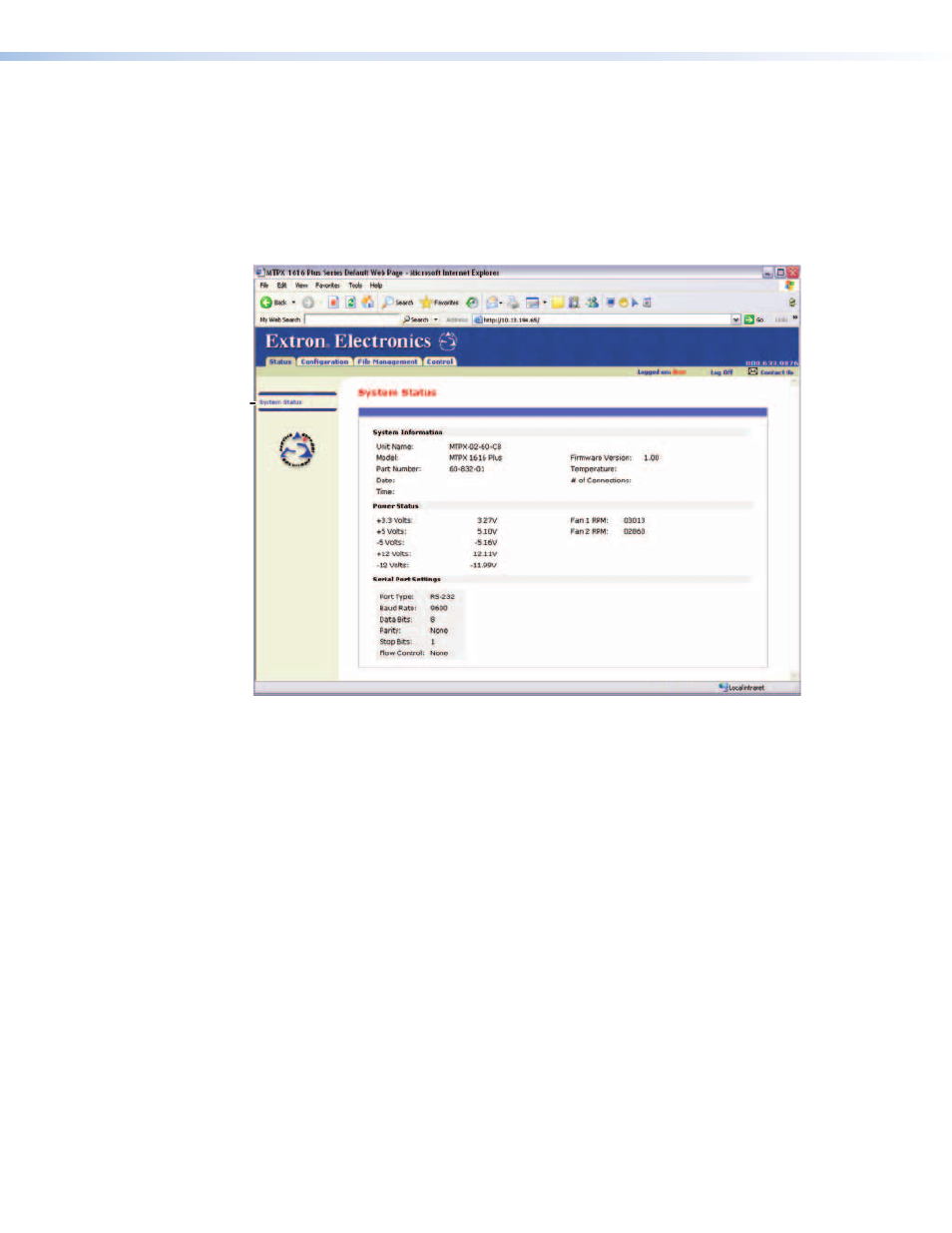

Figure 77.
System Status Page
The status web page periodically updates itself to reflect the latest status of the switcher
components. If a value changes, the display shows the change in status the next time it
updates.
MTPX Plus Series • HTML Operation 128
