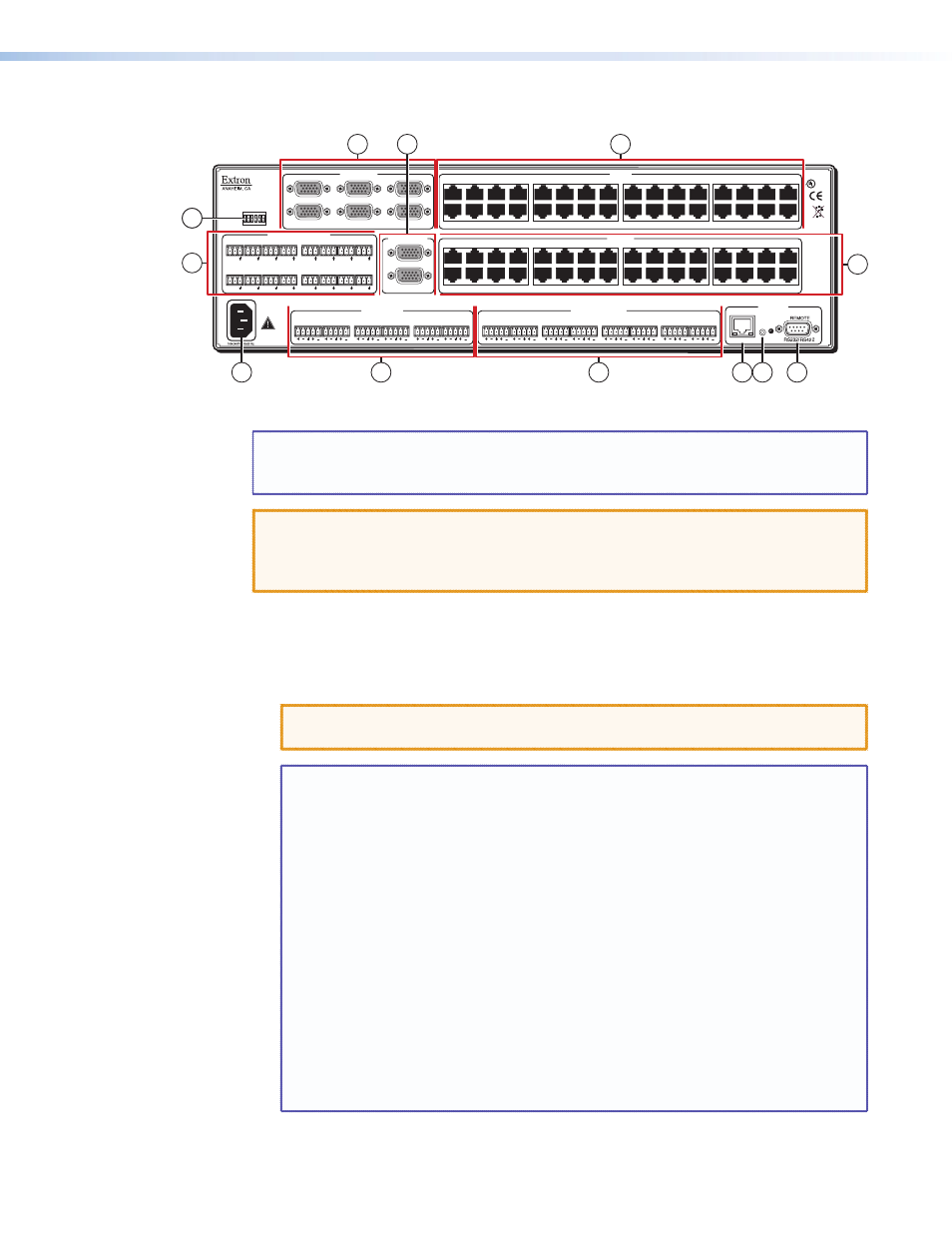

Figure 4 shows the rear panel of the MTPX Plus 3232.
ETHERNET
ACT
INPUT
SELECT
LOCAL
RJ-45
LOCAL INPUTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
2
1
3
4
5
6
RS-232 OUTPUT INSERTION
LOCAL OUTPUTS
OUTPUTS
INPUTS
CONTROL
MONO AUDIO OUTPUTS
AUDIO INPUTS
LINK
RESET
L
R
1
L
R
2
L
R
3
L
R
4
L
R
5
L
R
6
L
R
1
L
R
2
L
R
3
L
R
4
L
R
5
L
R
6
L
R
7
L
R
8
Tx Rx
1
Tx Rx
2
Tx Rx
3
Tx Rx
4
Tx Rx
5
Tx Rx
6
Tx Rx
7
Tx Rx
8
Tx Rx
9
Tx Rx
10
Tx Rx
11
Tx Rx
12
Tx Rx
13
Tx Rx
14
Tx Rx
15
Tx Rx
16
US
LISTED
1T23
I.T.E.
®
3.2A MAX
4
INPUTS
13
11 12
10
4
2
1
7
3
8
5
3.2A MAX
6
Figure 4.
MTPX Plus 3232 Twisted Pair Matrix Switcher
NOTE: The MTPX Plus 1632 and MTPX Plus 3216 are housed in the same 3U enclosure,
but have fewer input connectors (16 x 32 matrix) or output connectors
(32 x 16 matrix) to accommodate their smaller matrix sizes.
CAUTIONS:
•
Use Electrostatic discharge (ESD) precautions (that is, be electrically
grounded) when making connections. Electrostatic discharge can damage
equipment, even if you cannot feel, see, or hear it.
•
Remove system power before making any connections.
Signal Inputs
a
Inputs (TP) connectors — Connect the TP outputs of compatible MTP or VTT
transmitters to these RJ-45 female connectors.
CAUTION: Do not connect this device to a computer data or telecommunications
network.
NOTES:
•
Configure the switcher for the appropriate content on the audio/RS-232
wire pair (pins 3 and 6) for each TP input (see “
“ in the “Operation” section). You can also use
” section), the Matrix
Switchers Control Program (see the “
“ section), or the
HTML pages (see the “
•
For best results, use a minimum cable length of at least 25 feet (7.5 m)
between the transmitter and the MTPX input and between the MTPX
output and the transmitter.
•
RJ-45 termination with CAT 5, CAT 5e, or CAT 6 cable must comply with
the TIA/EIA T568A or TIA/EIA T568B wiring standards for all connections.
RJ-45 termination with Enhanced Skew-Free A/V UTP cable must comply
with TIA/EIA T568A only.
•
For low resolution MTPs (S-video and composite video) on the TP
inputs, the MTPX Plus audio circuits are compatible only with the newer
generation, mono audio models. See your MTP transmitter/ receiver and
refer to the associated manual to determine which MTP models you have.
