MTPX configuration settings
— Displays the MTPX Configuration Settings window
(see figure 65), which allows you to define the content of the audio/RS-232 input,
enable the RS-232 output inserts, and tailor the output sync.

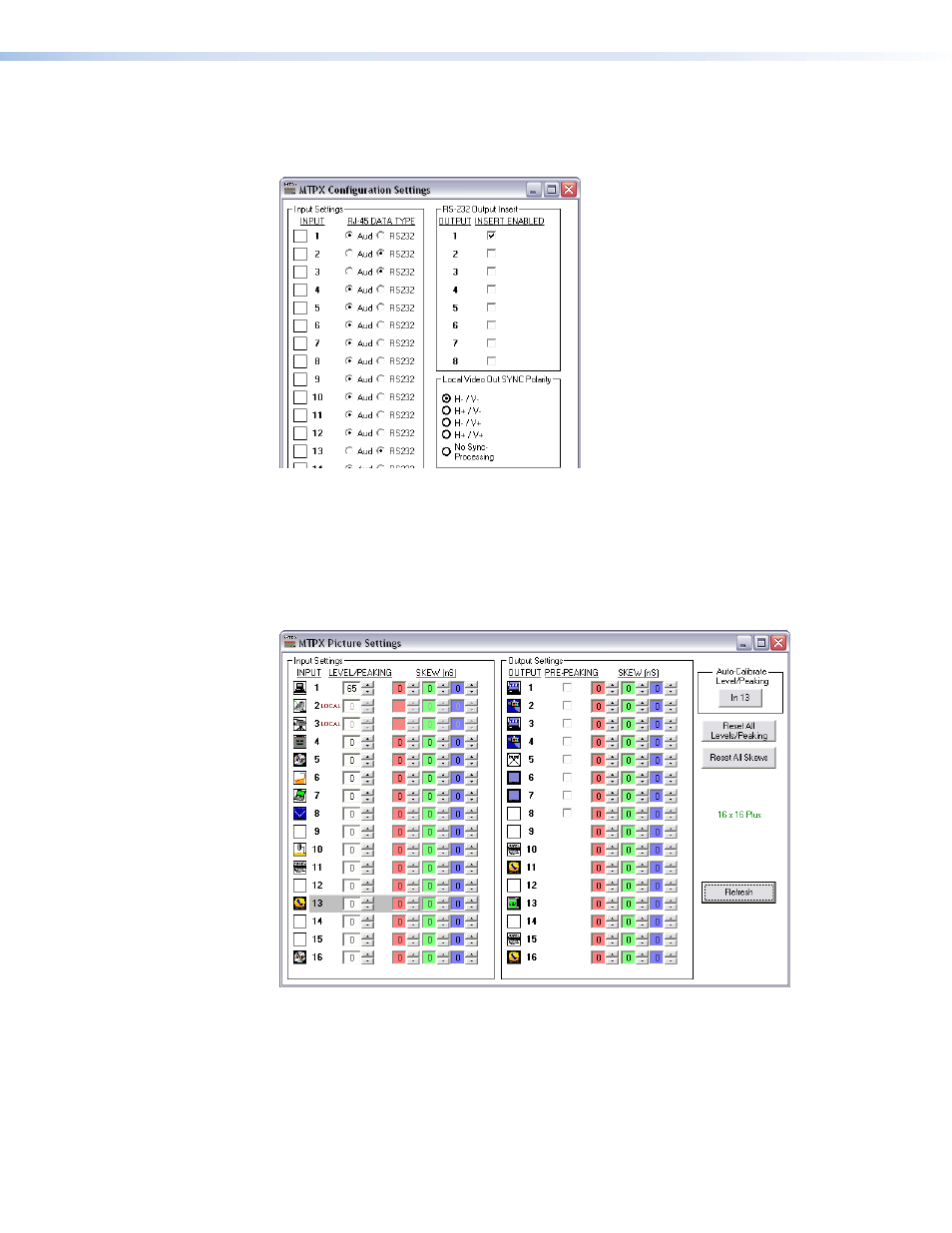

Figure 65.
MTPX Configuration Settings Window
MTPX Picture settings
— Displays the MTPX Picture Settings window (see figure 66),
which allows you to set the input picture adjustments (level/peaking and skew) and the
output picture adjustments (pre-peaking and skew). The Auto-Calibrate Level/Peaking
button lets you use the MTP signal generator (included with most models, optional for
the MTPX Plus 128) to automatically set the input level/peaking (see “
” on page 121).
Figure 66.
MTPX Picture Settings Window
MTPX Plus Series • Matrix Software 115
