Global Presets Page
You can save and recall global presets from the Global presets page (see figure 89). Access
the Global presets page by clicking the
Global Presets link on the left of the Control
page.
Picture Settings
Set and View Ties
I/O Settings
Refresh
MTPX Configuration

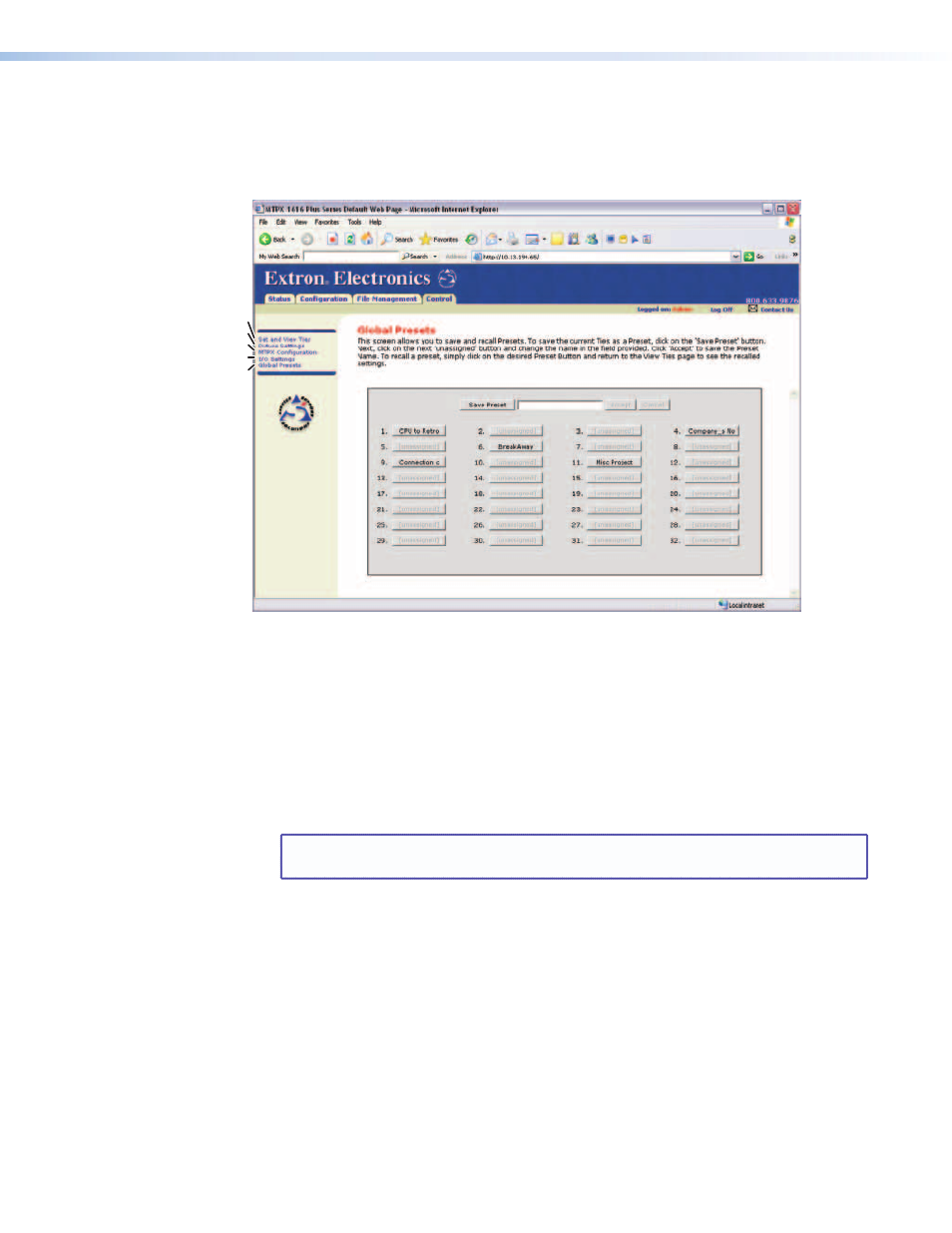

Figure 89. Global Presets Page
Saving a preset
Save the current configuration (configuration 0) as a preset as follows:
1. Click the Save Preset button.
2. Select the desired preset by clicking on one of the presets listed. To create a new preset,
click one of the
[unassigned] buttons. Overwrite an existing preset by clicking an
already existing preset.
3. If desired, type over the current name in the box adjacent to the Save Preset button.
NOTE: The HTML language reserves certain characters for specific functions (see
“ Special Characters “ in the “Programming Guide” section).
If you do not rename an unassigned button, the MTPX Plus switcher names the preset as
Preset {next available number}.
If you do not rename an existing preset when it is overwritten, the MTPX Plus switcher
retains the same name.
4. Click the Accept button.
Recalling a preset
To recall a global preset as the current configuration, click the button associated with the
desired preset.
MTPX Plus Series • HTML Operation 145
