Control tab – Extron Electronics MTPX Plus Series User Guide User Manual
Page 143
Control Tab
User Control page
You can create ties on the User Control page (see figure 84). Access the User Control page
by clicking the
Control
tab.
Picture Settings
Refresh
I/O Settings
Global Presets
MTPX Configuration

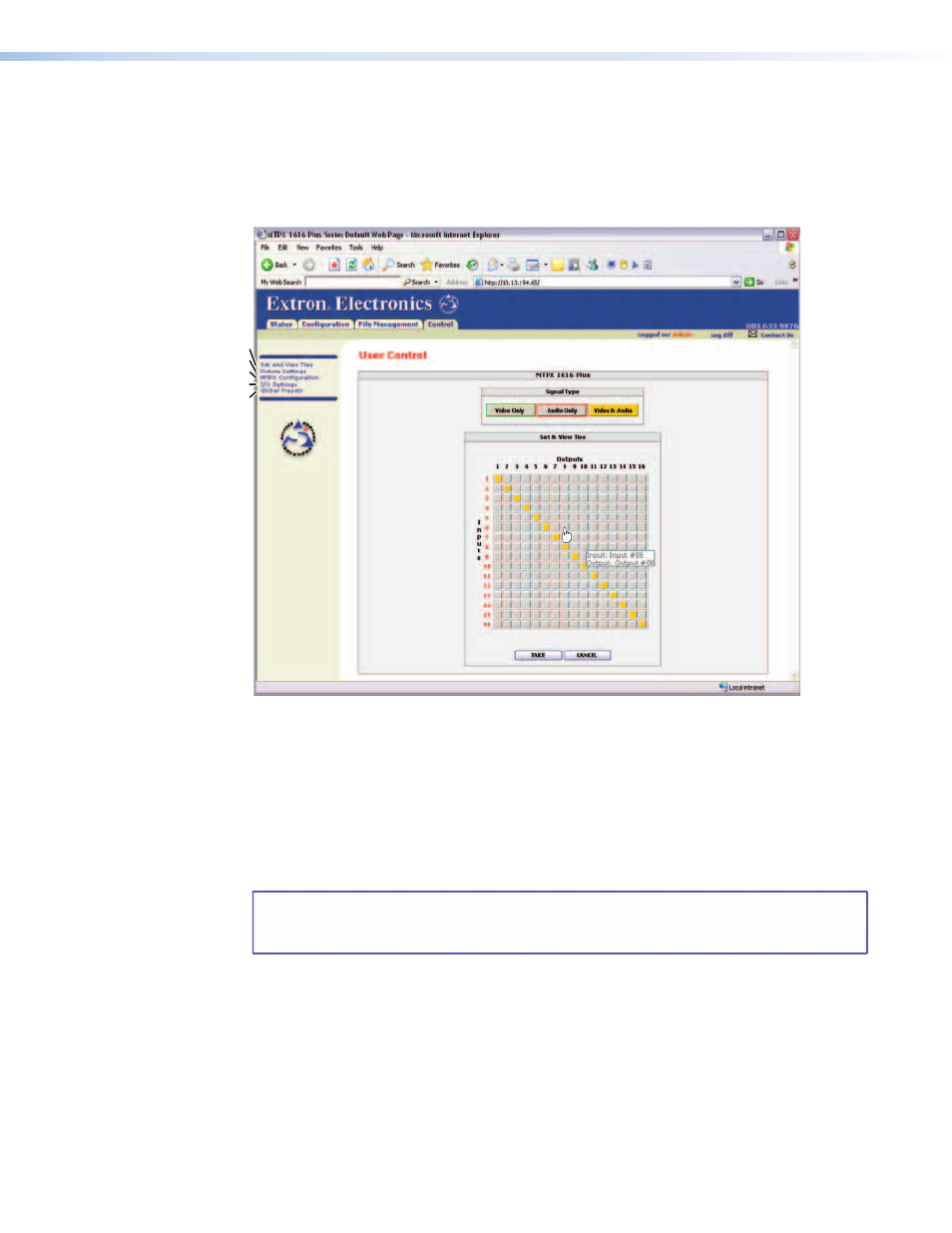

Figure 84.
User Control Ties page
The page consists of a matrix of input (rows) and output (columns) selection buttons of four
different colors:
•
The amber buttons indicate video and audio ties.
•
The green buttons indicate video only ties.
•
The red buttons indicate audio only ties.
•
The gray buttons indicate no ties.
NOTE: If you lose track of the input and output associated with a specific button, let
the mouse pointer rest over a button for a moment. As shown in figure 84, a
field pops up that identifies the input and output for that button.
MTPX Plus Series • HTML Operation 137
