Serial-port- or usb-port-connected firmware upload, E loader window appears (see, Figure 59 – Extron Electronics MTPX Plus Series User Guide User Manual
Page 116: Serial-port or, Usb-port-connected firmware upload
Serial-port- or USB-port-connected firmware upload
10

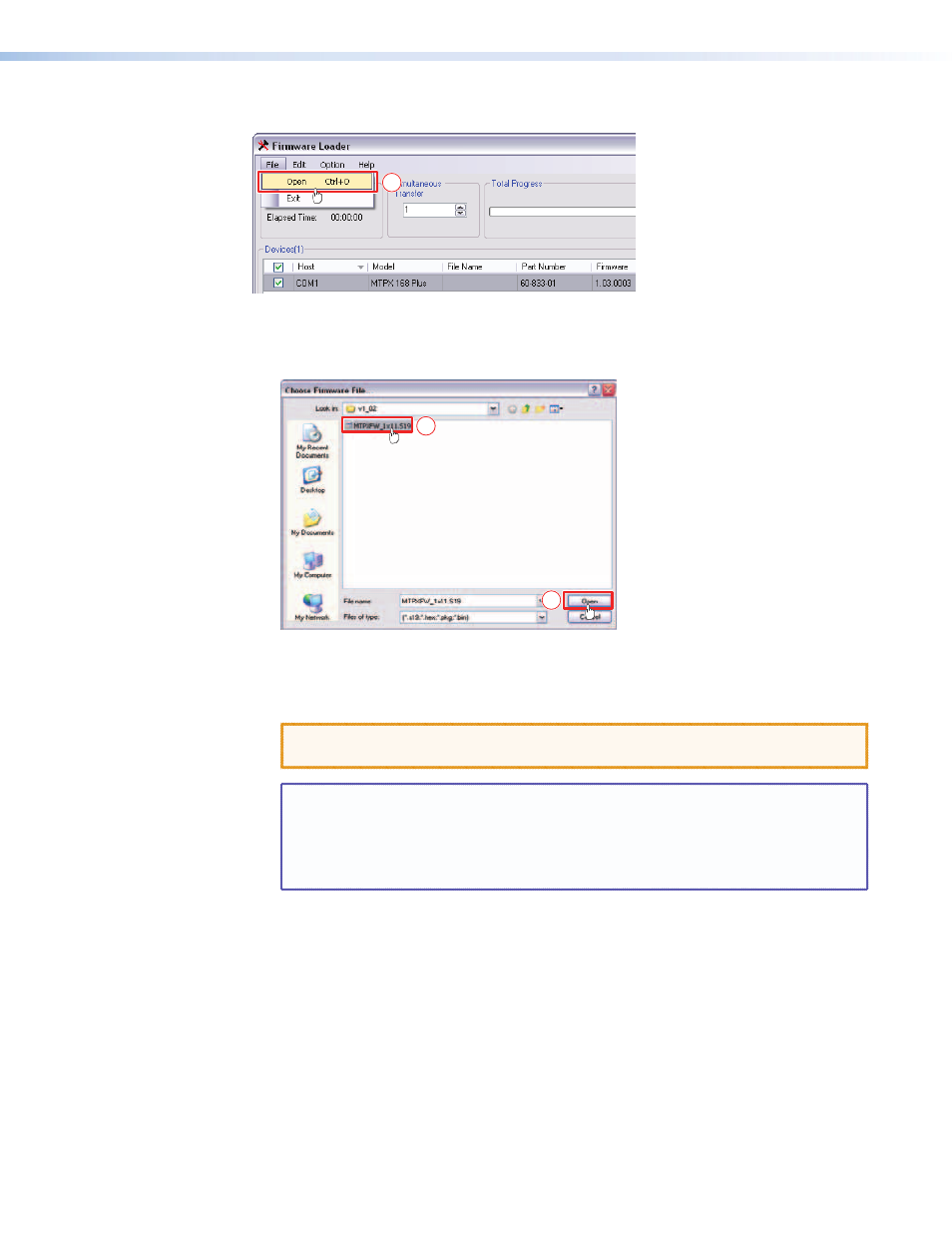

Figure 59.
Extron Firmware Loader Window
10.
Select the MTPX Plus switcher and click
File
>
Open
. The Choose Firmware File screen
appears (see figure 60).
11
11
Figure 60.
Choose Firmware File Window
11.
Navigate to and select the new firmware file. Click
Open
. The Choose Firmware File
window closes.
CAUTION: The firmware file must have an .s19 extension. Other file types can cause
the switcher to stop functioning.
NOTES:
•
When downloaded from the Extron website, the firmware is placed in a
subfolder of
C:\Program Files\Extron\Firmware
.
•
The original factory-installed firmware is permanently available on the
matrix switcher. If the attempted firmware upload fails for any reason, the
switcher reverts to the factory-installed firmware.
MTPX Plus Series • Matrix Software 110
