Mounting instructions – Extron Electronics MTPX Plus Series User Guide User Manual
Page 166
Mounting Instructions
If desired, rack mount the unit as follows:
1.
If feet were installed on the bottom of the transmitter assembly, remove them.
2.
MTPX Plus 128 only — Fasten the optional MBD 149 rack mounting brackets
(part number 70-077-03) to the unit using eight machine screws supplied with the kit
(see figure 97).

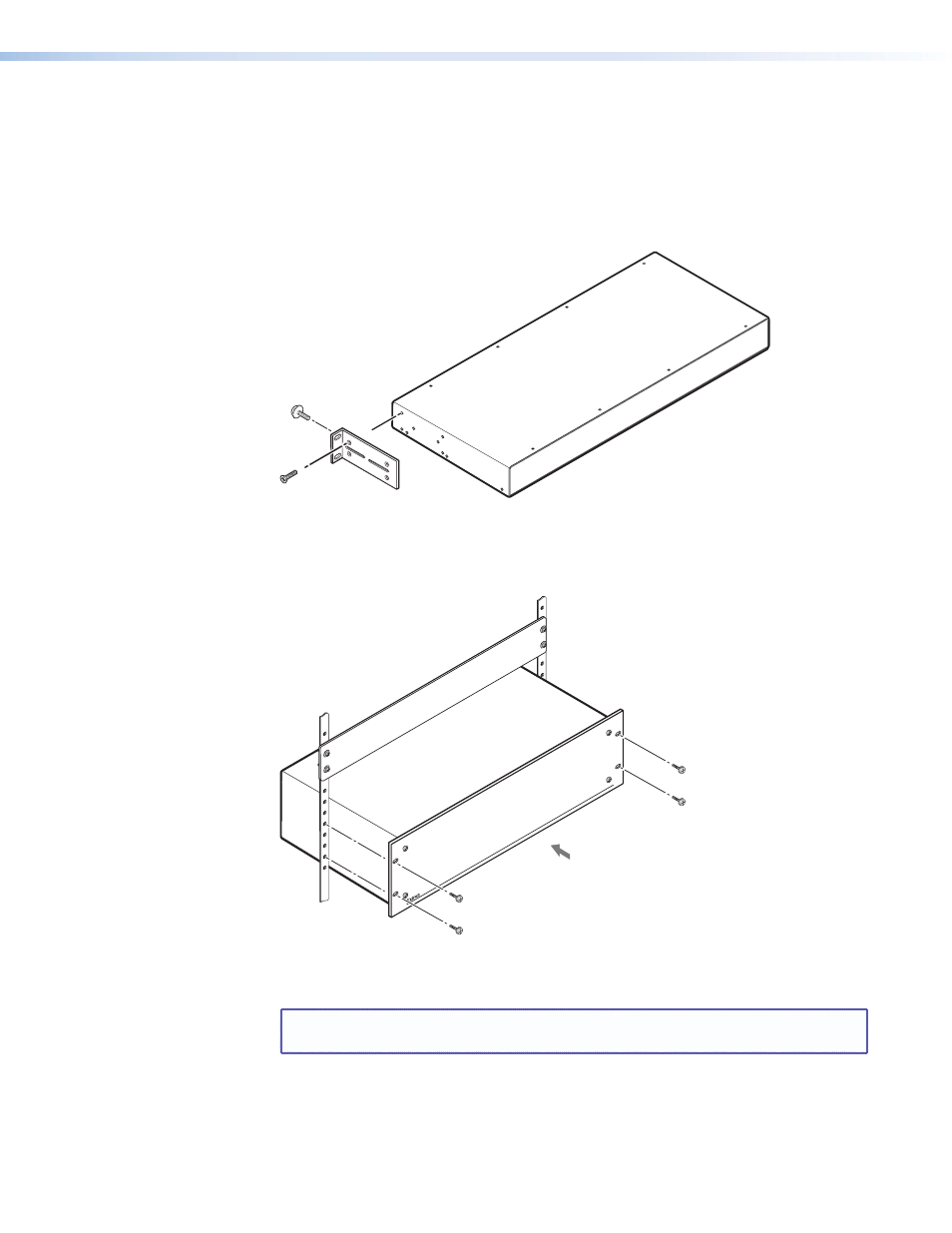

Optional Rack Mounting Bracket
Figure 97.
Attaching the Mounting Brackets
3.
Insert the switcher into the rack, aligning the holes in the mounting flanges with those
in the rack (see figure 98).
Figure 98.
Installing the Switcher in a Rack
4.
Secure the switcher to the rack using the supplied bolts.
NOTE: Extron recommends that you allow 1U of rack space above and below the
switcher for ventilation..
MTPX Plus Series • Reference Information 160
