Matrix Software, cont’d
Fiber Matrix 6400 Switcher • Matrix Software 5-24
Using the Button-Label Generator software
1 . To run the Button-Label Generator program, click Start > Programs >
Extron Electronics
> Button Label Generator > Button Label Generator.

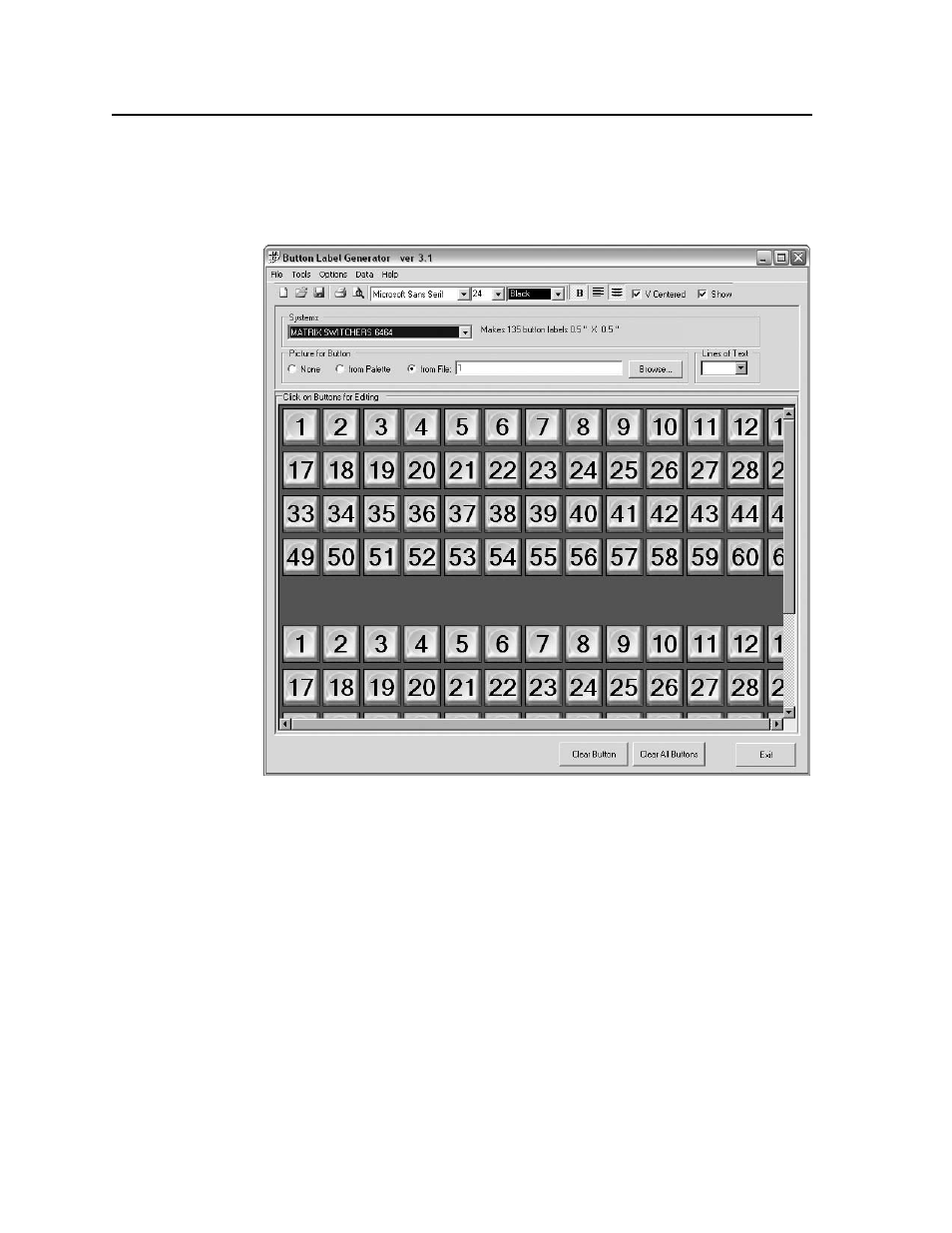

The Button-Label Generator window appears (figure 5-19).
Figure 5-19 — Extron’s Button-Label Generator window
2 . In the Systems selection box, choose the Matrix Switchers 6464 option to
match the button label size and quantities for your Fiber Matrix switcher.
3 . Using standard Windows controls, you can create and print labels that can be
placed in the clear button caps on the front panel of the switcher.
4 . Click the Clear All Buttons button and create new labels as many times as
necessary to make all of the button labels that you need.
To access the help program, click the Help menu.
